VORON ERCF v2 - Motor and Panel Integration

WWW.VORONDESIGN.COM
CAD version: ERCF V2
GEARBOX
A
B
C
2x GT2 Pulley 20-tooth
1x M3 Threaded Insert
2x M3 Washers
2x M3x12mm SHCS
2x M3x16mm SHCS
1x M3x25mm SHCS
2x M3x40mm SHCS
2x Microfit 4-pin**
1x Microfit 5-pin**
1x MR85ZZ Bearing
1x NEMA14 Motor**
A
B
C
D
E
F
G
H
I
J
K
GEARBOX SUB-BOM FOR STEP 3
3939
N
L
1x [a]_Logo_Plate.stl †
1x [a]_Side_Latch_x2.stl †
1x Motor_Arm_NEMA14.stl †**
L
M
N

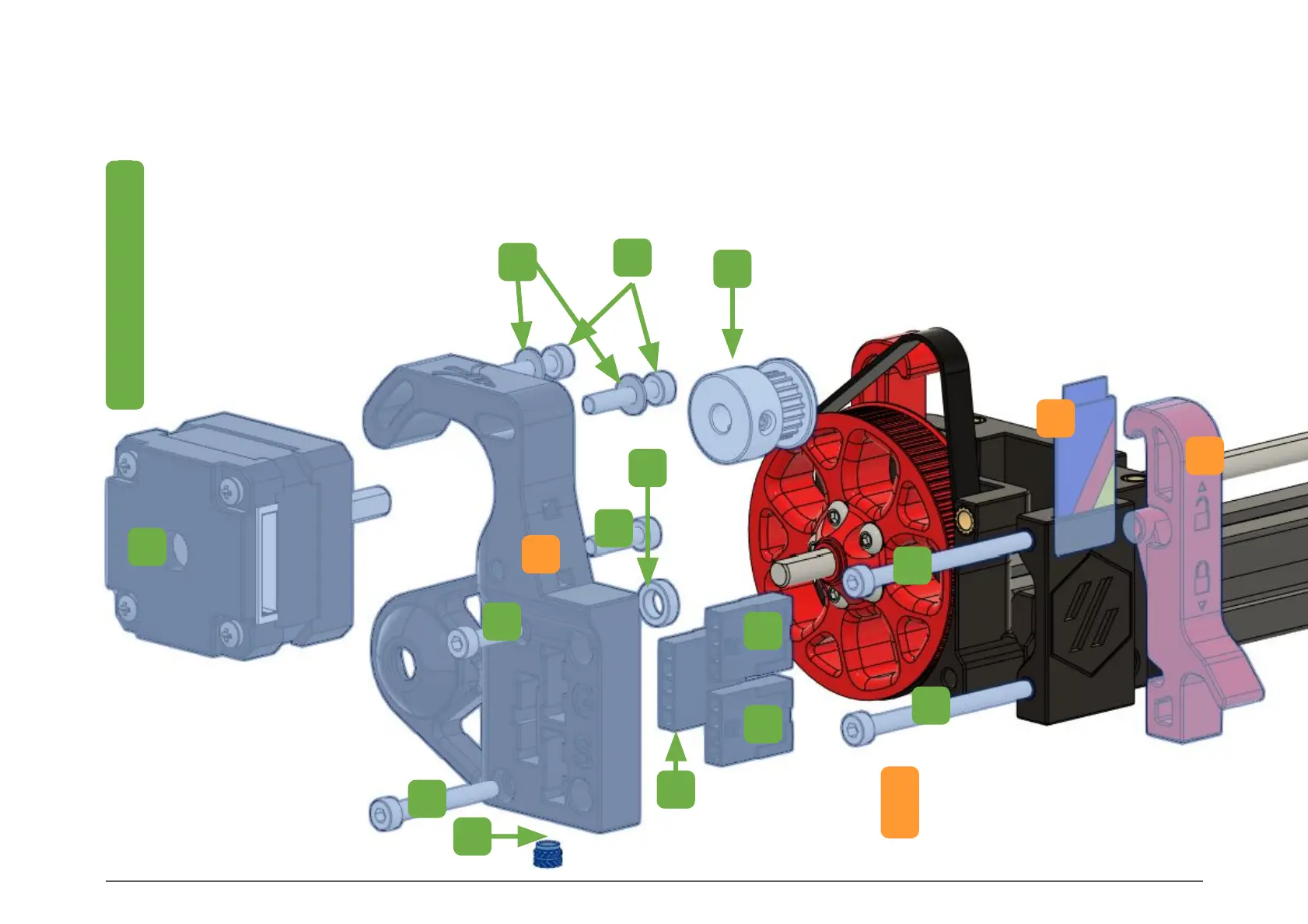

EXPLODED VIEW
D
D
E
F
G
G
H
H
I
G
K
**NOTE: VARIATIONS
There are 4 options for the Motor Arm: NEMA 14 Motor or NEMA 17 Motor, and with or
without Microfit connectors, for local or remote MCUs respectively. We’re showing the NEMA
14 version with the connectors, but suit yourself!
M
