GEARBOX
MOTOR WIRES

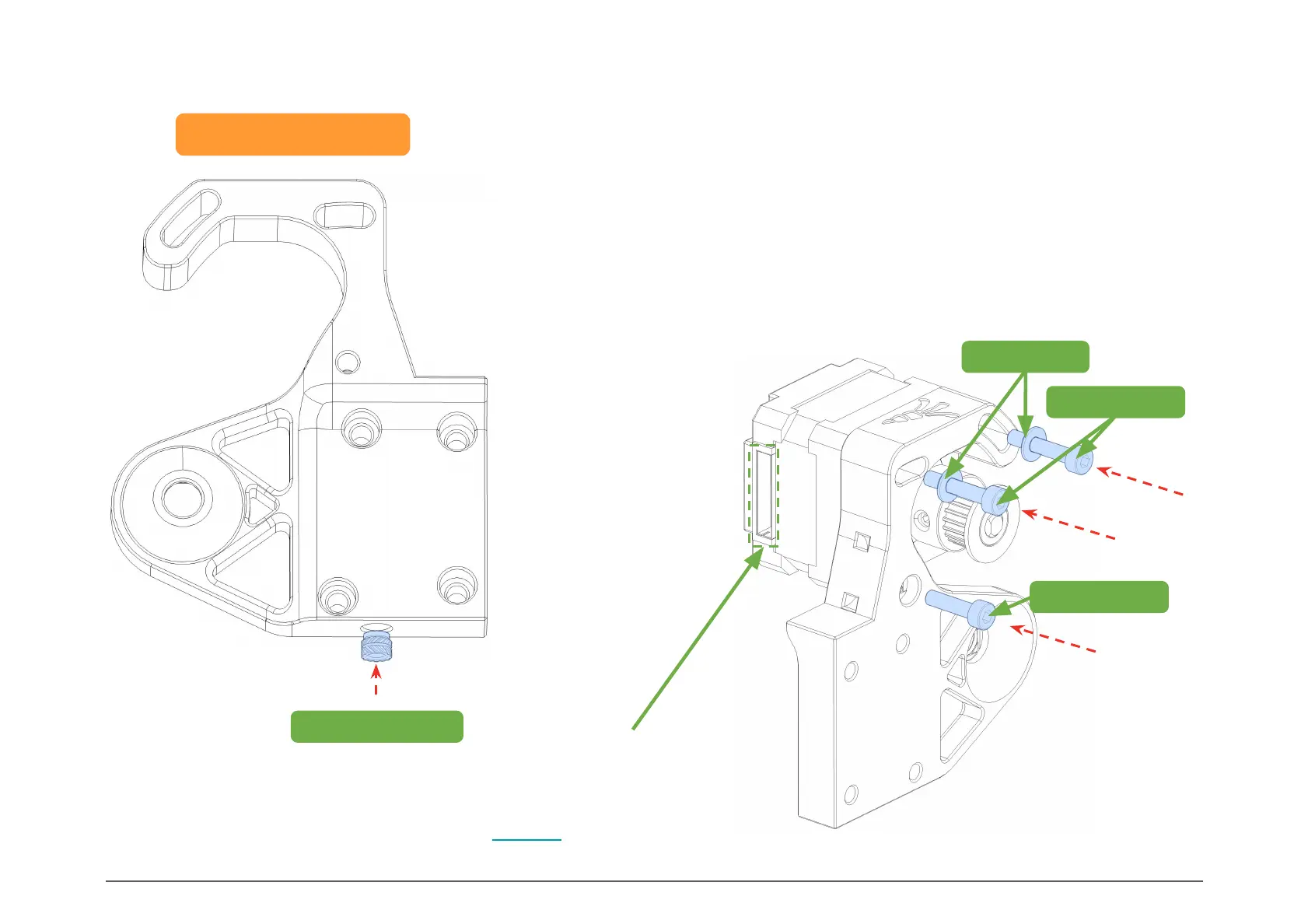

Make sure the wires of the motor
come out this side.
M3x16 SHCS
M3x12 SHCS
M3 Washers
MOTOR ARMS
There is one version for each motor size, NEMA 14 vs NEMA 17.
There are two versions of each of those sizes: One with microfit connectors, for
connecting to an external MCU, and one without connectors for use with external
MCU’s like ERCF Easy BRD, Mellow Fly ERCF BRD, Fystec ERB and BTT MMB.
We will show both versions in this manual. Use what works for you!
MOTOR ARM
M3 Heat Set Insert
Motor_Arm_NEMA14 †
HEAT SET INSERTS
The list of pages with heat set inserts is on Page 15.
