CAD version: ERCF V2
4242

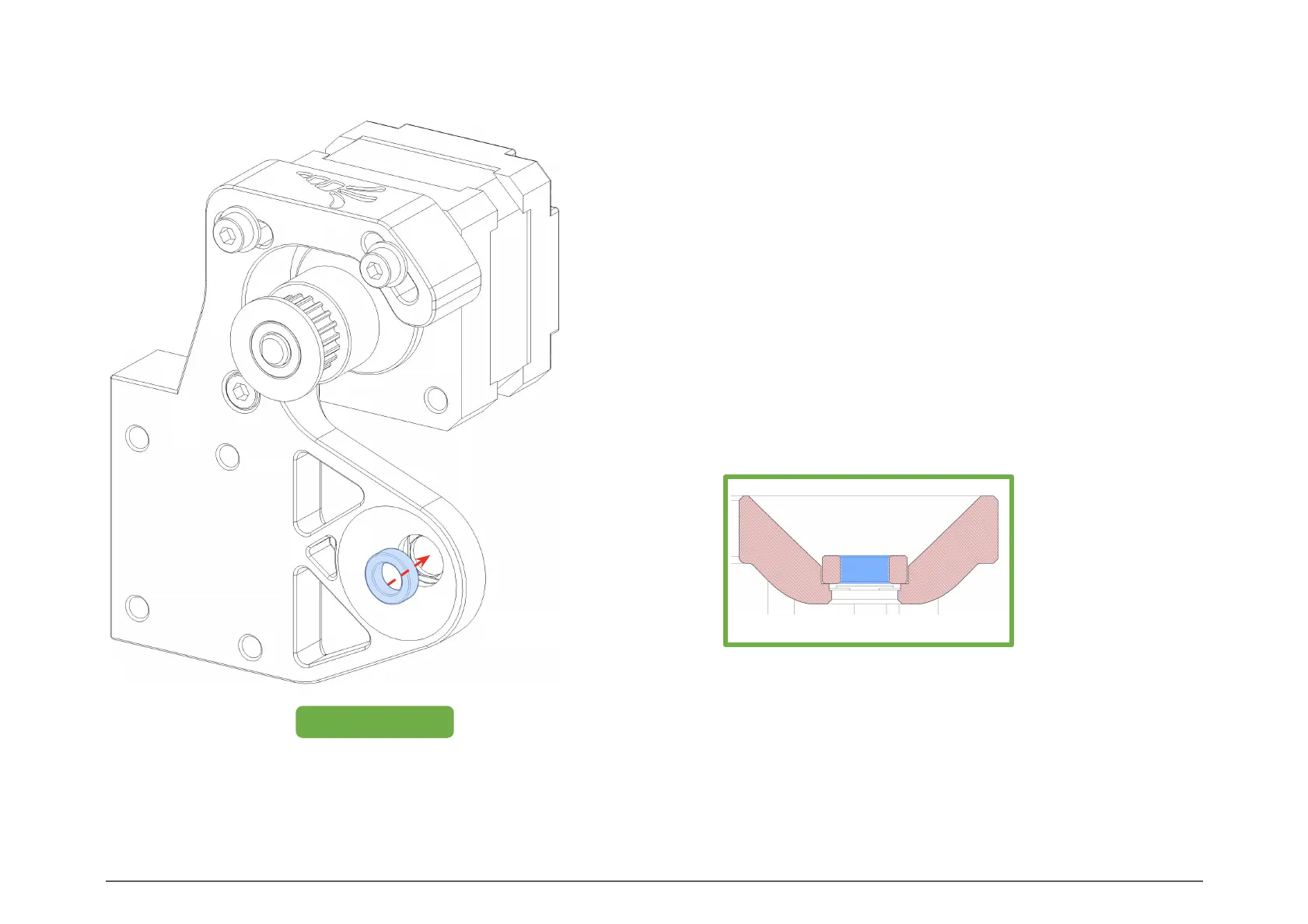

GEARBOX
MR85ZZ Bearing
BEARING POSITION
Once installed, the bearing
will not be flush and will stick
out as shown.
MOTOR ARM
MR85ZZ BEARING INSERTION
If your printed parts are accurate, the bearing should press-fit
easily into place. If you’re having trouble seating the bearings,
make sure the channel is clear of drooping overhangs, and try
pulling the bearing into place with an M5 bolt.
