INSERT THE MICROFIT CONNECTORS

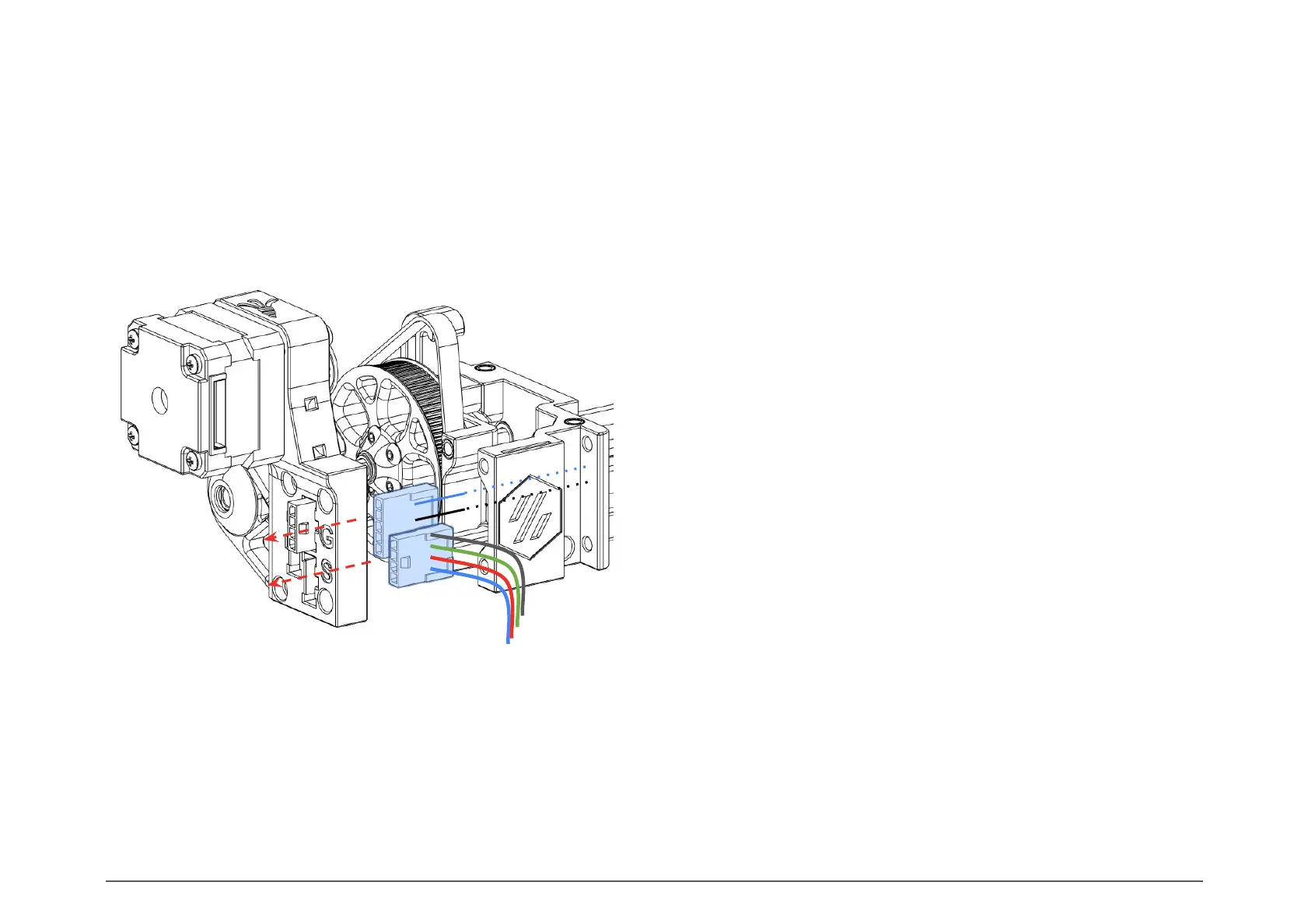

Insert the two microfit connectors from the wire bundles
into their dedicated holes in the Motor_Arm_NEMA14.stl †
(shown) or Motor_Arm_NEMA17.stl † .
For picture clarity, only the microswitch wires are shown
for the 5-pin connector (but the other wires are assumed
present).
4444
GEARBOX (REMOTE MCU)
(OPTIONAL) MICROFIT WIRING
