CAD version: ERCF V2
KNOB
Insert the Knob into the 5mm D-Cut shaft
(beware of the D-Cut position). It shouldn’t
quite touch the motor arm.
Add the bottom M3x40mm screw for the latch
and close the latch.
VORON LOGO
Insert the Logo_Plate into its slot. You can use single or multicolor
options to customize your unit. It can be changed easily once the
ERCF is fully assembled and installed.
4646

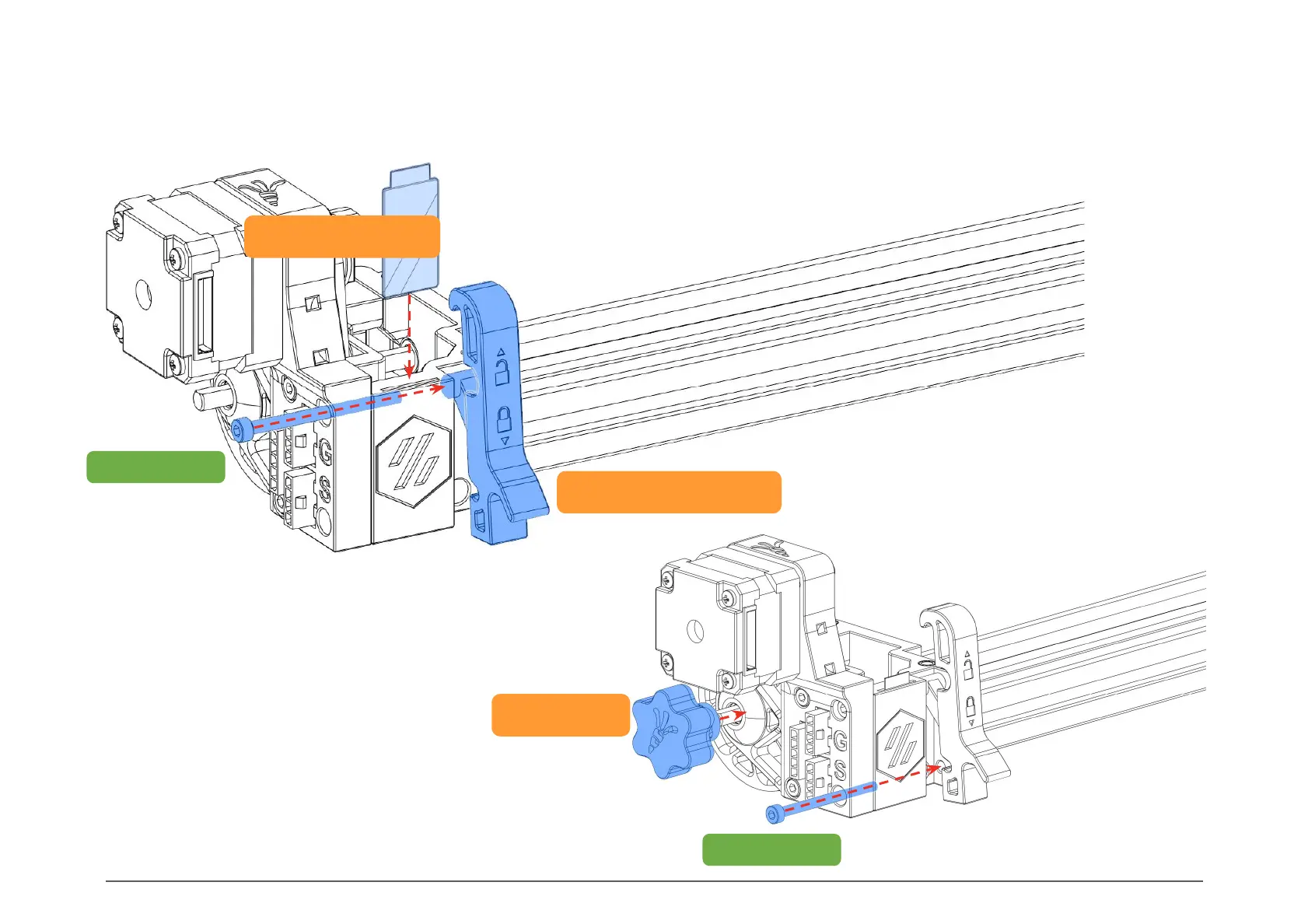

GEARBOX
M3x40 SHCS
[a]_Logo_Plate †
[a]_Knob †
[a]_Side_Latch_x2 †
KNOB & VORON LOGO
M3x40 SHCS
To Next Page
