CAD version: ERCF V2
4949
GEARBOX
M3x8 SHCS
Zip Tie
TOP PANEL

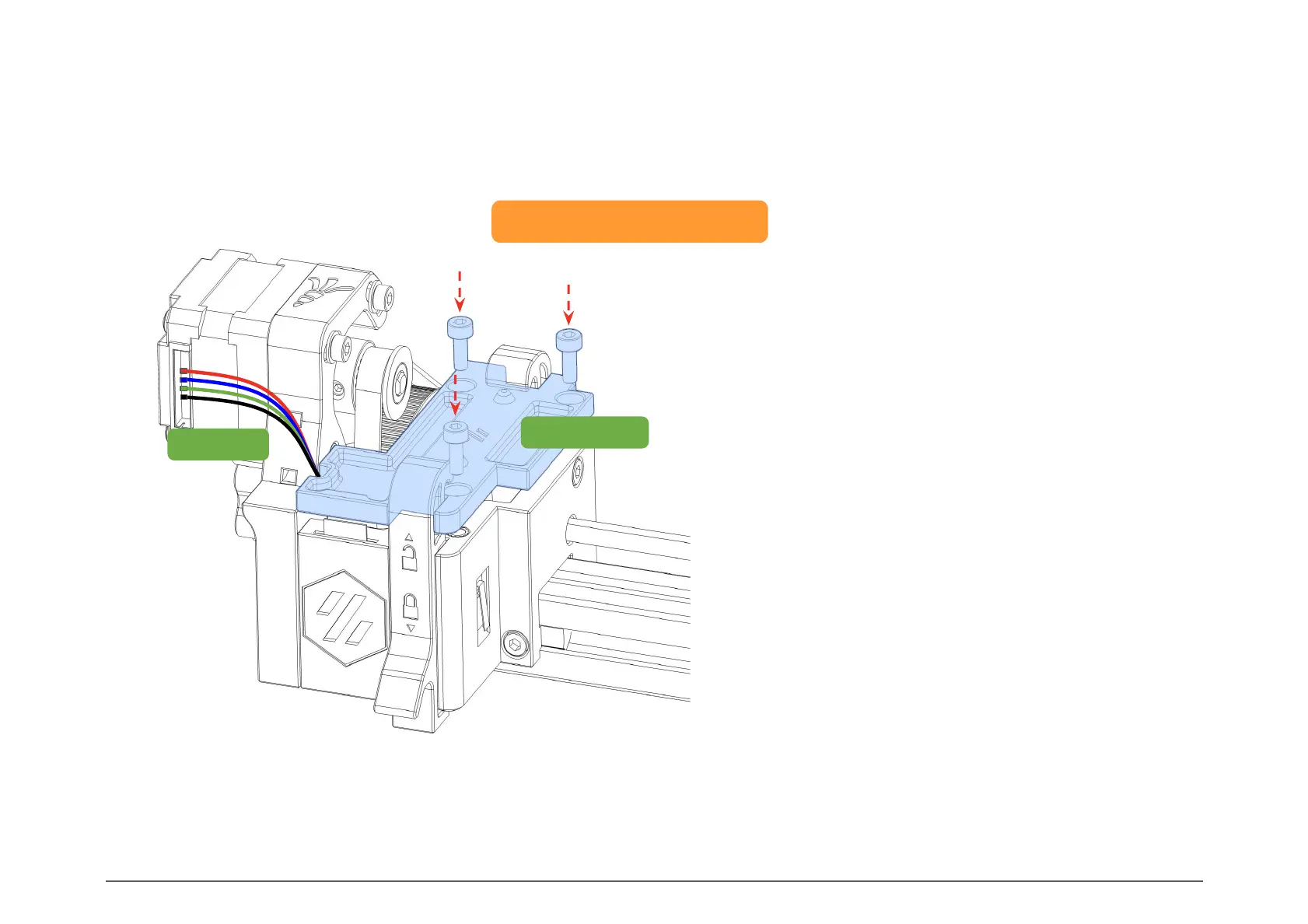

Install the Gear_Box_Top_Panel of the Gearbox
using 3 M3x8mm screws and route motor wiring
through the cutout in the Gear_Box_Top_Panel
and out though the bottom near the 2020
extrusion.
Take care to align the Logo_Plate with the recess
in the bottom of the Gear_Box_Top_Panel.
Secure the motor cable with a zip tie.
TOP PANEL
[a]_Gear_Box_Top_Panel
To Next Page
