CAD version: ERCF V2
5050
GEARBOX
BOTTOM PANEL

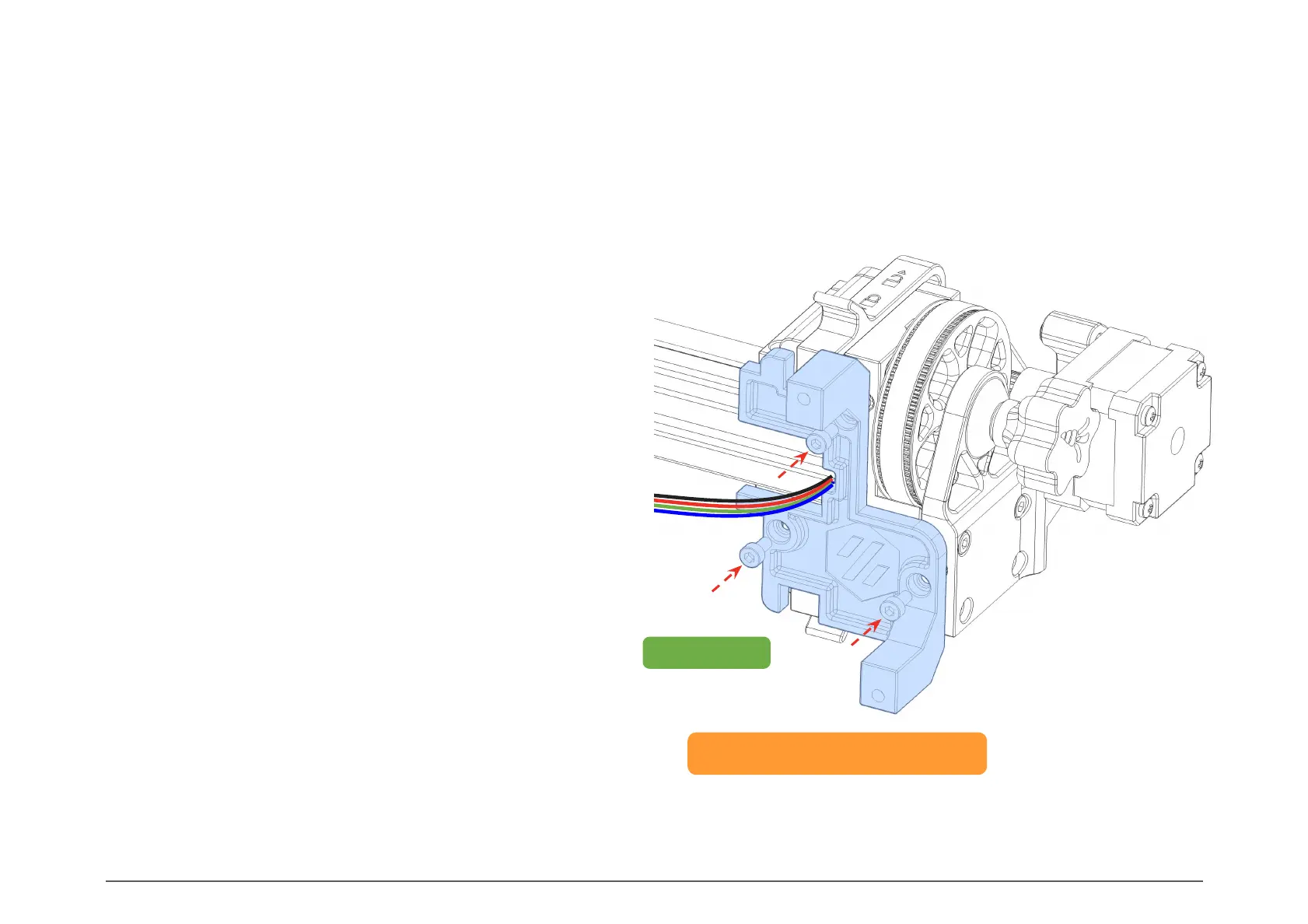

There is a cutout in the Gear_Box_Bottom_Panel
for the wires that need to exit the gearbox. Route
the motor and end stop wires through the cutout
between the 2020 extrusion and the
Gear_Box_Back.
For clarity, only the motor wires are shown but
the end stop wiring is assumed to be present.
After final assembly, make sure the drive shaft
continues to spin freely without any obvious
binding or rubbing.
M3x8 SHCS
BOTTOM PANELS
[a]_Gear_Box_Bottom_Panel
