CAD version: ERCF V2
5858

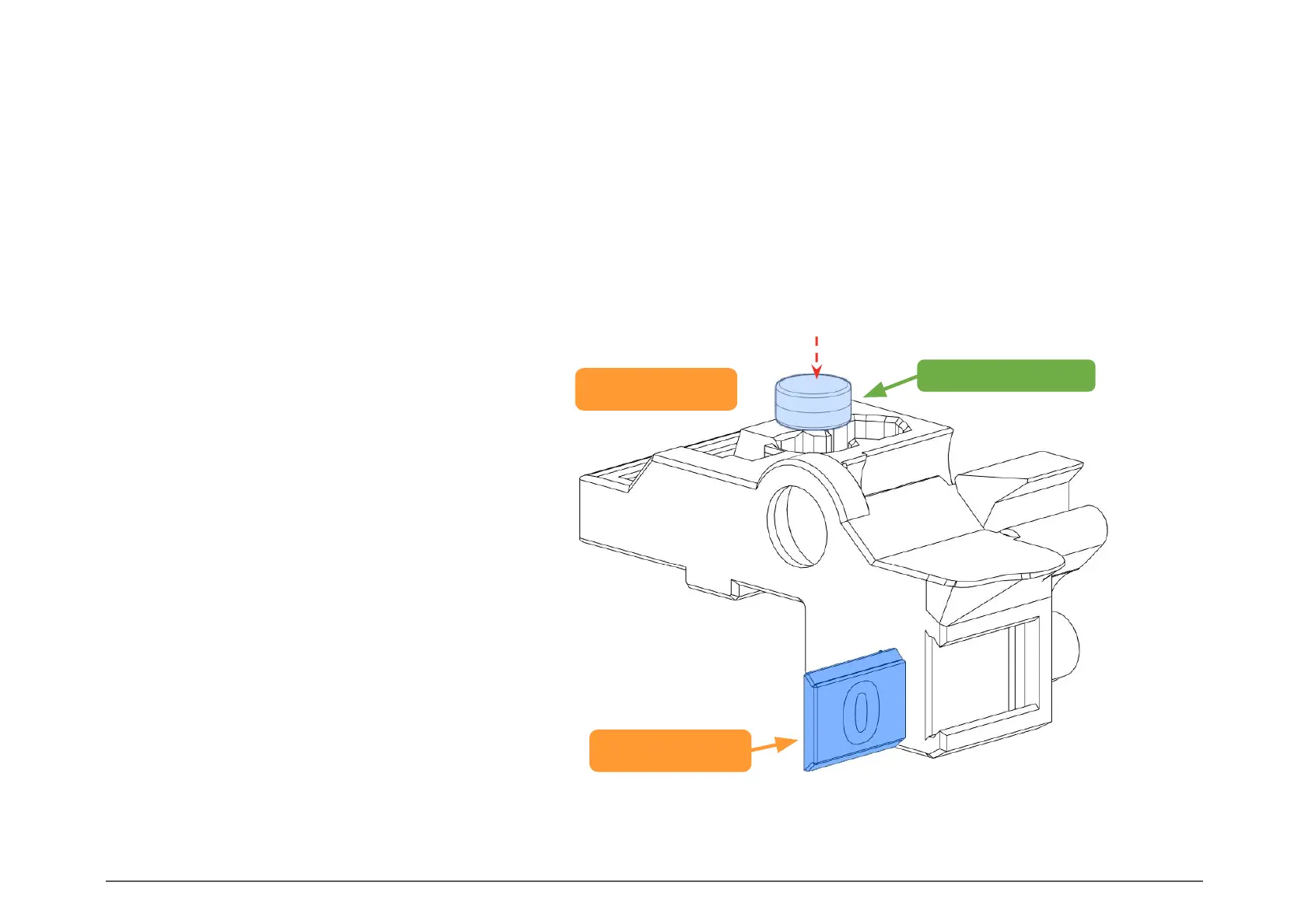

FILAMENT BLOCKS
6x3mm N35 Magnet
Base_xN
Tag_plates_N
MAGNET ORIENTATION
Polarity matters. Install the magnets in
the middle recess so they repel against
the magnets in the Filament_Path, e.g.
same poles facing each other on both
magnets.
It’s recommended you assemble all
Filament_Path and Base parts at the
same time to ensure all of the magnet
polarities match.
If you want to use dual magnets, hold
off installing the second magnet into the
other recess until you finish attaching all
the Bases to the 2020 as we need
access to the bolt.
Repeat for all of the Bases.
