FILAMENT BLOCKS
3mm x 20mm pin
Bondtech Idler Assembly

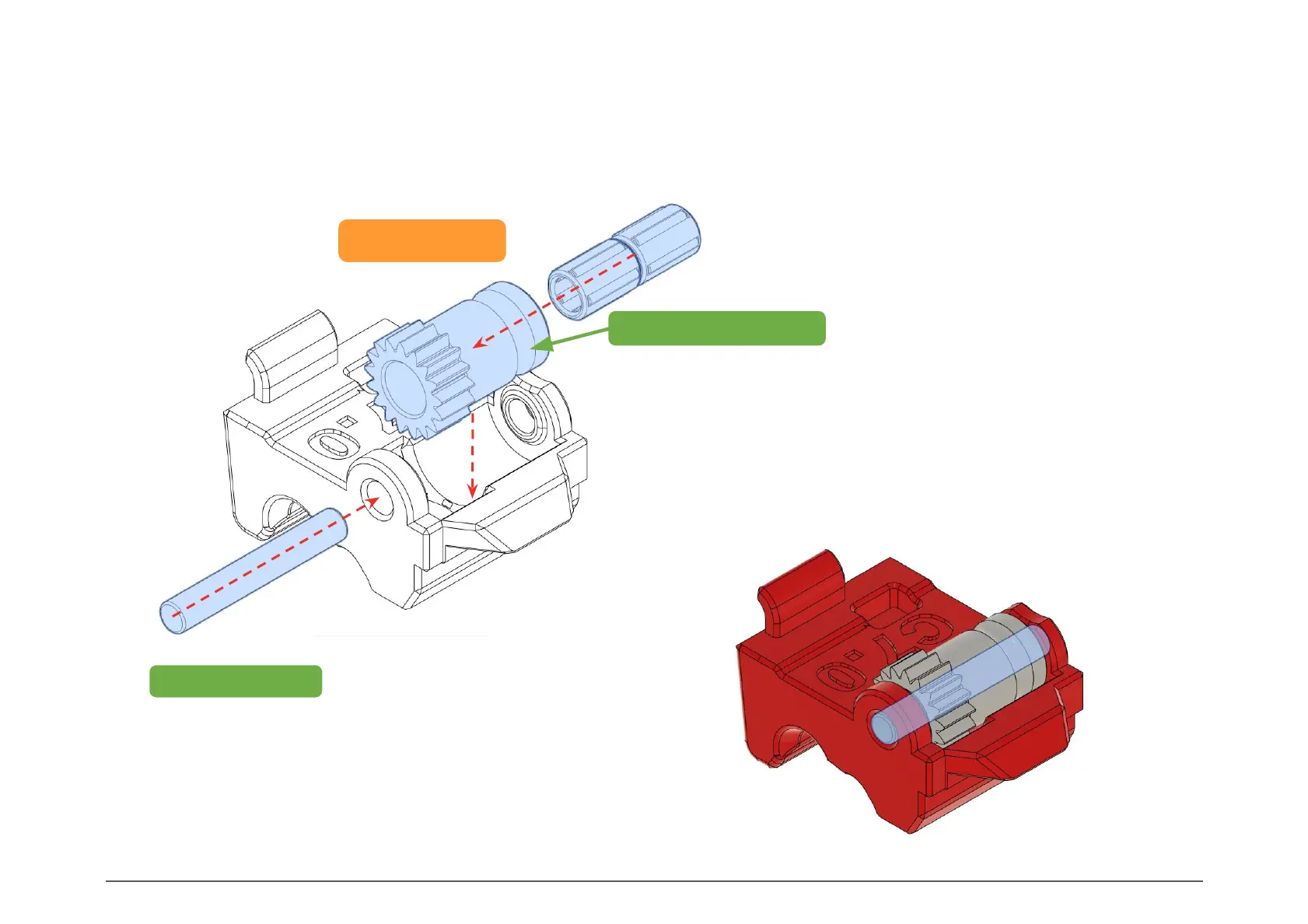

INSTALL BONDTECH IDLER GEAR
Lightly grease the bearings before inserting the
pin (EP1/EP2 or Superlube). Once assembled,
make sure the Bondtech idler spins freely.
Repeat for all Tophats.
Tophat_xN
TOP HATS
