CAD version: ERCF V2
6060
FILAMENT BLOCKS
[a]_Latch_xN
LATCH SCREW
Resist the urge to close the Latch
before installing the screw. You’ll
break the pivot off.

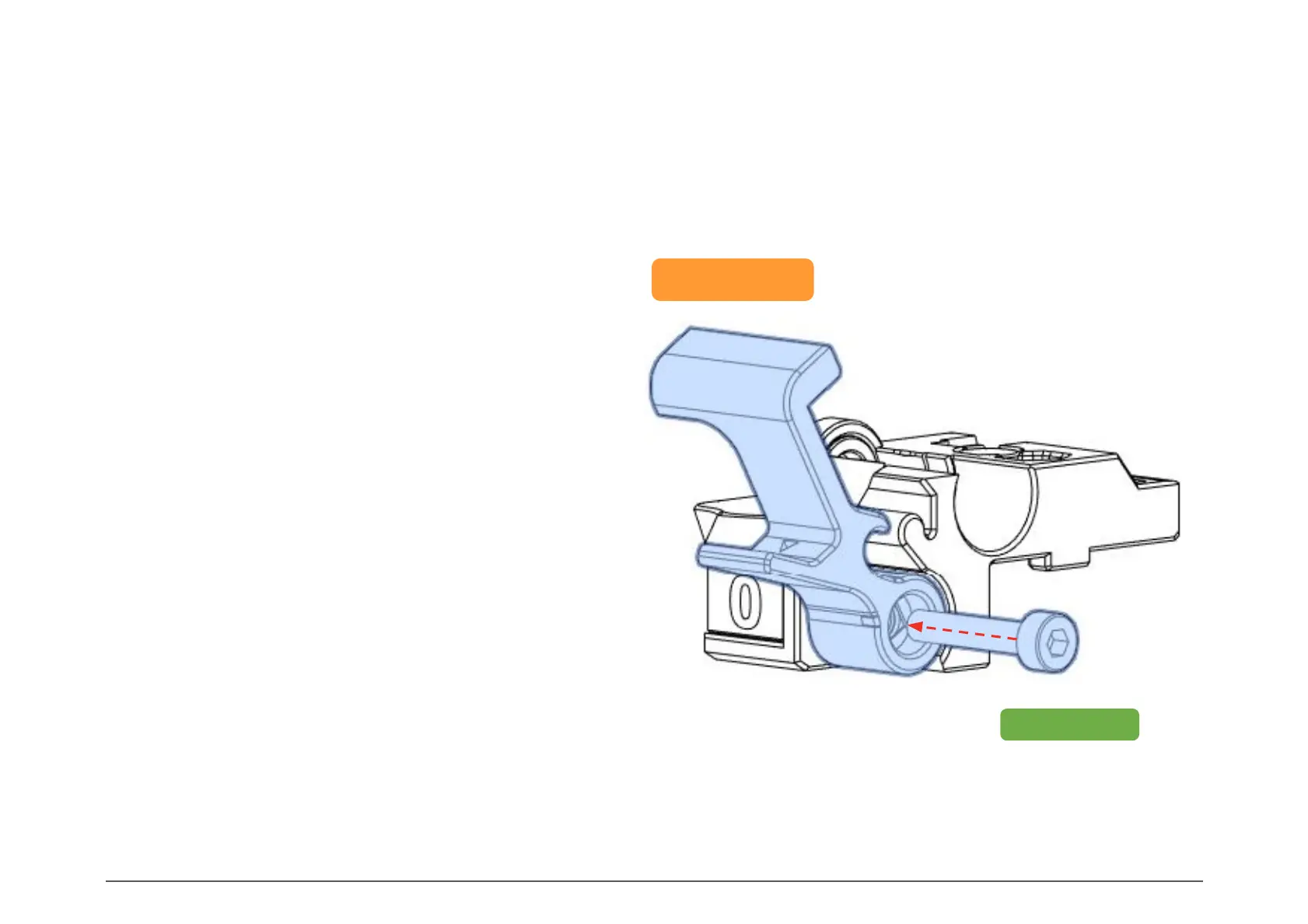

Drive the M3x16mm screw into the
Base. The screw taps directly into
the plastic, so don't overtighten or it
will strip!
Once the screw is in, you can close
the Latch with a satisfying click.
Repeat for all of the Bases.
M3x16mm SHCS
LATCH
