INTRODUCTION

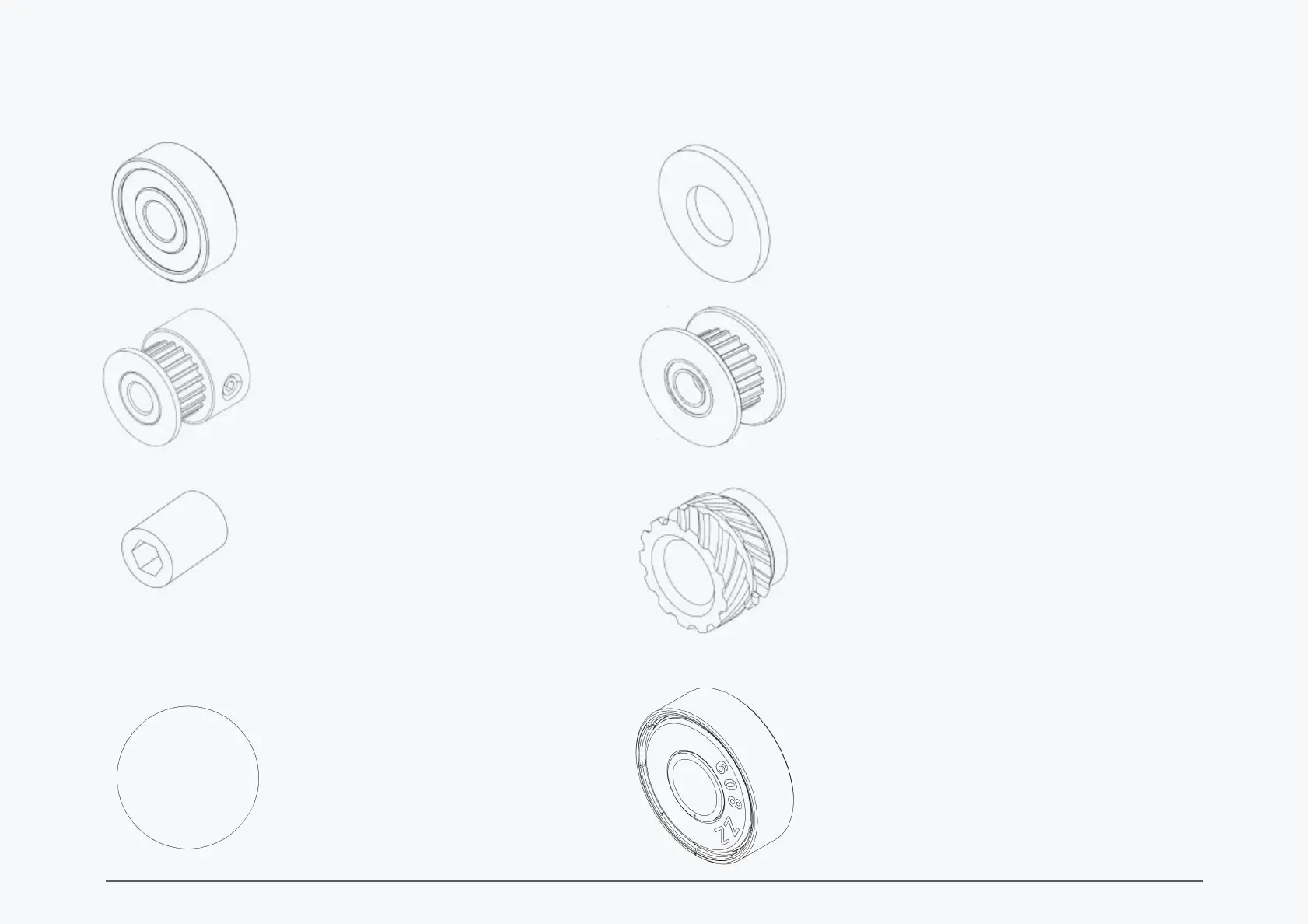

HARDWARE REFERENCE
625 BEARING
A ball bearing used on the Voron Z
drives.
WASHER
Metric fastener with a domed shape head
and hex drive. Most commonly found in
locations where M5 fasteners are used.
ISO 7380-1
PULLEY
GT2 pulley used on the motion
system of the Voron.
IDLER
GT2 idler used in the motion system of the
Voron.
SET SCREW
Small headless screw with an
internal drive. Used in pulleys and
other gears. Also called a grub
screw.
ISO 4026
HEAT SET INSERT
These are made of brass , threaded on the
inside and and has ridges on the outside.
Heat them up to approx 250C with a
soldering iron and push them into the plastic.
As the plastic cools, it solidifies around the
knurls and ridges on the insert for excellent
resistance to both torque and pull-out.
5.5MM BALL BEARING
A ball bearing used in the CottonTail
Buffer.
608 BEARING
A ball bearing used on the ERCT Buffer
(optional),
