VORON ERCF v2 - Page 87

WWW.VORONDESIGN.COM
CAD version: ERCF V2
8787
SELECTOR
M3x8 SHCS
3x2mm Magnet
DRAG CHAIN AND MAGNET

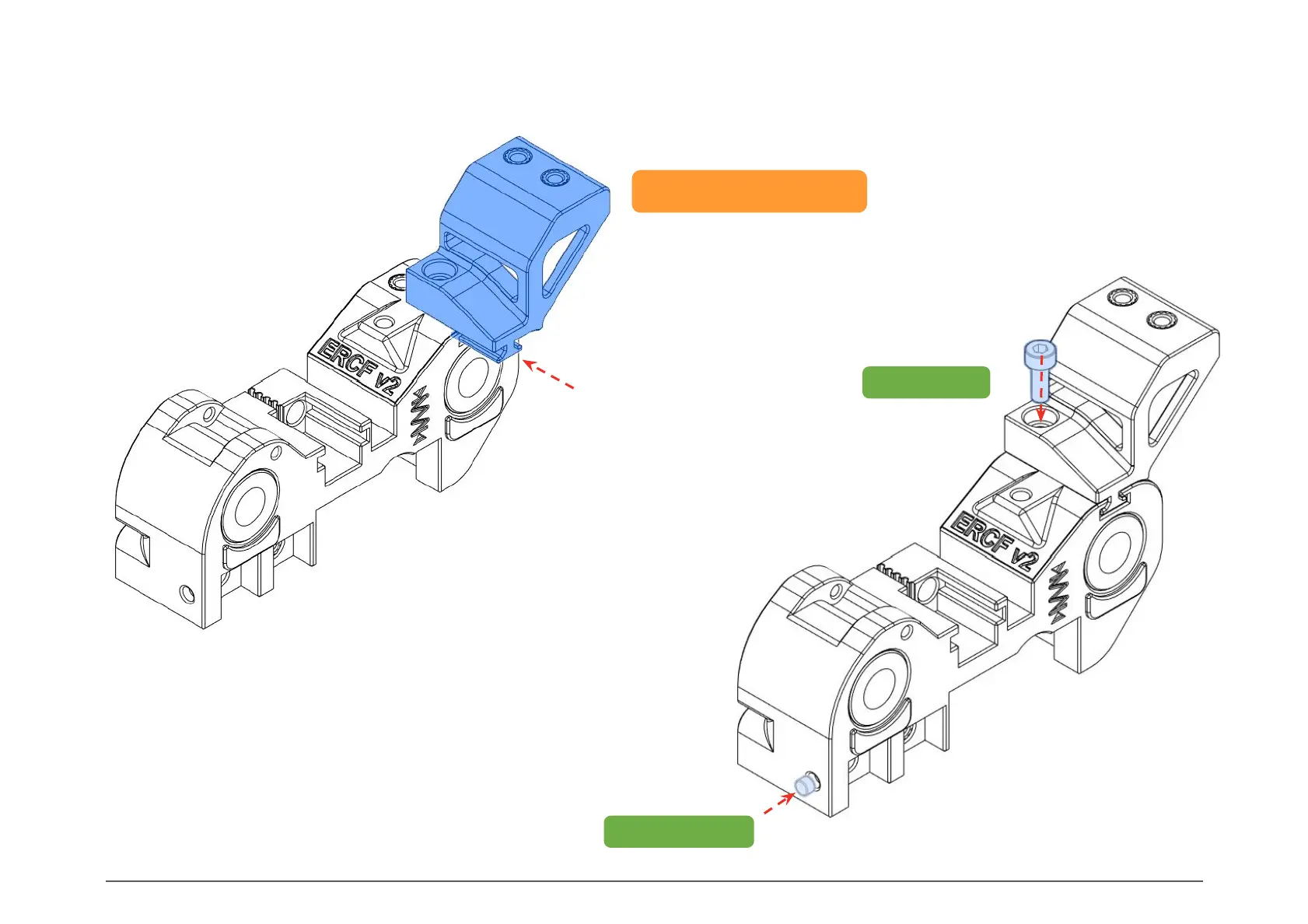

Slide the Drag_Chain_Anchor † into the dovetail groove
on the Selector_Cart and install with an M3x8 SHCS
screw.
Add a drop of CA glue and Insert the 3x2mm magnet
into its slot.
Drag_Chain_Anchor †
DRAG CHAIN ANCHOR
