SELECTOR
M3x20 SHCS
SERVO INSTALLATION

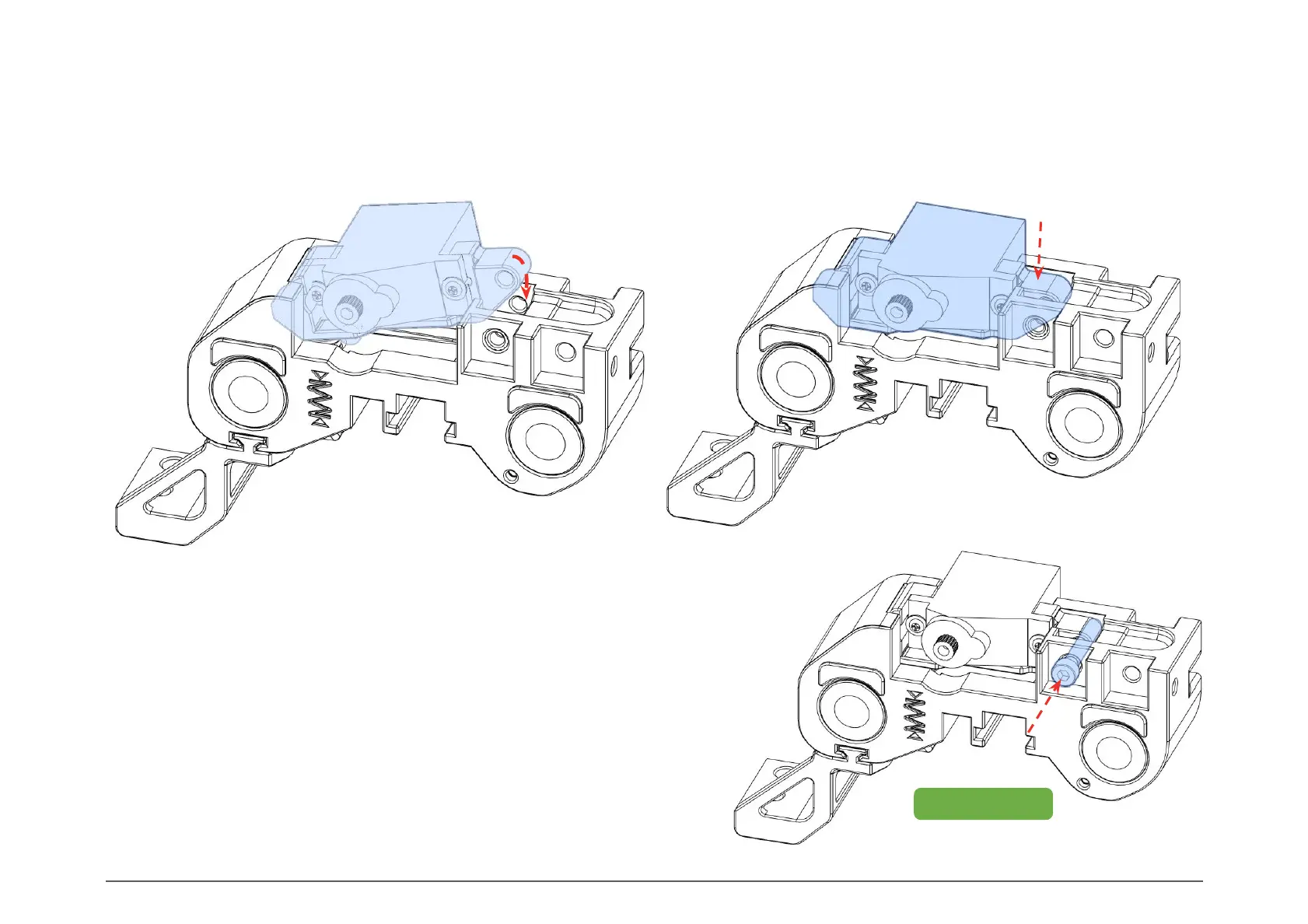

Angle the Servo_Mount, insert it into the captive channel in the
Selector_Cart and press down into the pivot point. The spring
should push against the Servo_Mount preventing it from fully
seating.
Push the Servo_Mount into place and temporally secure it with
an M3x20 screw used for mounting the encoder.
SAVOX SH-0255MGP servo option shown, installation is
identical for the Towerpro MG90S servo.
