VORON STEALTHBURNER - LED Installation and Wiring; Wiring Diagrams and Connections

46
WWW.VORONDESIGN.COM
DOUT
DOUT
DOUT
DIN
DIN
DIN
DIN
DOUT
5V
GND
5V
5V
5V
GND
GND
GND
To Controller Board
+ -
120mm 3x 0.16mm²(AWG26-30)
100mm 3x 0.16mm²(AWG26-30)
LOGO LED
Index=1
TOOLHEAD LED RIGHT
Index=2
TOOLHEAD LED LEFT
Index=3
100mm 3x 0.16mm²(AWG26-30)
DIN
DOUT
5V
GND
DIN
DOUT
5V
GND
To Controller Board

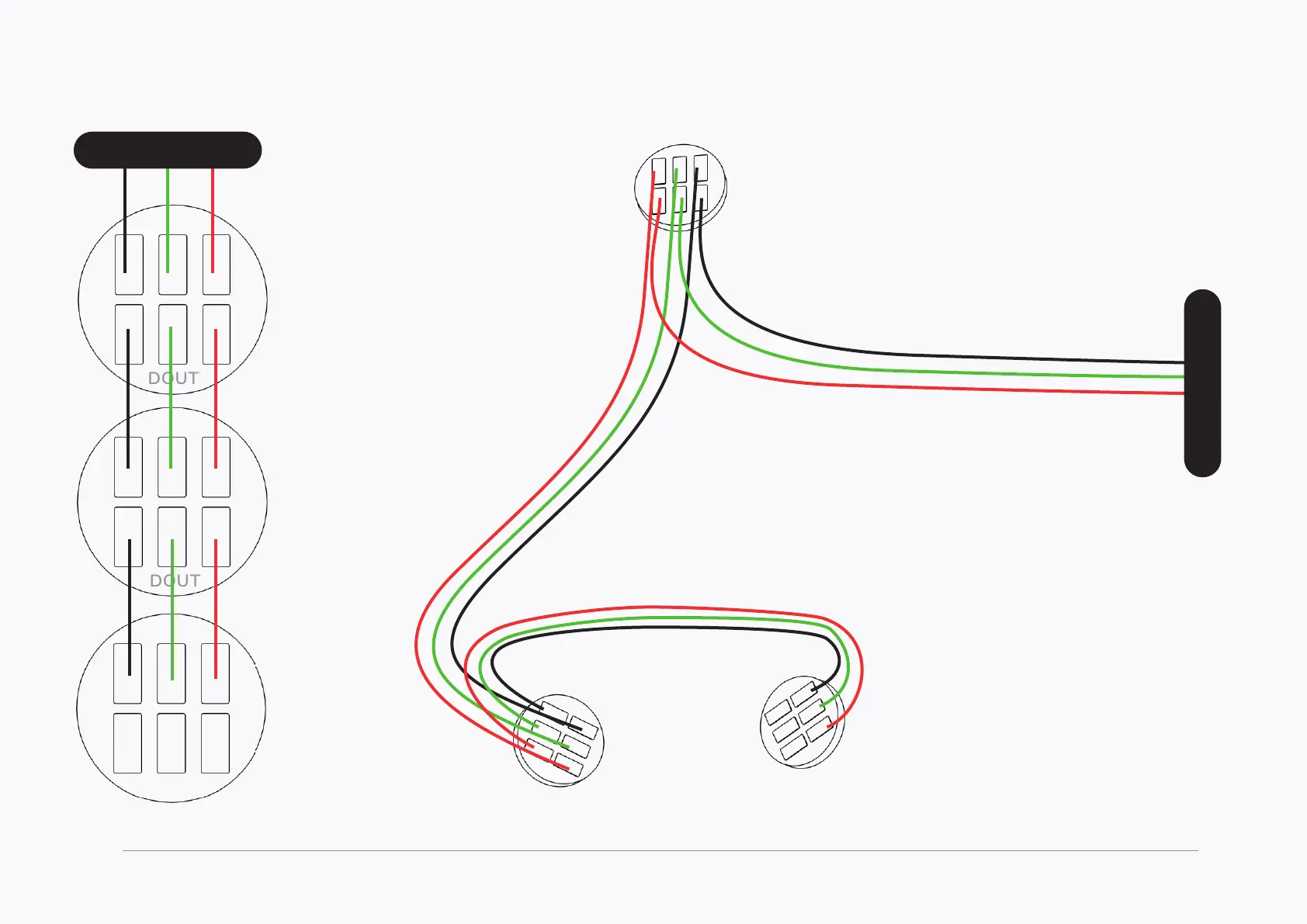

LED WIRING
Connect the “OUT” side of the LED to the “IN”
side of the next LED in the chain.
Solder the wires as shown on the right. Both the
“IN” and the “OUT” wires must exit in the same
direction in order to t into the printed parts.
For Illustration Only, Read “LED Wiring” Callout
