VORON STEALTHBURNER - Diffuser and Mask Setup

47
WWW.VORONDESIGN.COM
LEDS
DOUT
5V
GND
DIN
LOGO LED

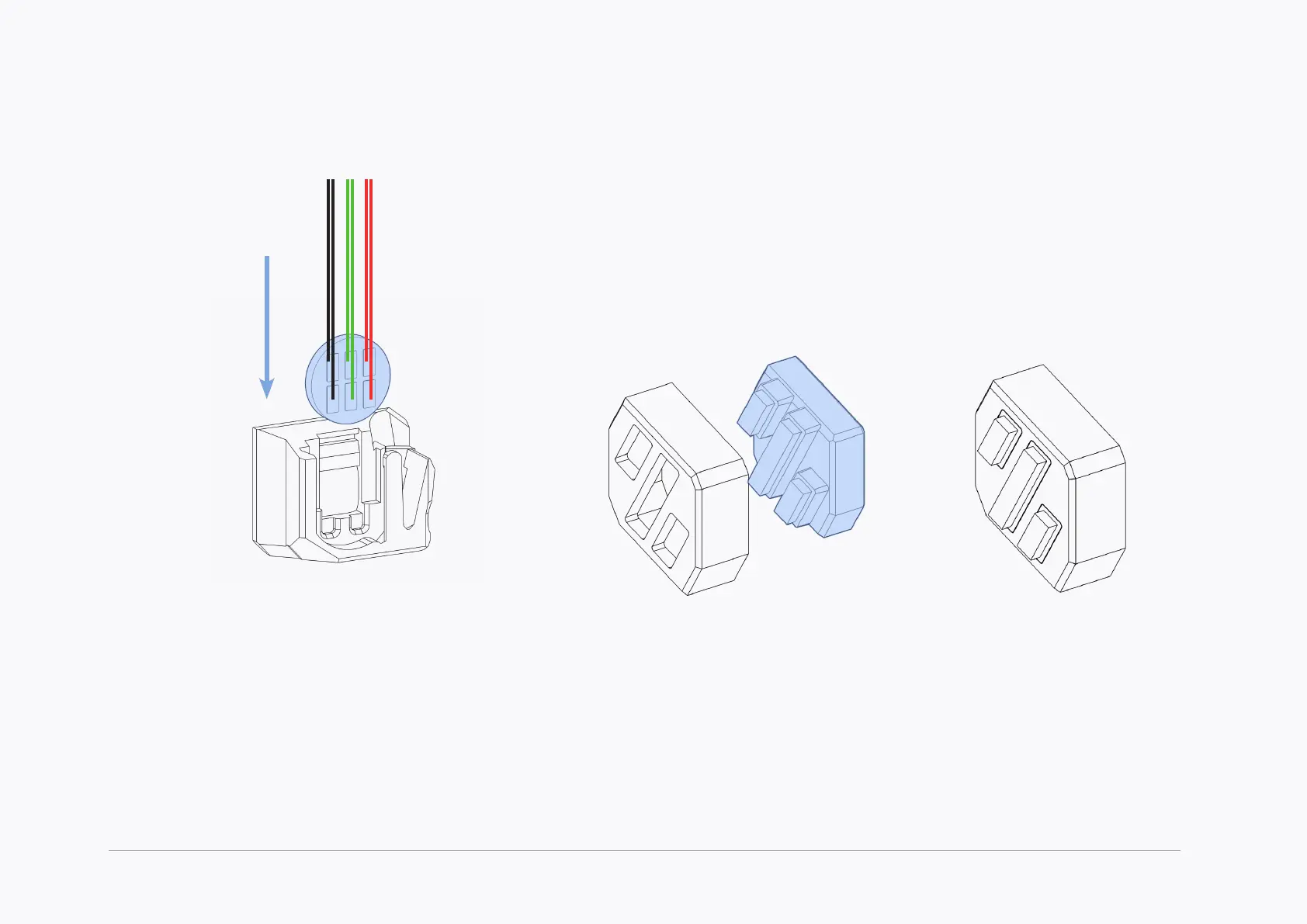

LED DIFFUSER AND MASK
The diffuser (highlighted part) is printed in a
translucent lament to evenly spread the light.
The mask (part to the left) is printed in an opaque
lament to prevent the light from leaking, resulting
in a crisp logo.
