VORON SWITCHWIRE - Toolhead Wiring Details

121
WWW.VORONDESIGN.COM

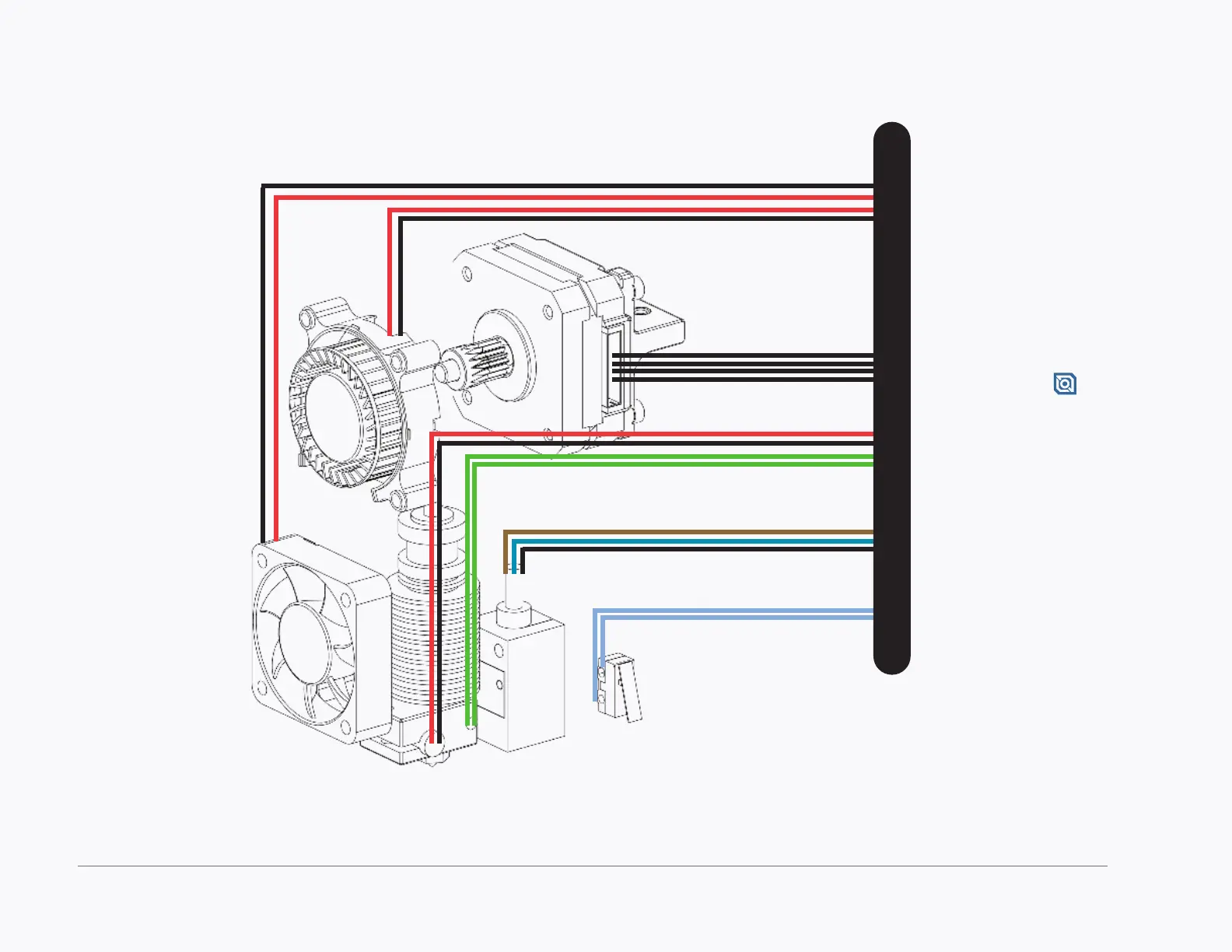

HOTEND HEATER
2x 0.5mm²(AWG20) or larger
PART COOLING FAN
2x 0.25mm²(AWG24) or larger
HOTEND COOLING FAN
2x 0.25mm²(AWG24) or larger
EXTRUDER MOTOR
4x 0.25mm²(AWG24) or larger
HOTEND THERMISTOR
2x 0.25mm²(AWG24) or larger
INDUCTIVE PROBE
3x 0.25mm²(AWG24) or larger
WIRES, DRAG CHAINS AND CRIMPS
The wires attached to the probe, fans, heater, etc. are usually not
rated for use in drag chains.
Add crimp connectors at the toolhead and run suitable wire down
the drag chains. Refer to the sourcing guide for options.
Controller Board
X ENDSTOP
2x 0.25mm²(AWG24) or larger
TOOLHEAD WIRING
OPTION: TOOLHEAD PCB
If you are planing to use a
toolhead PCB skip forward to
the toolhead PCB section.
LDO MOTORS
®
