122
WWW.VORONDESIGN.COM
INDUCTIVE PROBE
3x 0.25mm²(AWG24) or larger
HOTEND THERMISTOR
2x 0.25mm²(AWG24) or larger
EXTRUDER MOTOR
4x 0.25mm²(AWG24) or larger
HOTEND HEATER
2x 0.5mm²(AWG20) or larger
X ENDSTOP
2x 0.25mm²(AWG24) or larger
Hotend
PART FAN
HOTEND FAN
2x 0.25mm²(AWG24) or larger
BAT85 DIODE
Take special note of the black
band on the diode. It should
be facing the probe as per the
diagram.

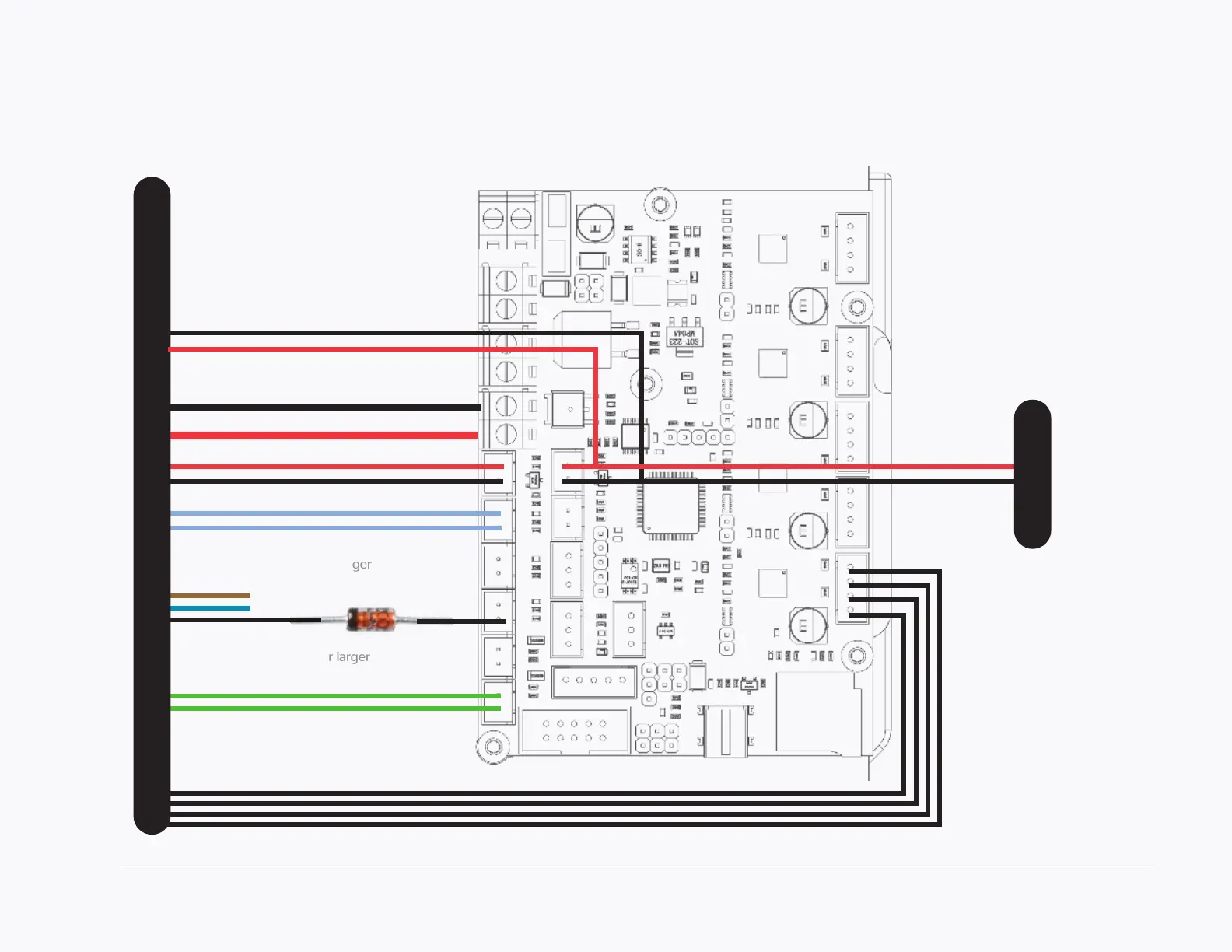

CONTROLLER WIRING
Controller Fan
To Next Page
