HOTEND COOLING FAN
PART COOLING FAN
HOTEND HEATER
PROBE
EXTRUDER MOTOR
HOTEND THERMISTOR
X ENDSTOP

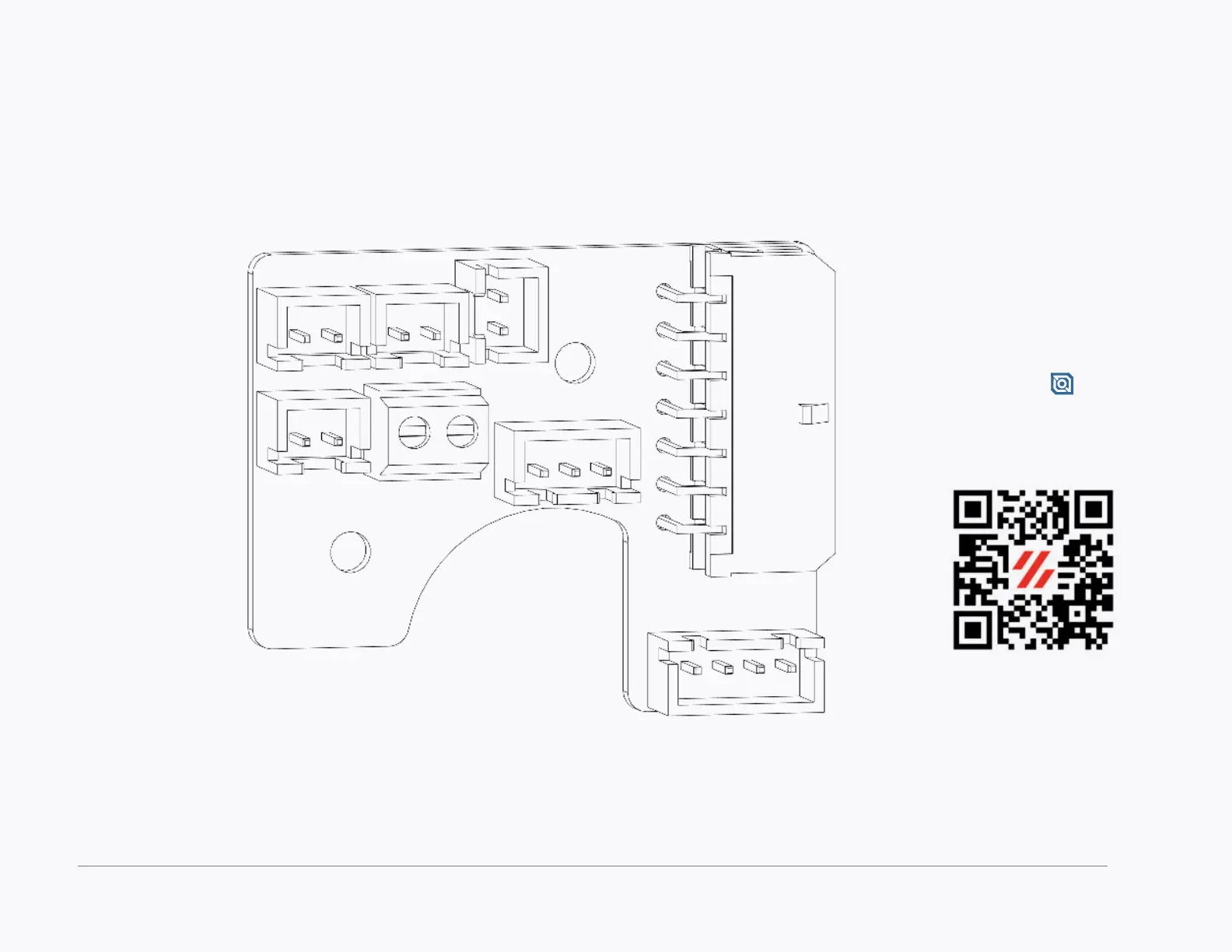

OPTION: TOOLHEAD PCB
The layout of the toolhead pcb changed over
the versions. For a full breakdown visit the link
below.
LDO MOTORS
®
TOOLHEAD WIRING - TOOLHEAD PCB
https://voron.link/zopduze
