Using the HCD Mode
Use the HCD range mode in the following situations:
• Rifle shooting on level ground at any range.
• Rifle shooting out to ranges of 800 yards with mild slopes
(less than 15 degrees).
• Rifle shooting out to ranges of 400 yards with moderate
slopes (15 to 30 degrees).
• For all archery shooting.
NOTE: See page 13 for method of reading slope degree in
LOS mode.
The displayed HCD yardage number
is corrected for shot angle and needs
no extra user input; shooters simply
use the appropriate level ground
bullet drop and wind adjustment
for the range displayed and shoot.
Archers use the appropriate level
ground sight pin for the range
displayed and shoot.
Ranging Mode Explanations
The Ranger
®
1300 provides two range modes: HCD
(Horizontal Component Distance) and LOS (Line of Sight).
Both modes offer a Scan feature.
HCD Mode
The Ranger
®
1300 HCD range display is intended to be
the primary mode—used for most all rifle and archery
shooting conditions. The yardage number displayed is the
critical horizontal component distance.

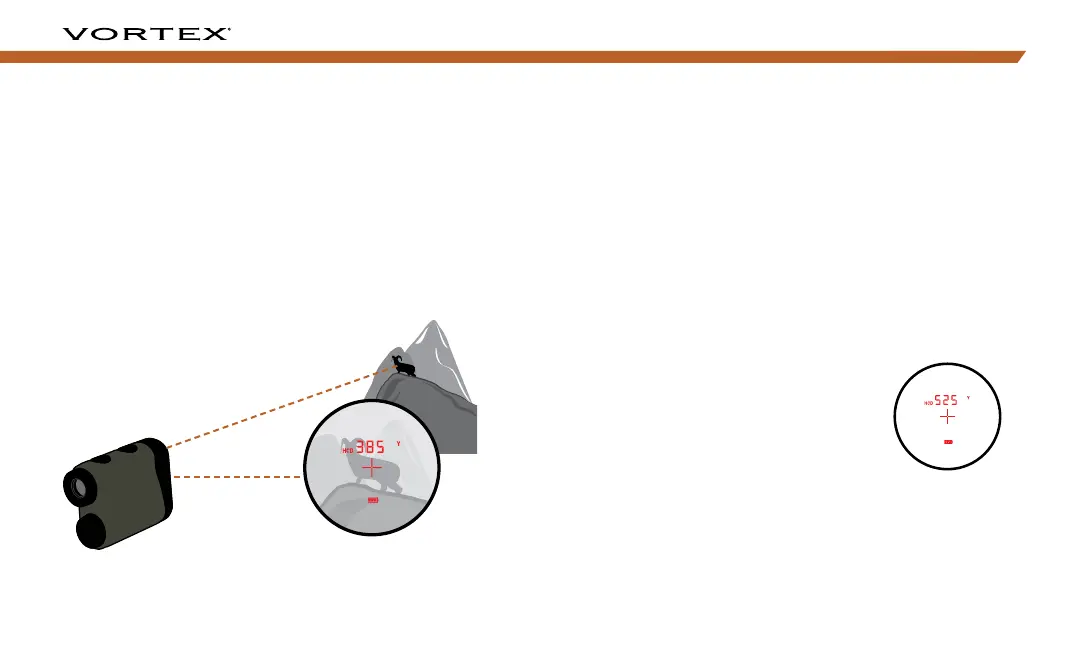

Horizontal Component Distance
385 Yards
Use 525 yard level ground
drop data to make shot.
500 Yard Line of Sight

Vortex RANGER 1300 Specifications

General

Magnification	6x
Objective Lens Diameter	22 mm
Max Range	1300 yards
Eye Relief	15 mm
Weight	7.7 oz
Battery	CR2
Ranging Distance (Reflective)	1300 yards
Length	3.9 inches
Width	3 inches
Field of View (Degrees)	6 degrees
Waterproof	Yes
Fogproof	Yes
Lens Coating	Fully Multi-Coated
Prism System	Roof
Field of View	315 ft @ 1000 yds
Max Angle Reading	± 60 degrees
Accuracy	± 1 yard @ <100 yards ± 2 yard @ 100-499 yards ± 3 yard @ 500-999 yards
