5. Technical Data
5.1 Specifications
- Electrical classification(Battery): Internally powered equipment
- Electrical classification(AC/DC Adaptor): Class II
- MDD(93/42/EEC) classification: Annex IX, rule 10, Class IIb
- Mode of operation: Continuous operating
- Radiation quantity: Max. entrance surface dose 6.319 mR at 100 kV / 1.0 mA / 1.0 s / SID 650 mm
exposure condition.
- For use in environments where no flammable anesthetics and/or flammable cleaning agents are
present; non-alcohol based disinfectant only-wipes or cloth dampened with liquid/spray
5.2 X-ray exposure control
- Tube voltage range: 70 kV - 100 kV
- Exposure time range: 0.10 s - 1.0 s
5.3 X-ray tube assembly
- X-ray target material: Tungsten
- Permanent filtration: 3.5 mmAl / 75 kV IEC 60522:2010
- Tube voltage range: Max. 110 kV
- Tube current range: Max. 1.2 mA
- Focal spot size: 0.6 mm
- Type: stationary
- Anode angle: 0°
- Anode heat storage capacity: 1.2 kJ
- Maximum Anode Heat Dissipation Rate: 100 W
- Nominal Radiographic anode input power according to IEC 60613:2010: 0.1 kW

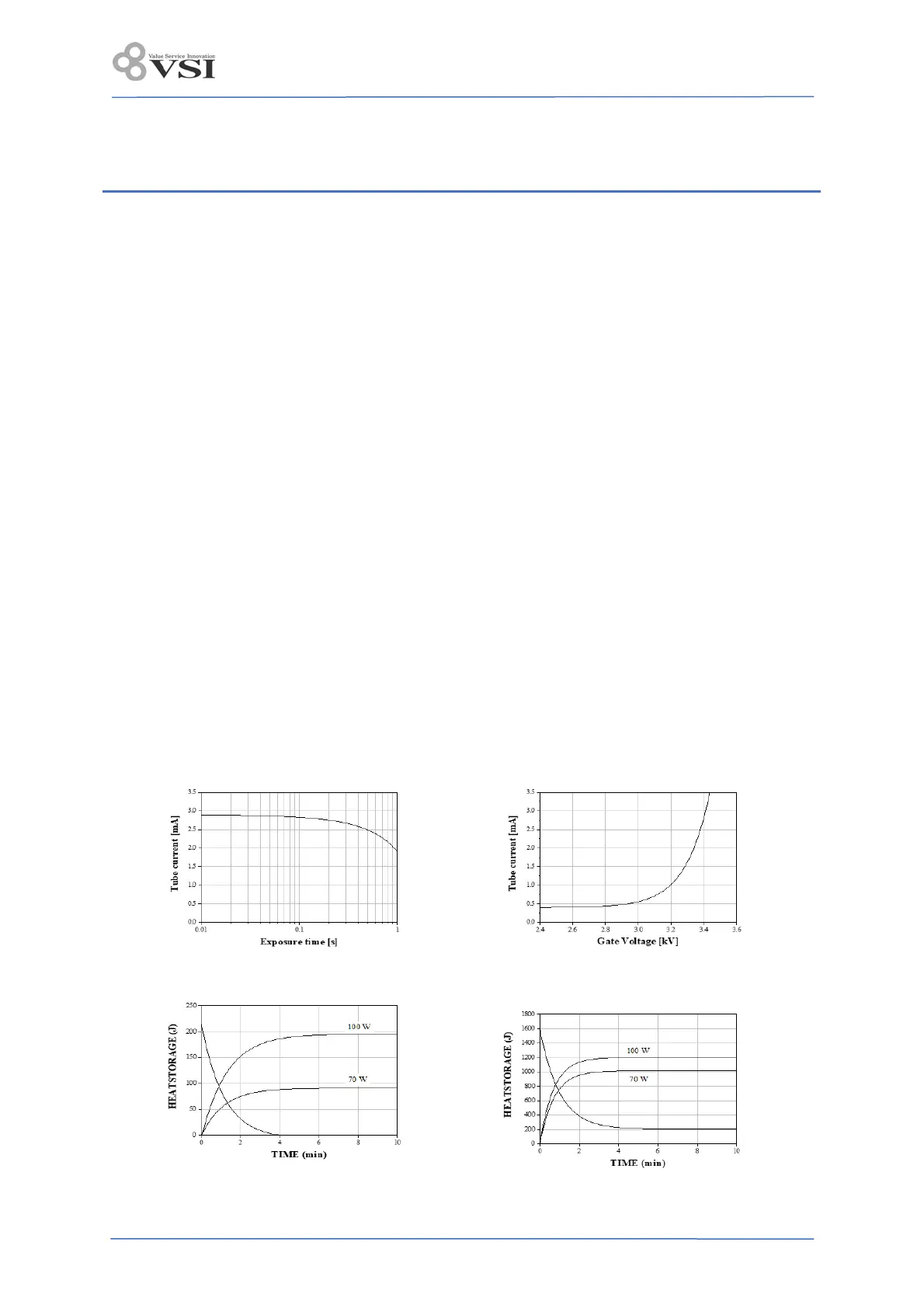

- X-ray tube Characteristic curve (X-ray tube Single Load Rating)
Maximum rating chart
Emission characteristics
Heating and cooling curves of the X-ray tube
Heating and cooling curves of X-ray tube
housing assembly
