VST DD-700 - Electrical Connections

21

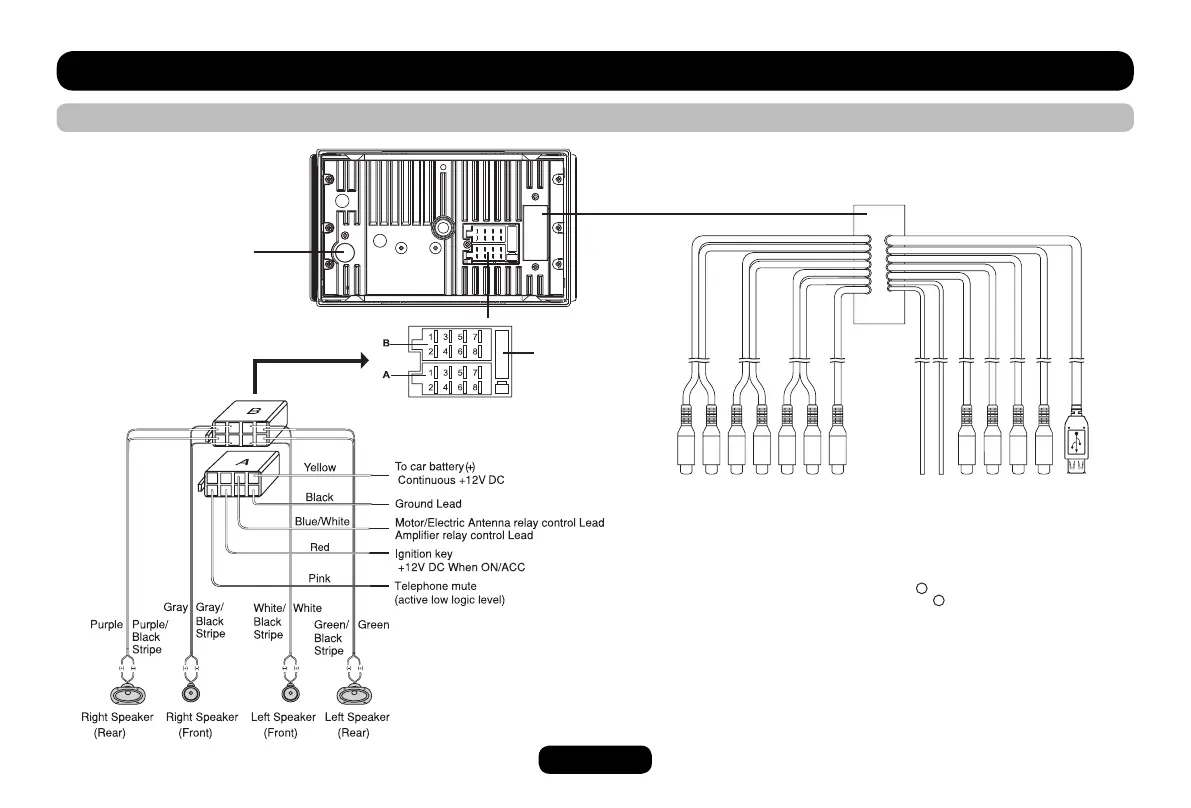

Electrical Connections
USB SLOT CAMERA IN (Yellow) VIDEO IN (Yellow) VIDEO OUT 2 (Yellow) SUB. W (Brown) REAR SPEAKER-R (Red) REAR SPEAKER-L (White) FRONT SPEAKER-R (Red) FRONT SPEAKER-L (White) AUDIO IN-L (White)
AUDIO IN-R (Red)
VIDEO OUT 1 (Yellow) PARKING (Green) - CAMERA (Pink) +
ISO Connector
Antenna
Fuse 15A
Wiring Diagram
