VWR Homogeniser - Changing the Tube Holder; Changing the Neck Gasket

8

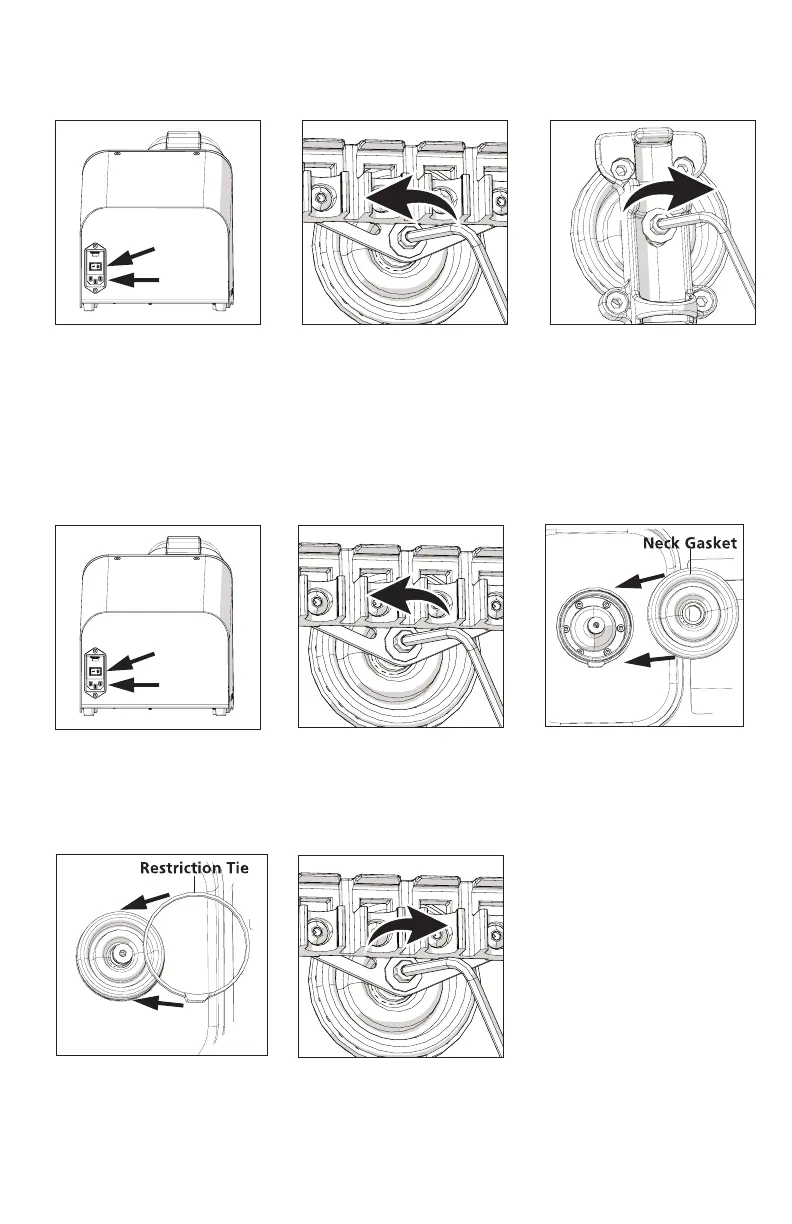

Changing the Tube Holder
Changing the Neck Gasket
Use the supplied 3 mm
Allen wrench to loosen tube
carriage holder screw
Caution: Turn unit off and
unplug power cord.
Use the supplied 3 mm Allen
wrench to tighten tube
carriage holder screw
1.
3.
2.
Slide the new neck gasket
onto the pivot shaft and
housing
3.
Secure the new neck gasket
using the restriction tie with
the clamp positioned toward
the bottom of the instrument.
Tighten central screw.
4.
Use the supplied 3 mm Allen
wrench to loosen the central
screw and remove restriction
tie and old neck gasket.
Use the supplied 3 mm Allen
wrench to tighten the central
screw and secure the tube
carriage.
2.
5.
Caution: Turn unit off and
unplug the power cord.
1.
