water,which maycausecondensationonthefinsoftheevaporator.Theamountof condensationmaybeas
much as several litters per hour at high relative humidity.  This is sometimes mistakenly regarded as a water
leak.

4.Electricalwiring

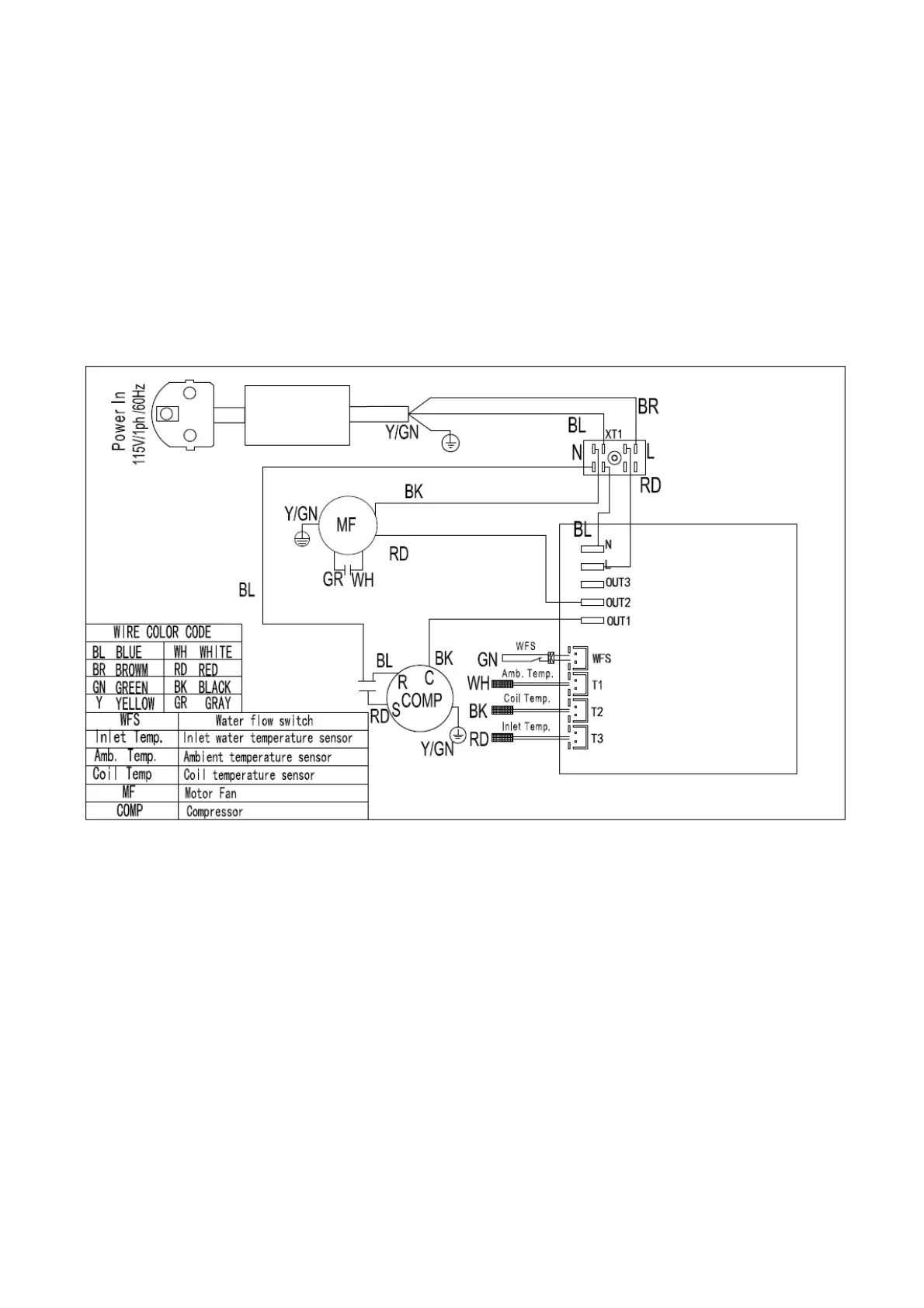

4.1Swimmingpoolheatpumpwiringdiagram
NOTE:
(1)Aboveelectricalwiringdiagramonlyforyourreference,pleasesubject machinepostedthewiringdiagram.
(2)Theswimmingpoolheatpumpmustbeconnectedgroundwirewell,althoughtheunitheatexchangeris
electricallyisolatedfromtherestoftheunit.Groundingtheunitisstillrequiredtoprotect
youagainstshort 
circuitsinsidetheunit.Bondingisalsorequired.

Disconnect:Adisconnect means (circuitbreaker, fused or un‐fusedswitch)shouldbelocatedwithin sight of
and readily accessible from the unit. This is common practiceon commercial and residential heat pumps. It
preventsremotely‐energizingunattendedequipment
andpermitsturningoffpowerattheunitw hiletheunit
isbeingserviced.
