Section 4
System Configurations
Page 12

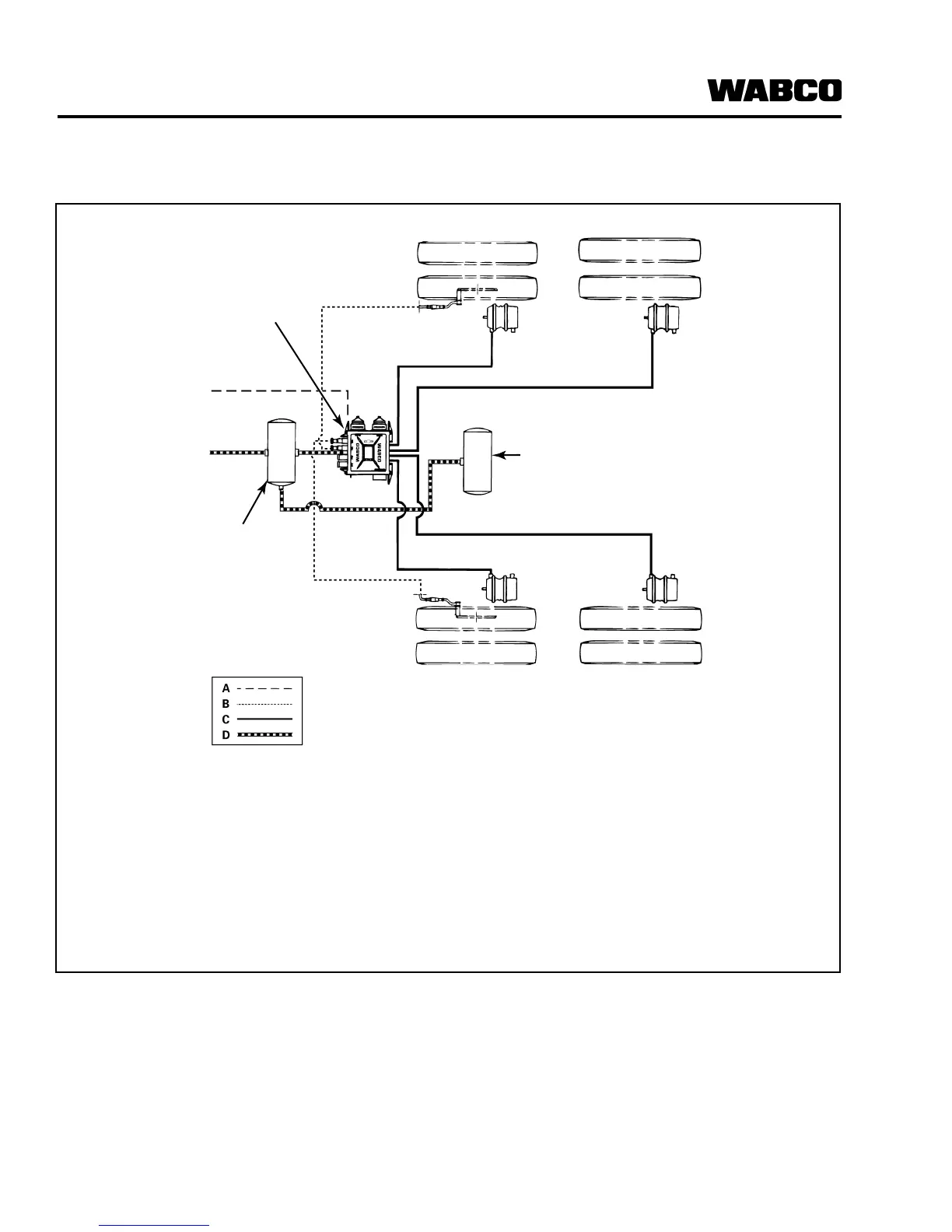

2S/1M Trailer ABS Configuration with External Diagnostics
Capability Installation Diagram
For direct tank-mounted installations, see “How to
Install the ECU/Valve Assembly” in Section 6,
"Component Replacement".
Typical Application:
Single-Axle Dolly
Single- and Tandem-Axle Semi-Trailer
NOTE
Sensors may be installed on either axle,
depending upon suspension and other
vehicle characteristics.
Figure 4.2
A Service/Control Lines
B Sensor Cables
C Service to Brake Lines (Delivery Lines)
D Air Supply/Emergency Lines
1 ECU/Valve Assembly (YE)
2 Air Tanks
1002086f
AIR TANK
ECU/VALVE
ASSEMBLY (YE)
A Service/Control Lines
B Sensor Cables
C Service to Brake Lines (Delivery Lines)
D Air Supply/Emergency Lines
AIR TANK
YE1
YE2
