WABCO Easy-Stop Basic User Manual

Section 8
Appendixes
Page 40
Appendix B
Reconfigure Mode

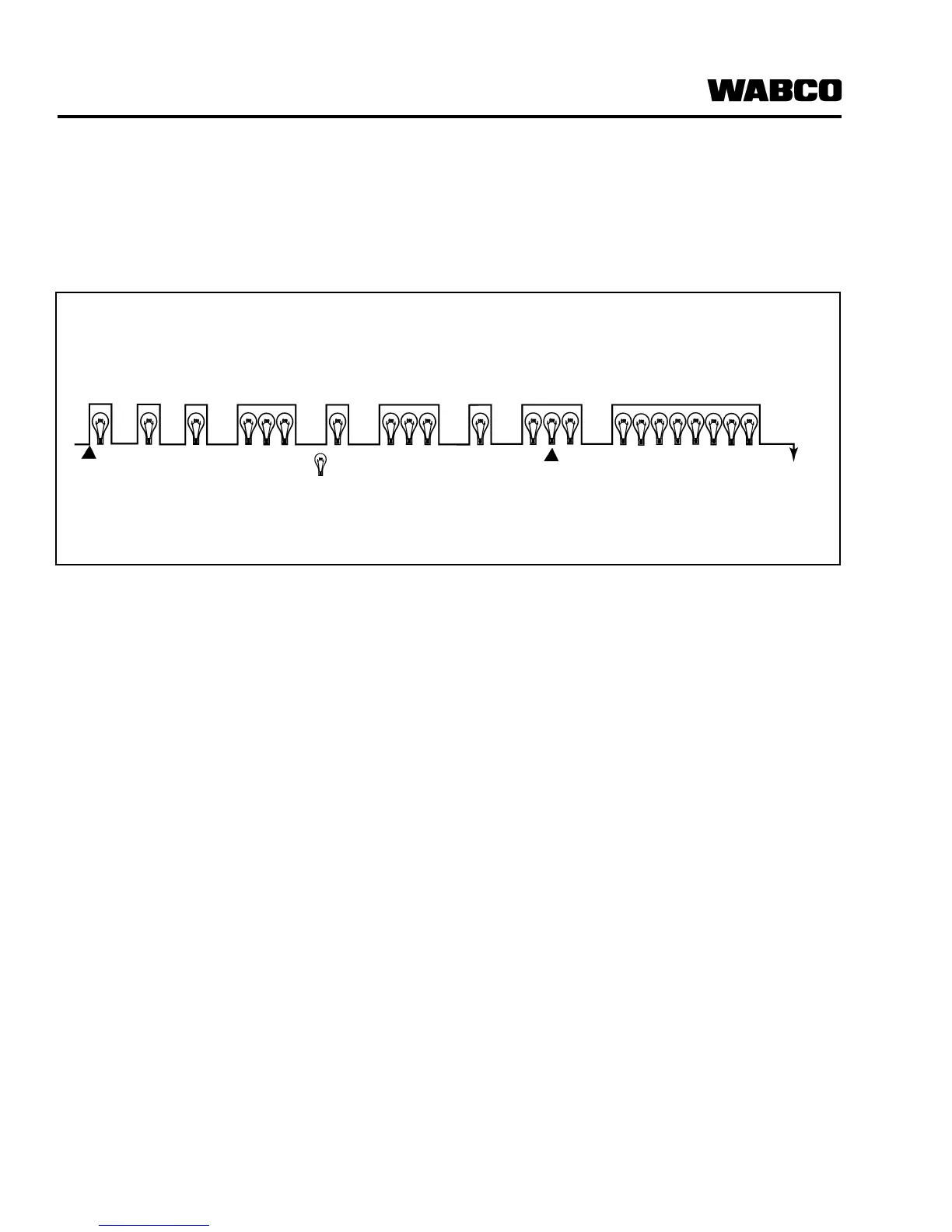

Blink Code Example (4S/2M Configuration)
Reconfigure Mode
Figure 8.2
1002098b
1 S 1 S 1 S
OFF
2.5 S
OFF
2.5 S
OFF
2.5 S
OFF
2.5 S
OFF
2.5 S
OFF
2.5 S
OFF
1 S
OFF
1 S
3 Flashes = I.D.
= 4S/2M
3 Flashes = I.D.
= 4S/2M
3 Flashes = I.D.
= 4S/2M2.5 S 2.5 S
8 Rapid Flashes =
ECU Reconfigured
Power ON;
ECU activated
= Light ON
S = Second(s)
Depress Switch
3 Seconds
Continuously
Identifies
Configuration
