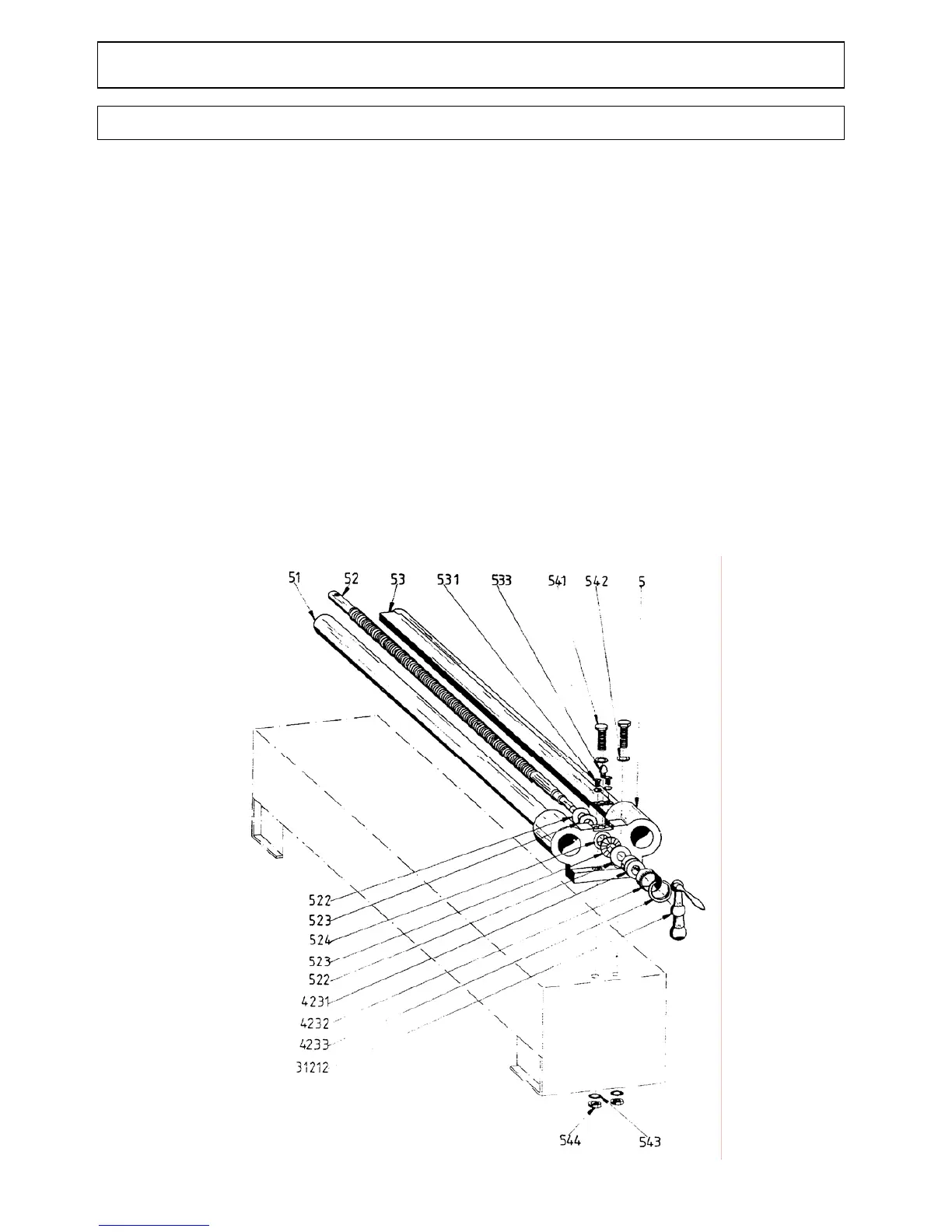

WABECO D3000 E - Rear Support with Guide Rods

21
2 Drawings and list of parts
2.8 Rear support with guide rods
Part-No. Order-No. Designation
5 10200005 Rear support (only the cast iron part)
51 10200051
Guide rods
52 10200052
Feed spindle
522 10200522
Washer
523 10200523
Axial needle bearing
31212 10231212
Ball-ended crank
4231 102H4231
Spacer sleeve
524 10200524
Bronze bushing
53 10200053
Protective channel
531 10200531
Screw + washer
4232 10204232
Graduated ring
4233 10204233
Retaining ring
533 10200533
Lubricating ring
541 10200541
Hexagon bolt
542 10200542
Washer
543 10200543
Serrated lock washer
544 10200544
Hexagon nut
10200500 Rear bearing compl.
