WABECO D3000 E - Drawings and List of Parts

9
2. Drawings and list of parts

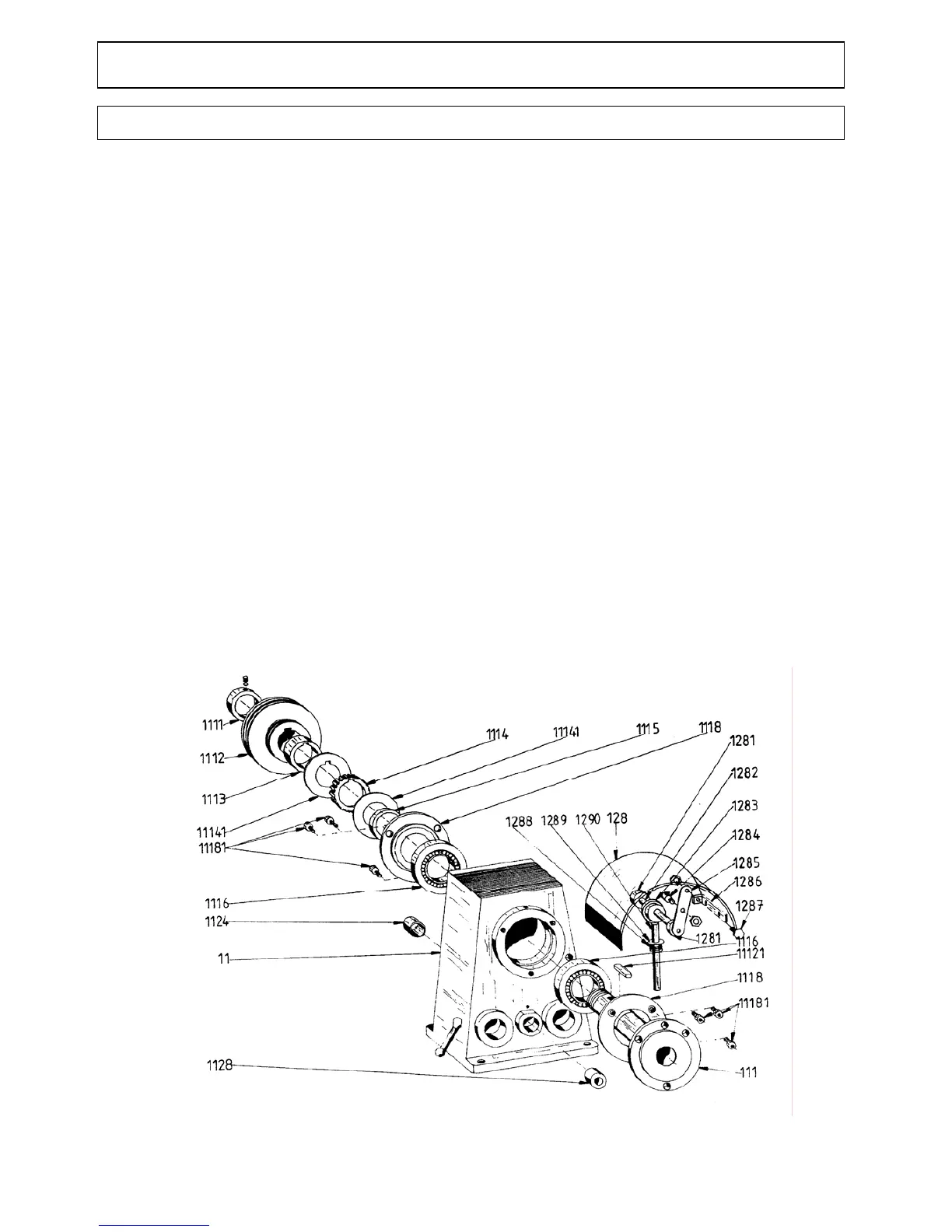

2.1 Headstock for D2000 E, D2400 E and D3000 E
Part-No. Order-No. Designation
11 10200011
Headstock
1124 10201124
Bronze bushing
1128 10201128
Bronze bushing
111 10200111
Spindle with flange
1118 10201118
Bearing cap
11181 10211181
Hexagon socket screw
11121 10211121
Feather key
1115 10201115
Spacer sleeve
1116 10201116
Tapered roller bearing
11141 10211141
Starter pulley
1114 10201114
Toothed belt pulley
1113 10201113
Spacer sleeve
1112 10101112 Belt pulley for Universal Lathe D2000
1112 10201112 Belt pulley for Universal Lathe D2400 E
1111 10201111
Regulating nut
128 10200128
Plexiglass cover
1281 10201281
Adjusting ring
1282 10201282
Shaft
1283 10201283
Eccentric
1284 10201284
Stop
1285 10201285
Bracket
1286 10201286
Angle piece
1287 10201287
Hexagon bolt with nut
1288 10201288
Pressure spring
1289 10201289
Lock washer
1290 10201290
Pin
