Wabtec Microphor LF-310 - Service Kits

Marine Head Manual P/N 24533 11 June 25, 2002

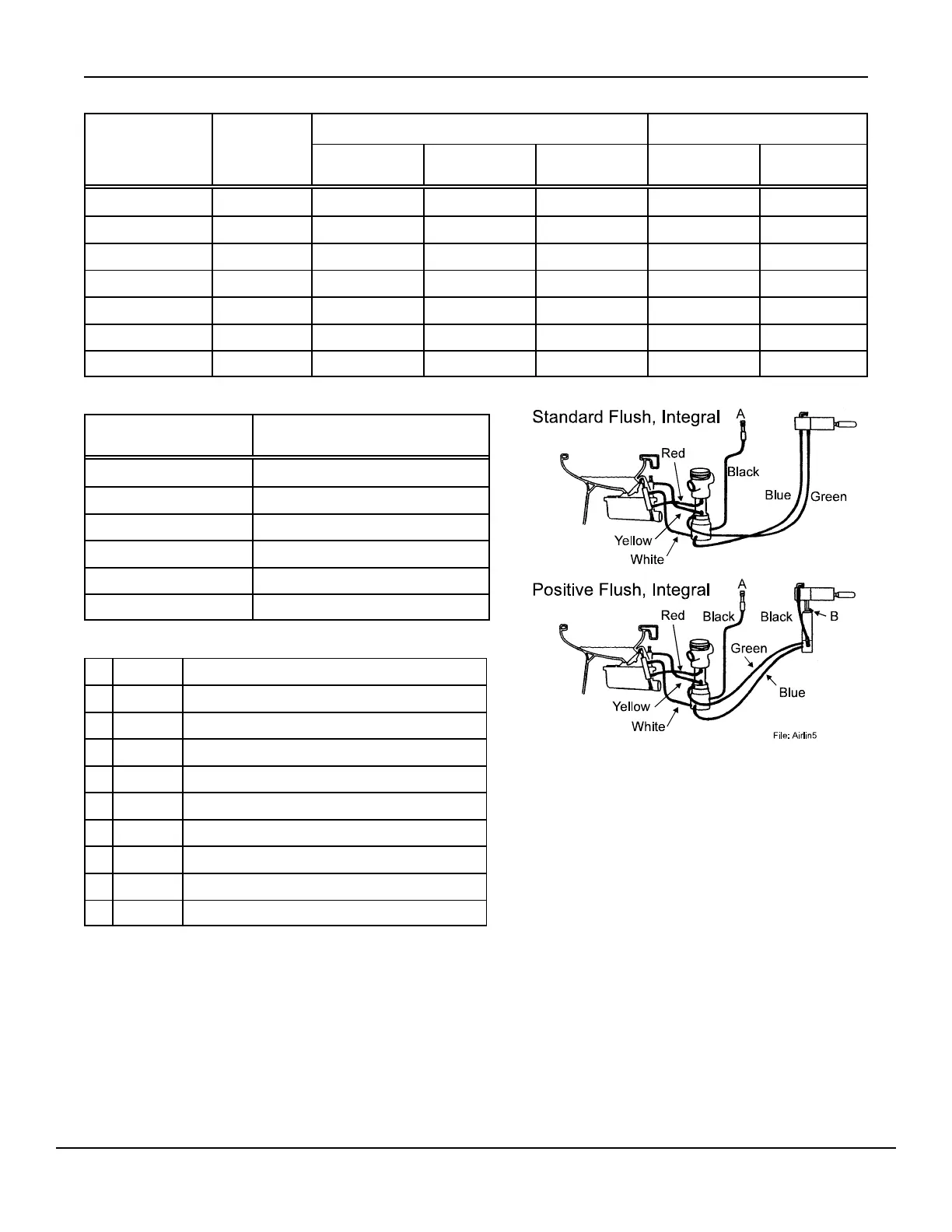

COLOR CHART - AIR LINE CONNECTIONS - SERVICE KITS
VITREOUS CHINA COLOR CHART
Color Code
LF-210 LF-219
Round
Shell & Lid
Elongated
Shell & Lid
Lid
Only
Remote
Shell
Integral
Shell
White -- 44032 44010 99064 44133 44151
Pastel Ivory SC1 44327 44328 99064-23 44133-3 44150
Bone/Natural S4 44039 44012 99064-3 44134 44152
Harvest Beige SC4 44333 44334 99064-15 NA N/A
Pink SR2 44331 44332 99064-21 NA N/A
Grey 651 44329 44330 99064-5 44135 44153
Black N-5 44337 44338 99064-7 44130 44154
AIR LINE CONNECTIONS
From Air/Water
Sequence Valve To
Red, P/N 35383 Air Cylinder, bottom fitting
White, P/N 35385 Air Cylinder, top fitting
Black, P/N 35419 Bleed Off Plug
Green, P/N 35381 Flush Activator, front fitting
Blue, P/N 35382 Flush Activator, back fitting
Yellow, P/N 35384 Hopper
SERVICE KITS
# P/N Description
1 93100 Master Service Kit (2-5 below)
2 95057 Air/Water Sequence Valve
3 94502 Air Cylinder
4 95020 Flush Activator Pilot Valve (standard)
5 95037 Vacuum Breaker
6 95122 Positive Flush (Detent) Valve
7 90066 Flapper Replacement Kit
8 90070 Hopper Conversion Kit - Rear
9 90071 Hopper Conversion Kit - Bottom
