START UP
1 Turn air ON air supply at
compressor.
2 Turn air ON at air
shut-off cock (near but
not connected to Flush
Activator) to blow out
airlines for a few seconds.
This procedure should
remove any debris or contaminants from the
airline. Turn air OFF at shut-off valve.
3 Connect airline to Flush Activator. Make sure air
shut-off valve is installed next to Flush Activator.
Do not over-tighten fittings.
4 Turn ON air shut-off cock. Check total installation
for air leaks using soapy water.
5 Turn ON water. Check for water leaks.
6 Flush you Microflush Marine Head four times,
waiting twenty seconds between flushes to get
water through system and operating regularly. To
flush properly, hold down Flush Activator Handle
or Button until flapper opens.
DOUBLE CHECK
1 Air pressure at Microflush Head is at 60-65 psi.
2 Water Pressure at Microflush Head is between
20-50 psi, 35 psi optimal.
3 Water level in bowl should be at top edge of
flapper opening.
If your Microflush does not operate correctly, refer
to troubleshooting sections.
FLUSH CYCLE ACTIVATORS
There are two types of Flush Activators:
Standard - hold handle or button down for 1
second.
Positive - barely push handle or button to
activate.

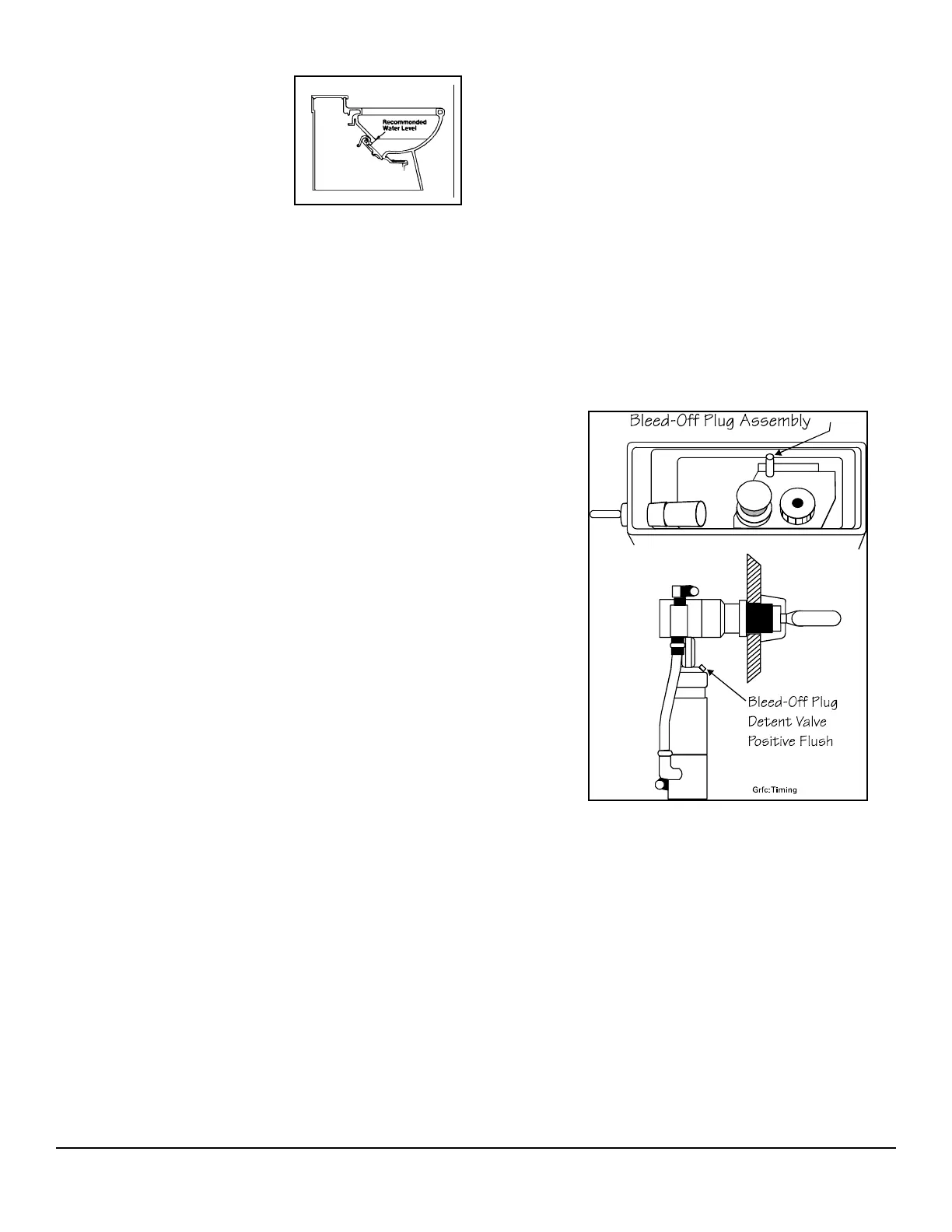

CLEANING BLEED-OFF PLUG
ASSEMBLY
Standard Flush:
Remove plug and clean with solvent; air blow dry.
Positive Flush:
Remove plug and clean with solvent; air blow dry;
remove and clean plug on Detent Valve.
Note: Use 5/32"or 4mm Allen wrench to remove
plugs.
Note:
Bleed-Off Plugs on Air & Water Sequence Valves
and Detent Valves are different sizes that are not
interchangeable.
MAINTENANCE/CLEANING/CLEARING/
WINTERIZING
ROUTINE MAINTENANCE
