Wabtec Microphor LF-310 - Exploded Views

Marine Head Manual P/N 24533 8 June 25, 2002
Typical Remote Assembly

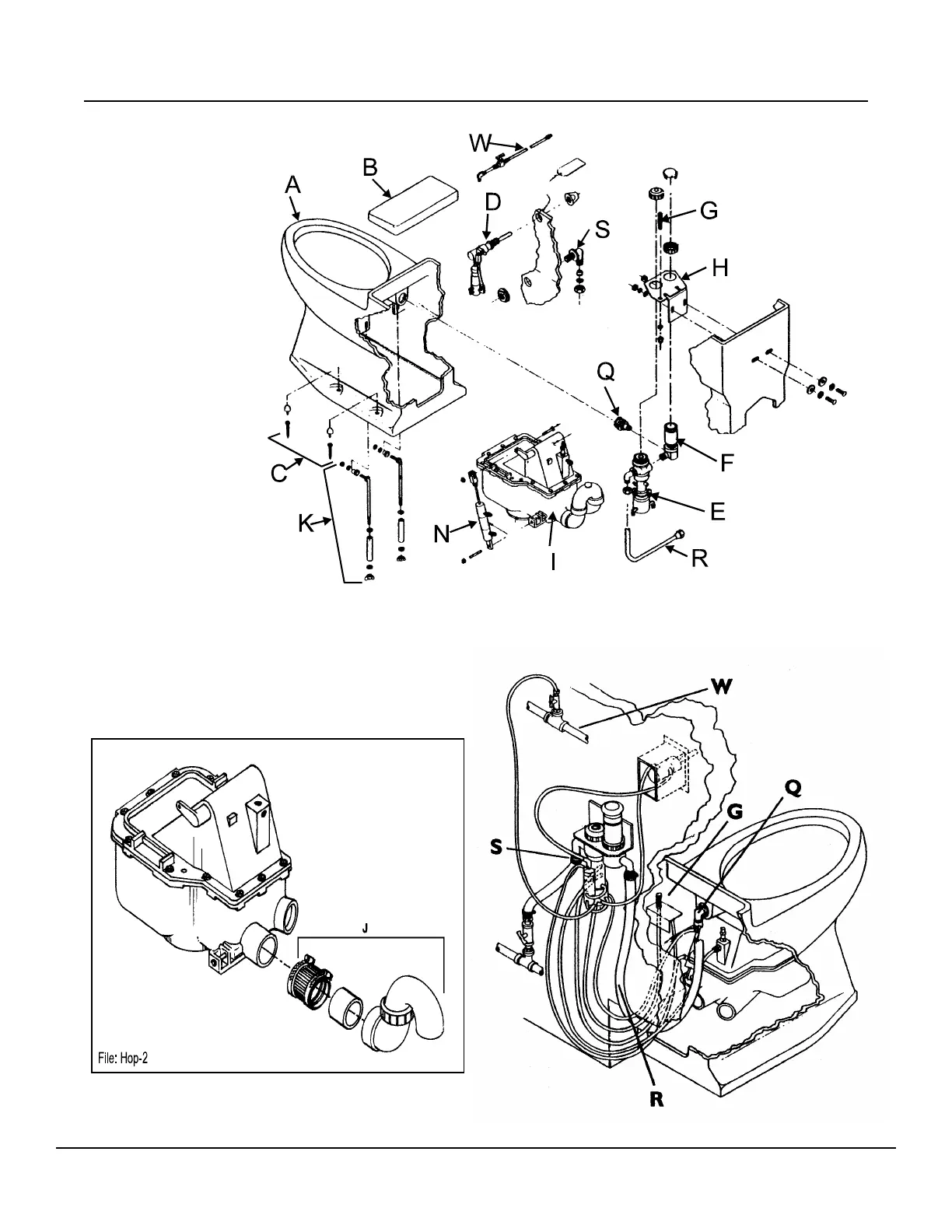

EXPLODED VIEWS
A Toilet Shell
B Toilet Lid
C Closet Screws
D Flush Activator
E Air/Water Seq.
Valve
F Vacuum Breaker
G Bleed Off
Assembly
H Valve Bracket
I Hopper
J P-Trap, Rear
Discharge
K Hopper Mounting
Assembly
L Marine Bleed
Valve
M Hopper Screws
N Air Cylinder
O Flapper Assembly
P Crank Assembly
Q Spud Assembly
R Water Supply
Tube
S Water Connection
T See chart on next page
U See chart on next page
V Hopper Gasket
W Air Supply Kit
X Pressure Relief Valve
