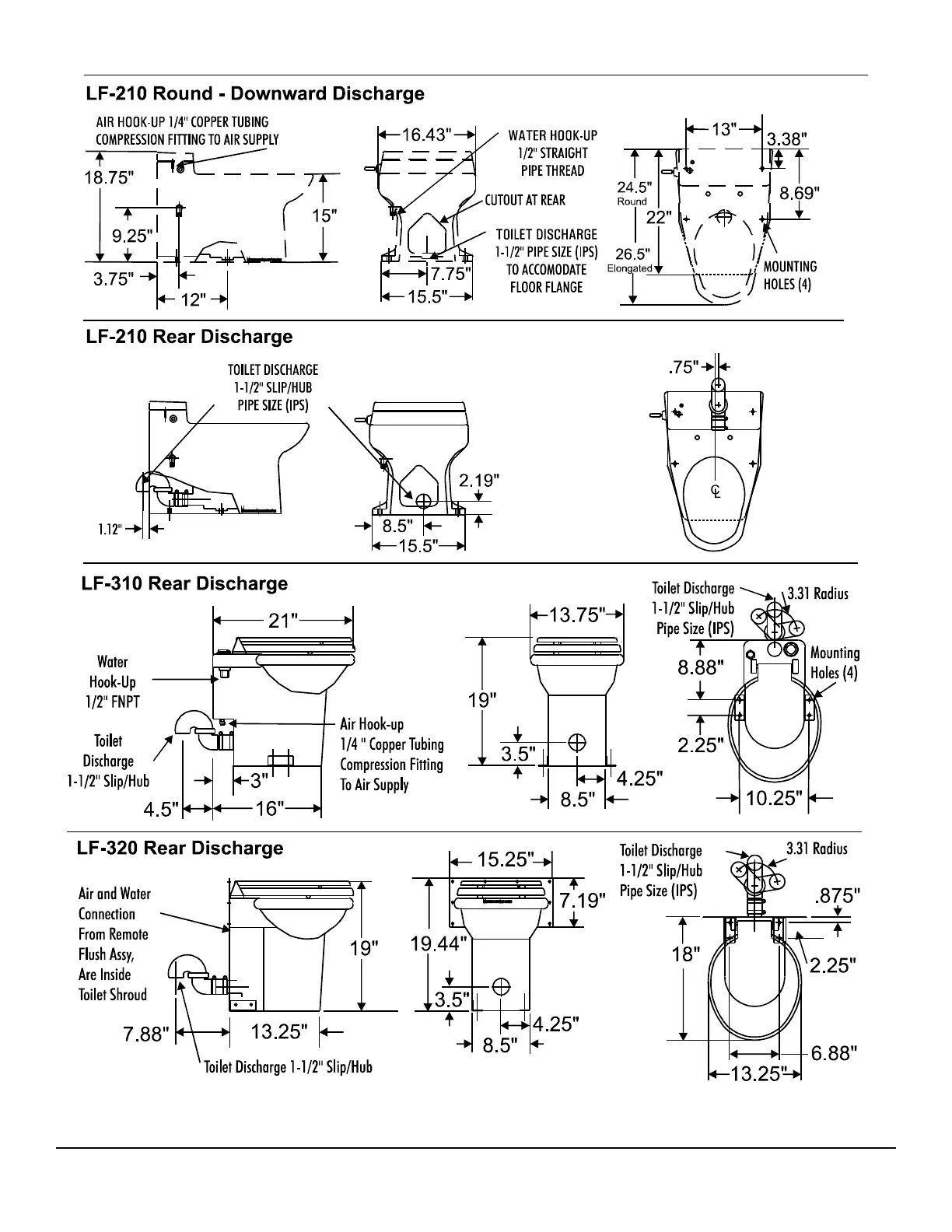

ROUGH-IN DIMENSIONS: LF-210, LF-310 and LF-320 Models.
NOTE: All dimensions may vary ½"±
Reference Remote Flush Rough-In, next page
.
ROUGH-IN DIMENSIONS: LF-219 Models
NOTE: All dimensions may vary
