T00823GB
21

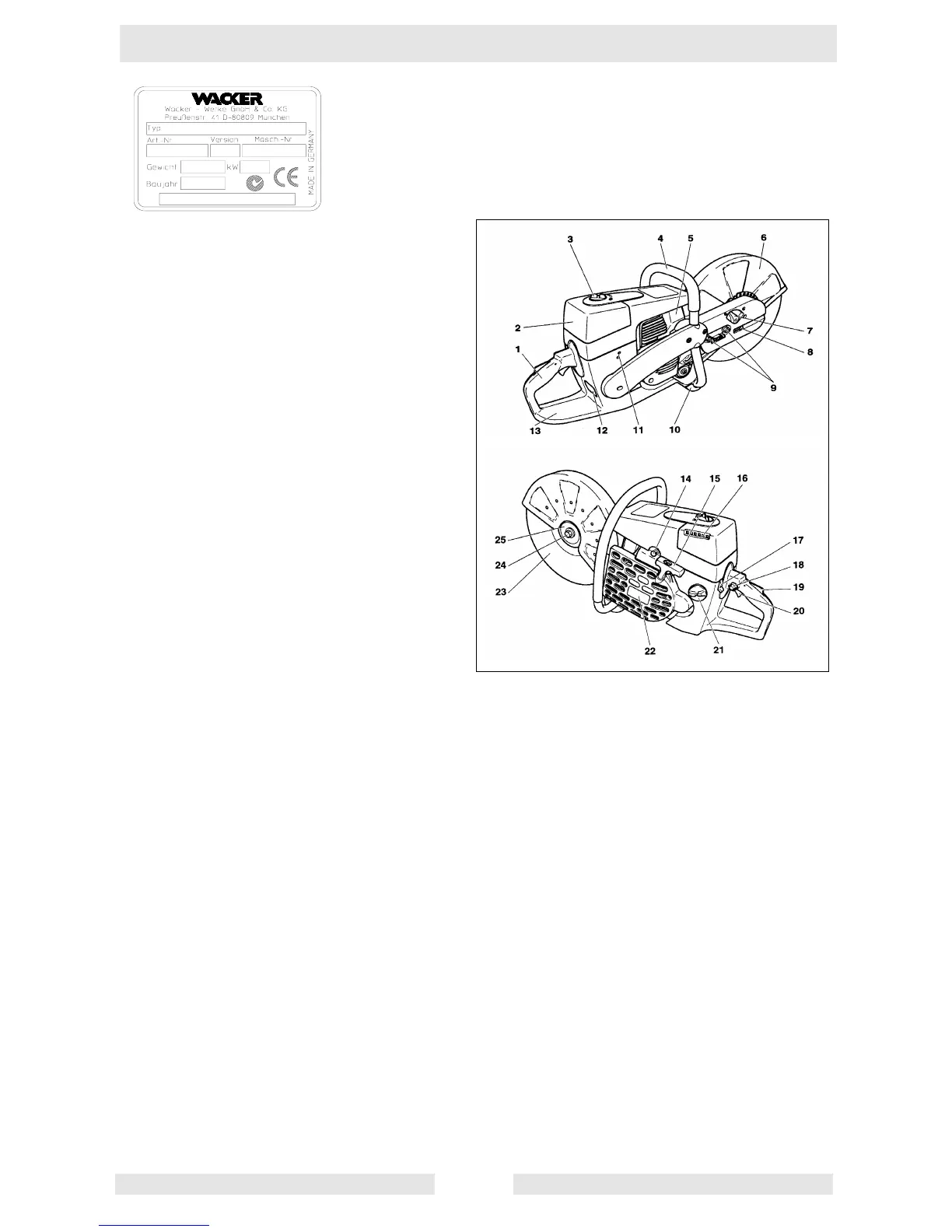

DENOMINATION OF COMPONENTS
Identification plate (12)
Indicate when ordering spare parts
1 Handle
2 Filter cover for air filter and spark plug cap
3 Cover lock
4 Tubular handle
5 Muffler
6 Protection hood
7 Hood lock
8 V-belt tension adjusting screw
9 Retaining nuts
10 Base
11 Carburetor adjustment opening
12 Identification plate
13 Fuel tank with handle
14 Starting valve
15 Starter grip
16 Air intake
17 Combination Start/Stop (I/O) switch, choke
18 Stop knob for halfway throttle
19 Safety locking button
20 Throttle lever
21 Fuel tank plug
22 Fan housing with starting assembly
23 Cutting disc
24 Disc bolt
25 Spring washer
