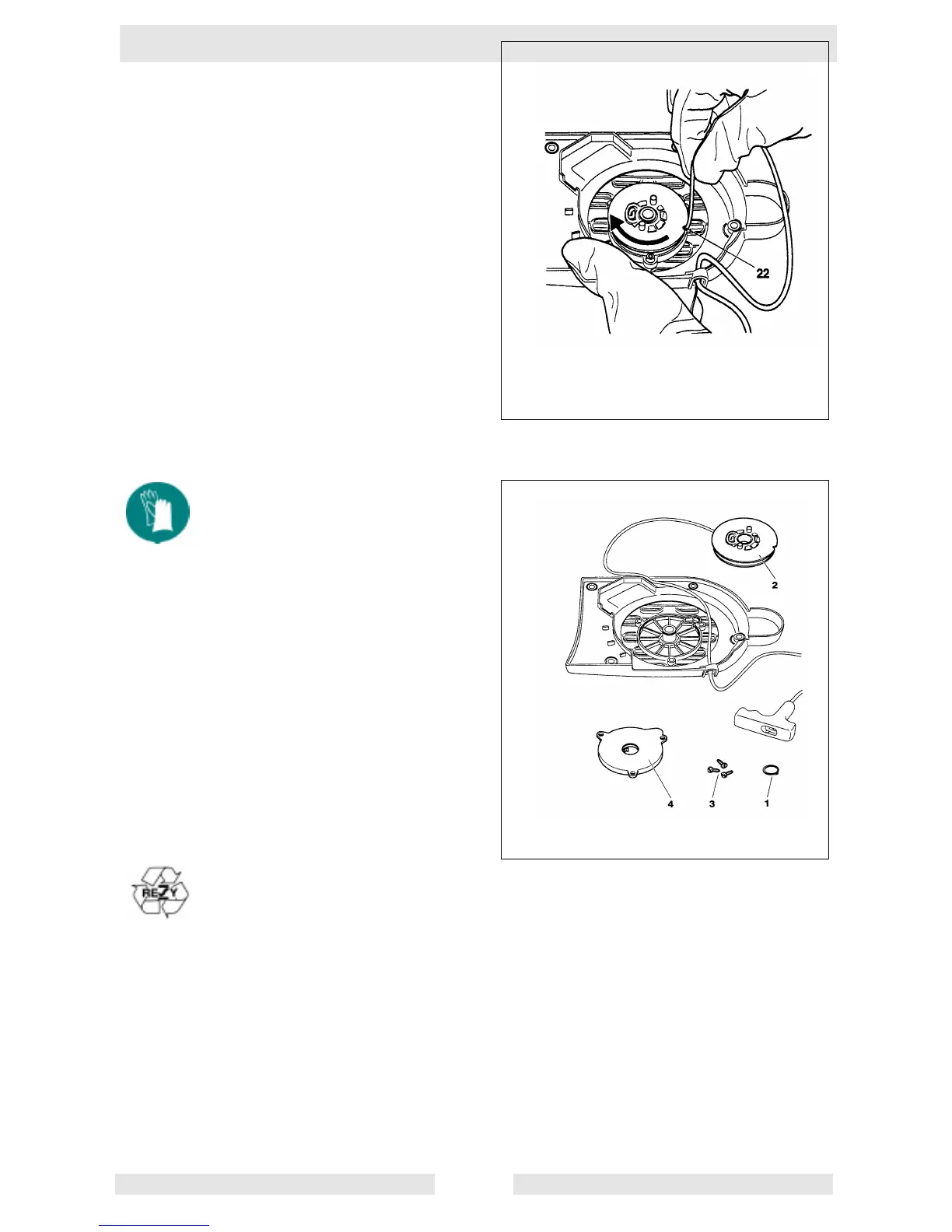

Guide the cable into the recess (22) on the cable drum
and use the cable to turn the drum two turns in the
direction shown by the arrow.
Holding the cable drum in your left hand, straighten out
the twist in the cable with your right hand, pull the
cable tight, and hold.
Release the cable drum. The drum‘s spring force will
now wind the cable around the drum.
Repeat this procedure twice. The starter handle must
stand out from the fan housing.
NOTE: With the cable pulled all the way out, it must
still be possible to turn the pulley another 1/4 turn
against the return spring.
CAUTION! Injury hazard! When you pull out the
starter cable hold the starter handle firmly. It will
whip back if the cable pulley is released by
accident.
When replaceing fan housing, it may be necessary to
pull the starter cable lightly so that the cable pulley
catches.
Replacing the return spring
Remove the fan housing (see above under
“Replacing the starter cable“).
Takeoffcirclip(1)(circlippliers,see“Accessories“).
Remove the cable pulley (2).
Unscrew screw (3) and carefully remove spring
housing (4).
Remove screws (3) and carefully remove the return
spring with housing (4).
CAUTION: Danger of injury! If the spring is broken
it may pop out!
NOTE: The old spring should be recycled.
Replacement return springs are delivered
already tensioned in the housing. Before
installing, lightly grease the new spring with multi-
purpose grease.
Turn the cable pulley slightly when putting it back on,
until you hear it catch. Put the circlip back on.
Wind on the starter cable as described above under
“Replacing the starter cable“.
When replaceing fan housing, it may be necessary to
pull the starter cable lightly so that the cable pulley
catches.
