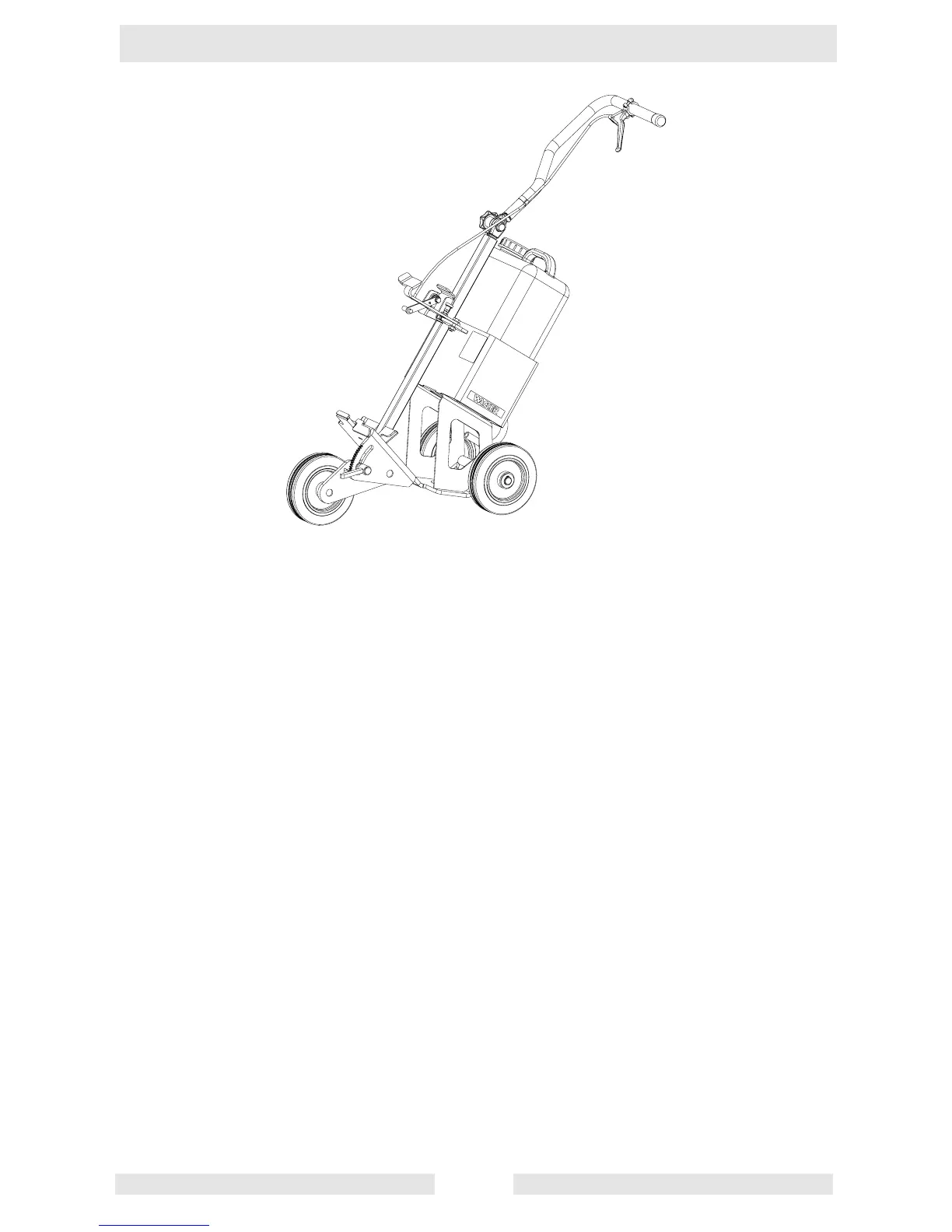

Guide trolley:
The WACKER guide trolley makes it much easier to do straight cuts, while simultaneously enabling almost
untiring working. It can be adjusted for the operator‘s height, and can be operated with the cutting attachment
mounted in the middle or on the side.
For easier refuelling when using the trolley, we recommend adding an angled tank filler neck.
The guide trolley has been equipped with a water tank and a water spraying system; the water will bind the
dust during the cutting process and will also help to cool the cutting disc.
The guide trolley has been equipped with a water tank and a water spraying system; the water will bind the
dust during the cutting process and will also help to cool the cutting disc. Notches have been added to the area
of the clamp lever, thus making it easier to adjust the cutting depth of the blade. One notch is equivalent to 10
mm cutting depth.
Safety precautions
- The mounting brackets for the Power Saw must be cleaned before placing the BTS into the guide trolley.
- The stop bolt must be correctly engaged to avoid a possible detaching of the Power Saw during
applications.
- Be careful to verify that both the clamp lever for the cutting depth setting and the star-shaped knob for the
handle height setting are tightly screwed down during cutting applications.
- The guide trolley should be cleaned with water after each use to avoid possible malfunctions.
- Park the equipment on an even, horizontal surface during work breaks, storage or transport. Also make
sure that the equipment has been secured against tipping over or rolling away.
- Push the throttle lever to the idle position (forwards) immediately after ending the cutting process.
