6 Components and operator's controls
17 100_0202_cp_0007.fm

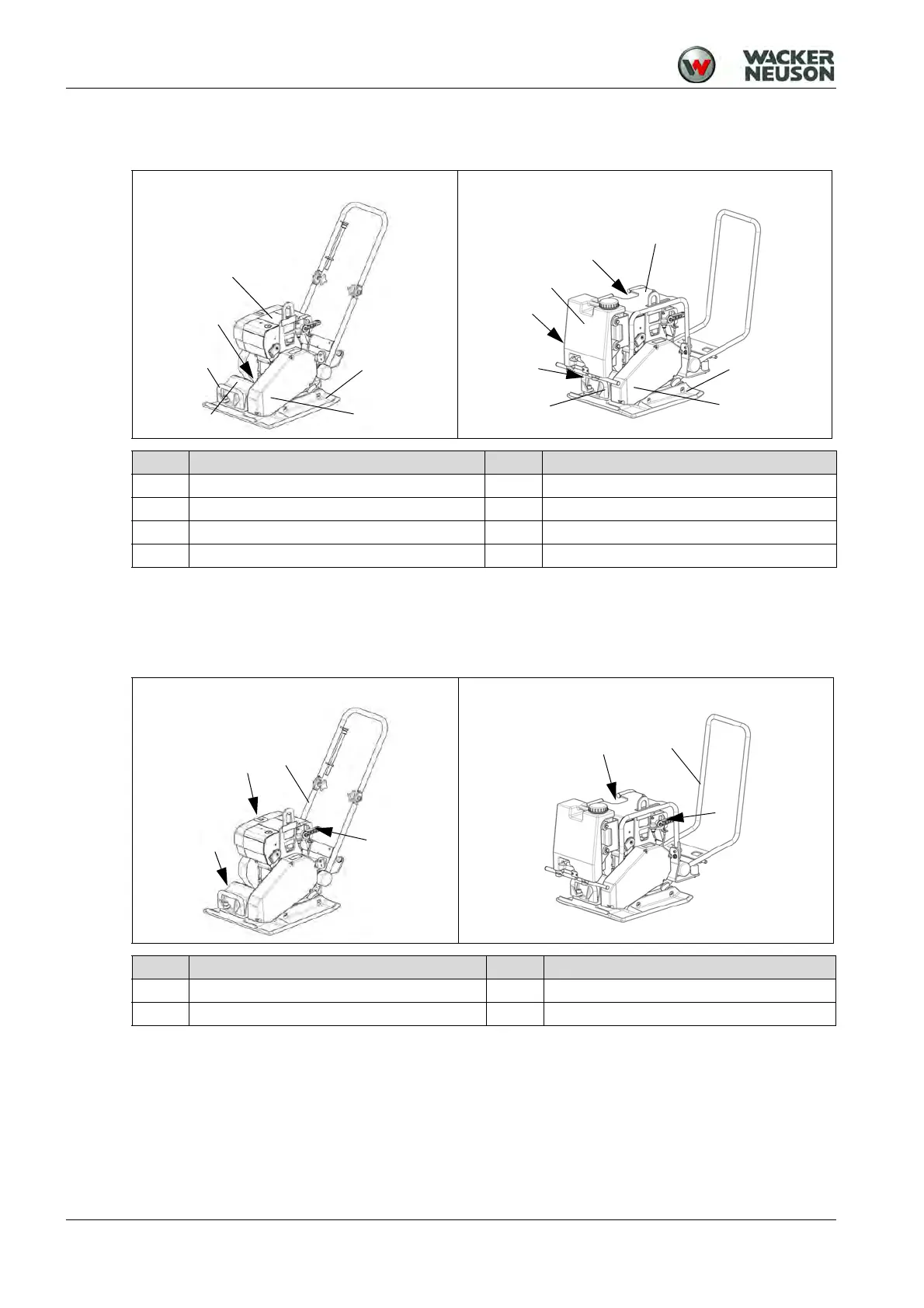

6 Components and operator's controls
6.1 Components
6.2 Operator's controls
Always keep displays and operator's controls of the machine clean, dry and free of oil and grease.
Operator's controls, such as the ON/OFF switch, throttle control handles, etc. may not be locked,
manipulated or changed without permission.
Control handle
The height of the control handle can be adjusted to the body size of the operator and case of application.
Exciter adjusting knob
The centrifugal force can be adjusted with the exciter adjusting knob - only activate at a standstill!
DPS1850Hb/Hv DPS1850Ha
Item Designation Item Designation
1 Engine 5 Belt guard
2 Base plate 6 Water tank (optional)
3 Exciter 7 Handle
4 Protective frame (optional) 8 Nameplate
DPS1850Hb/Hv DPS1850Ha
Item Designation Item Designation
1 Control handle 3 Handle recoil starter
2 Throttle lever 4 Exciter adjusting knob
1
2
3
5
7
8
1
2
3
4
5
6
7
8
1
2
3
4
1
2
3
