7 Transport
19 100_0202_tr_0010.fm

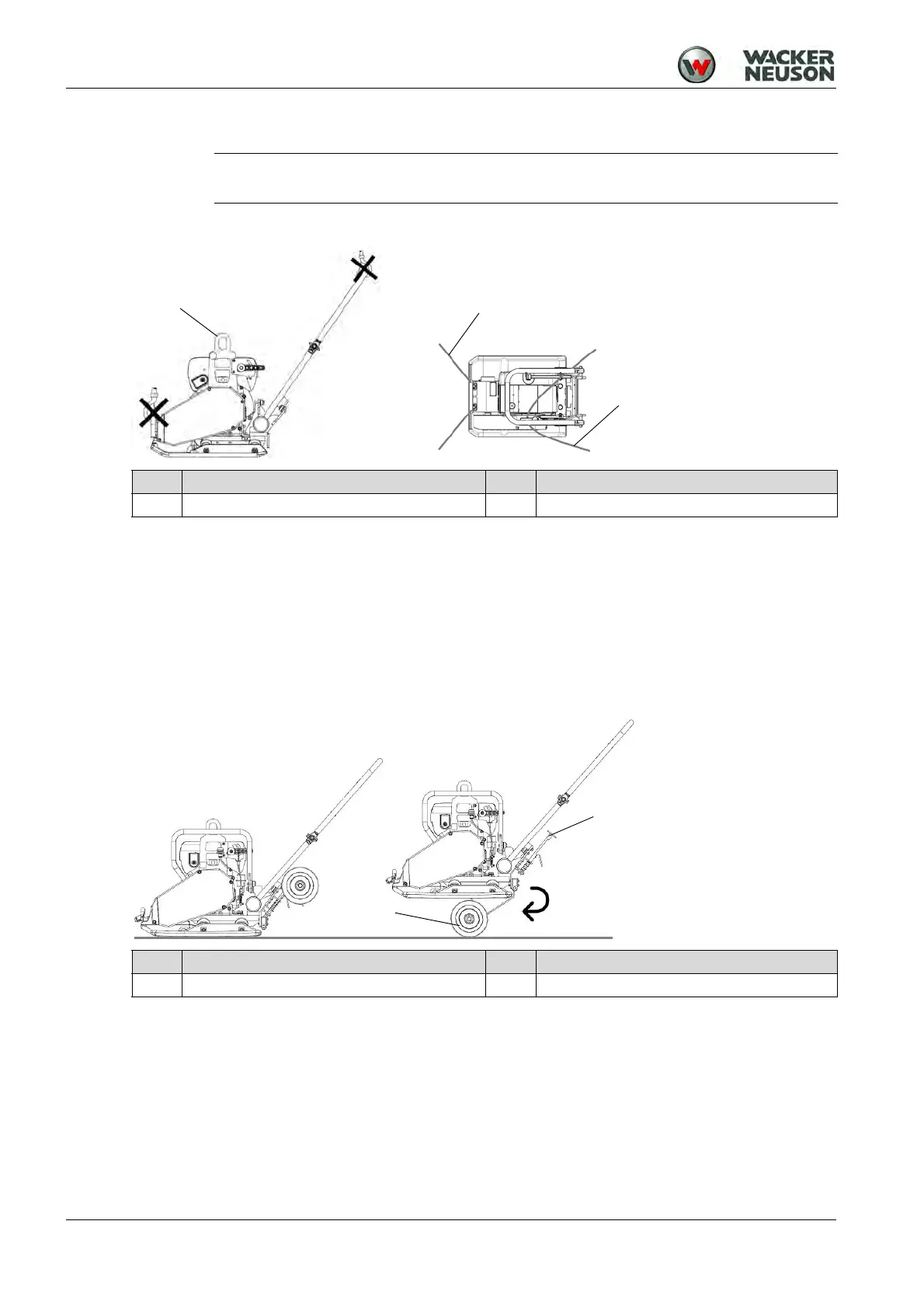

Lifting and lash down the machine
1. To lift the machine, mount suitable tackle to the central lifting point.
2. Carefully load the machine into or onto a stable means of transport capable of bearing the load.
3. After loading, lash down the machine on the means of transport so that it is secured against rolling,
sliding and tipping over. In the process, attach the tie-downs to the provided tie-down lugs.
The front handle can be used as a tie down. It is to be ensured in the process that the machine
does not tilt laterally (guide belt through the folded-down control handle).
Transport machine - Transport device (optional)
1. Release the lock with your foot.
2. Tilt the machine forward - the
transport device vibrates under the machine.
3. Place the machine back to the rear on the
transport device.
NOTE
Appoint a specialist flagman for a safe lifting operation.
Item Designation Item Designation
1 Central lifting point 2 Belt
Item Designation Item Designation
1 Lock 2 Transport device
