9 Maintenance
100_0202_mt_0012.fm 26
Clean the machine
1. After cleaning, check the cable, hoses, utility lines and hardware for leaks, loose connections, chafe
marks and other damage.
2. Immediately eliminate detected damage.

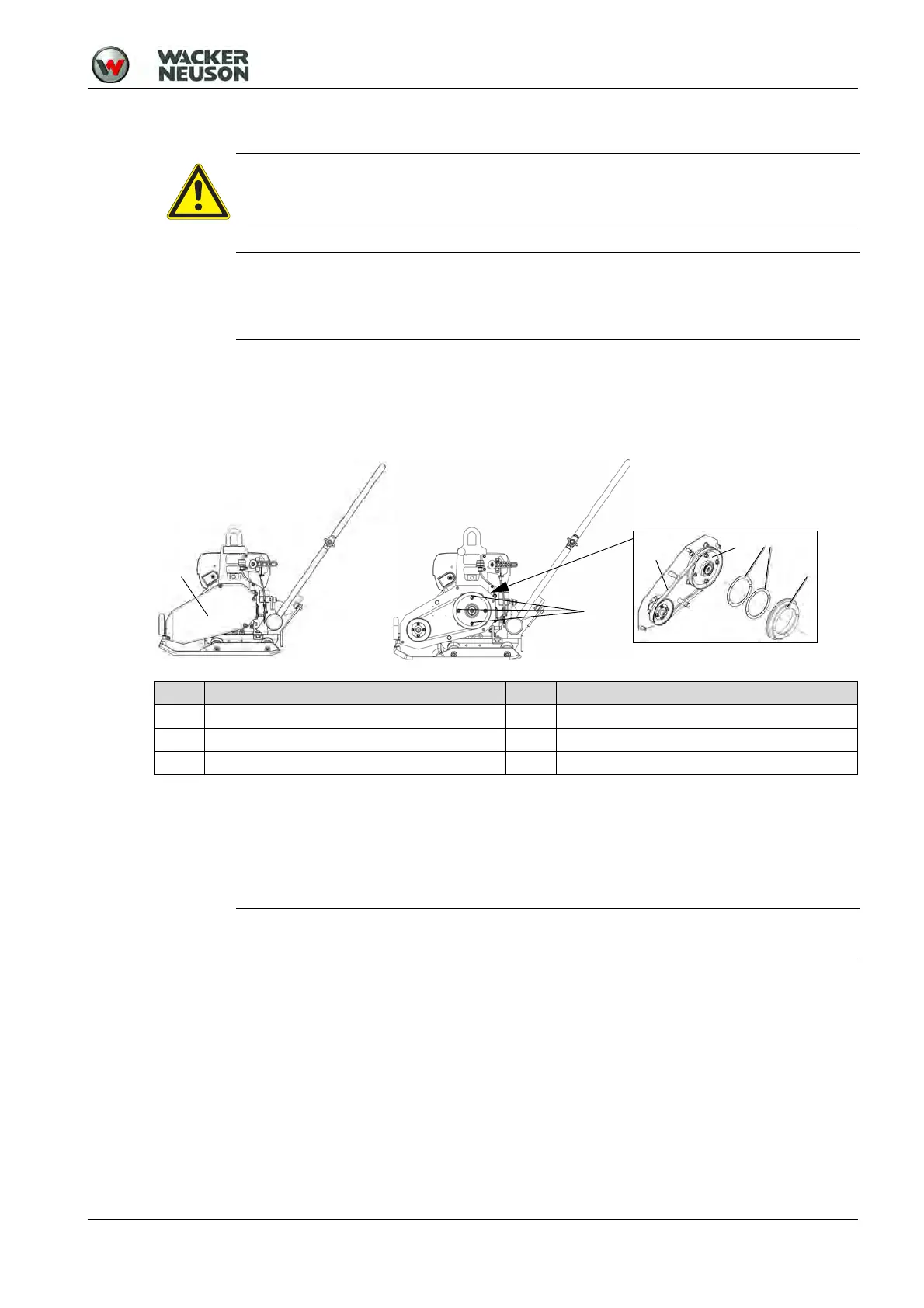

Retention/replace the exciter V-belt
1. Disassemble the belt guard.
2. Loosen the screws on the engine V-belt pulley and remove the outer v-belt pulley half.
3. Remove the required number of shims (removing one shim usually suffices).
4. Attach the removed shims to the outside of the v-belt pulley half.
5. Affix the v-belt pulley half and tighten the screws all around with 10 Nm.
WARNING
Risk of fire and explosion when using flammable cleaning agents.
Do not clean the machine and elements with gasoline or other solvents.
NOTE
Penetrating water can damage the engine, electrical operator's controls or components of
the machine. Do not aim high-pressure washer directly at air intake area and electrical
elements.
Item Designation Item Designation
1 Belt guard 4 V-belt pulley half
2 Screws 5 Shims
3 Engine V-belt pulley 6 V-belt
NOTE
Turn the v-belt pulley half here in order to avoid a pinching of the v-belt.
