7.5 Exciter V-belt
It is not necessary to retighten the V-belt owing to the use of the
automatic centrifugal clutch.
Should the V-belt width fall below 15,5 mm the V-belt must be
replaced.

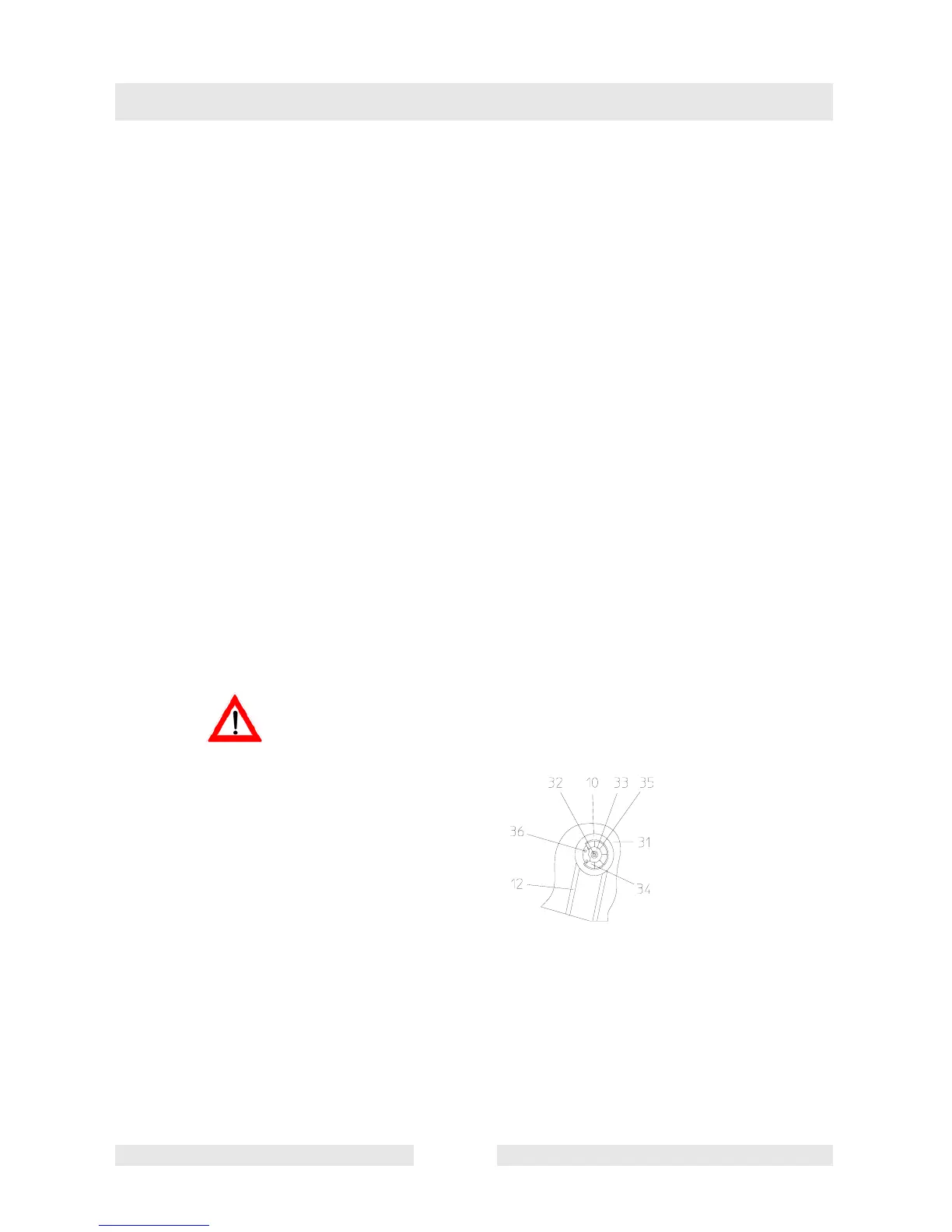

7.5.1 Changing the exciter V-belt:
1. Remove belt guard (31).
2. Undo screw (32).
3. Remove button (33), belleville spring (34), seal (35) and front
segment of the V-belt pulley (10).
4. Change exciter V-belt (12).
5. Assemble the components in reverse order; make sure that the
coloured marking on the pin (36) coincides with the marking on the
V-belt pulley (10).
Do not oil or grease clutch components (will damage the graphite
bushes).
