6 Components and operator controls
6.1 Components
Centre pole
The optimum working height of the centre pole can be changed by adjusting the
threaded spindle.
Central suspension
The central lifting point is used to lift the machine. It is located exactly at the cen-
tre of gravity of the machine, but can be set back for applications where the
height is crucial.

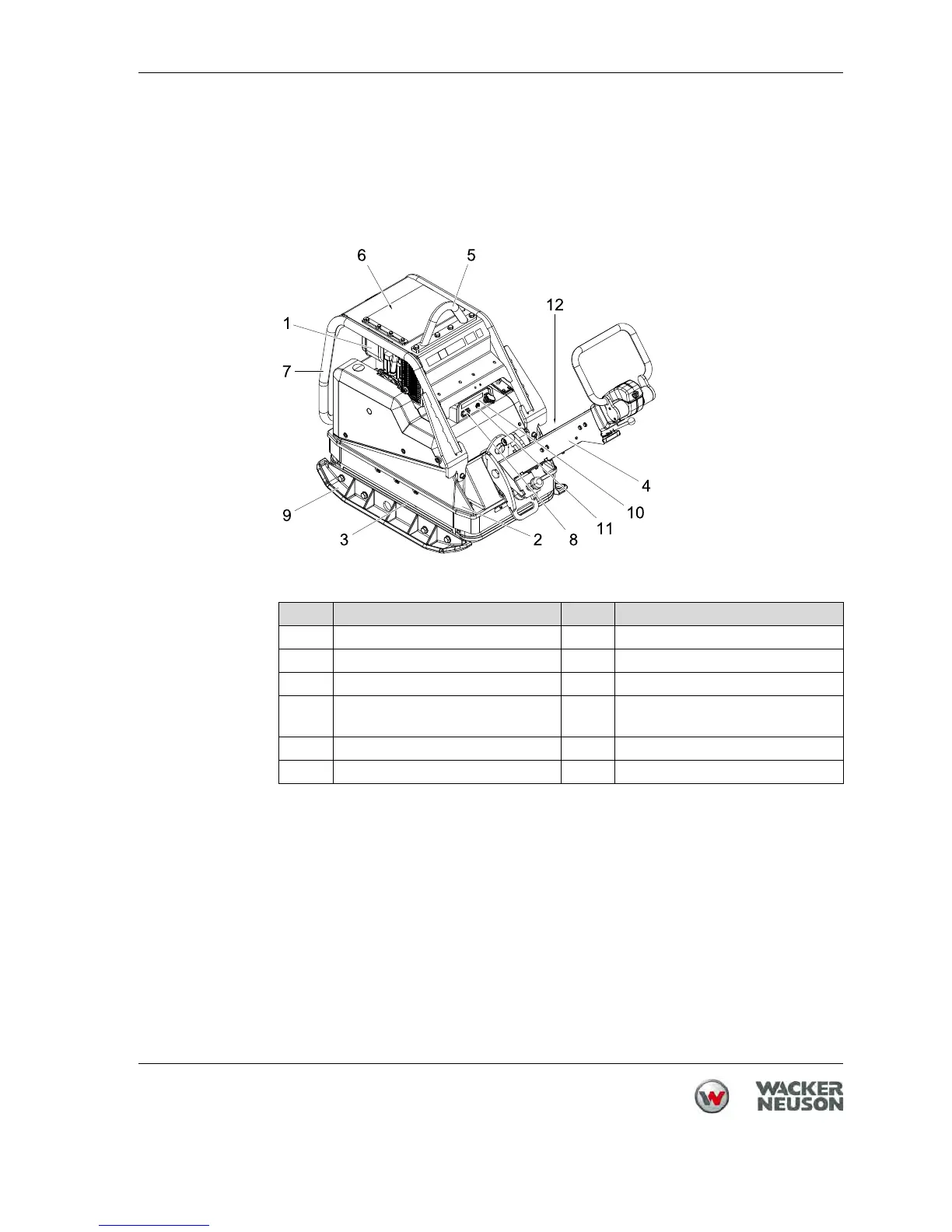

Pos. Designation Pos. Designation
1 Engine 7 Protective frame
2 Upper mass 8 Operating hour meter (optional)
3 Base plate 9 Extension plates (optional)
4 Centre pole 10 Compatec compaction display
(optional)
5 Central suspension 11 Control lamp operation
6 Fuel tank 12 Nameplate
