6.2 Operating elements
Always keep displays and operating elements of the machine clean, dry and free
of oil and grease.
Operator's controls such as the ON/OFF switch, throttle grips etc. may not be
locked, manipulated or changed without authorisation.
Control handle
The control handle is used for continuous regulation of the speed and direction
of travel.
Throttle control lever
The speed of the drive motor can be varied continuously, operated remotely by
the throttle control lever and locked in the idle setting.
Decompression lever
The decompression lever may only be operated to start the engine.
Jump-start
The jump-start facilitates connecting the jumper cable when jump-starting.

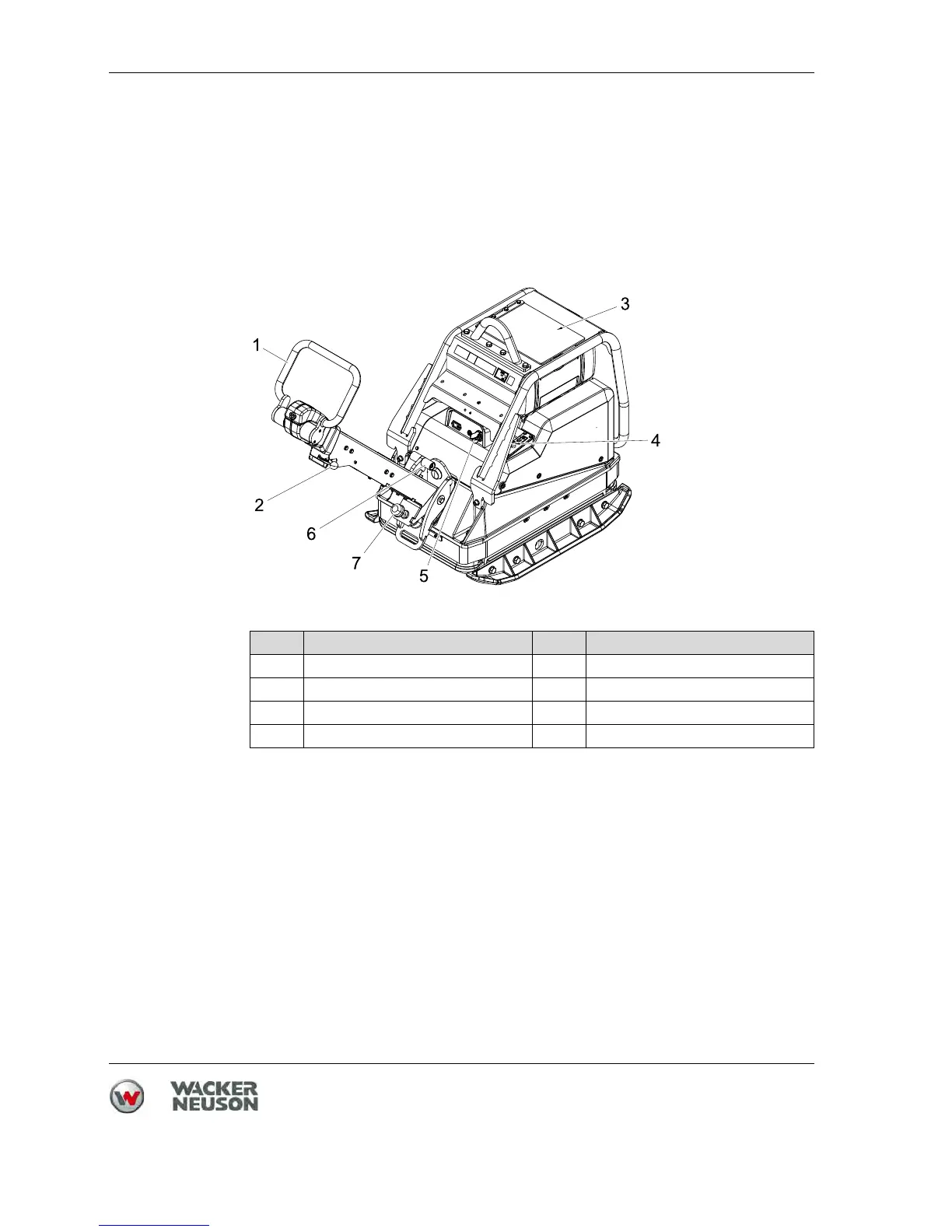

Pos. Designation Pos. Designation
1 Control handle 5 Ignition lock
2 Throttle control lever 6 Grip for centre pole lock
3 Decompression lever 7 Threaded spindle
4 Jump-start
