8 Use and operation
42
100_0202_op_0009.fm

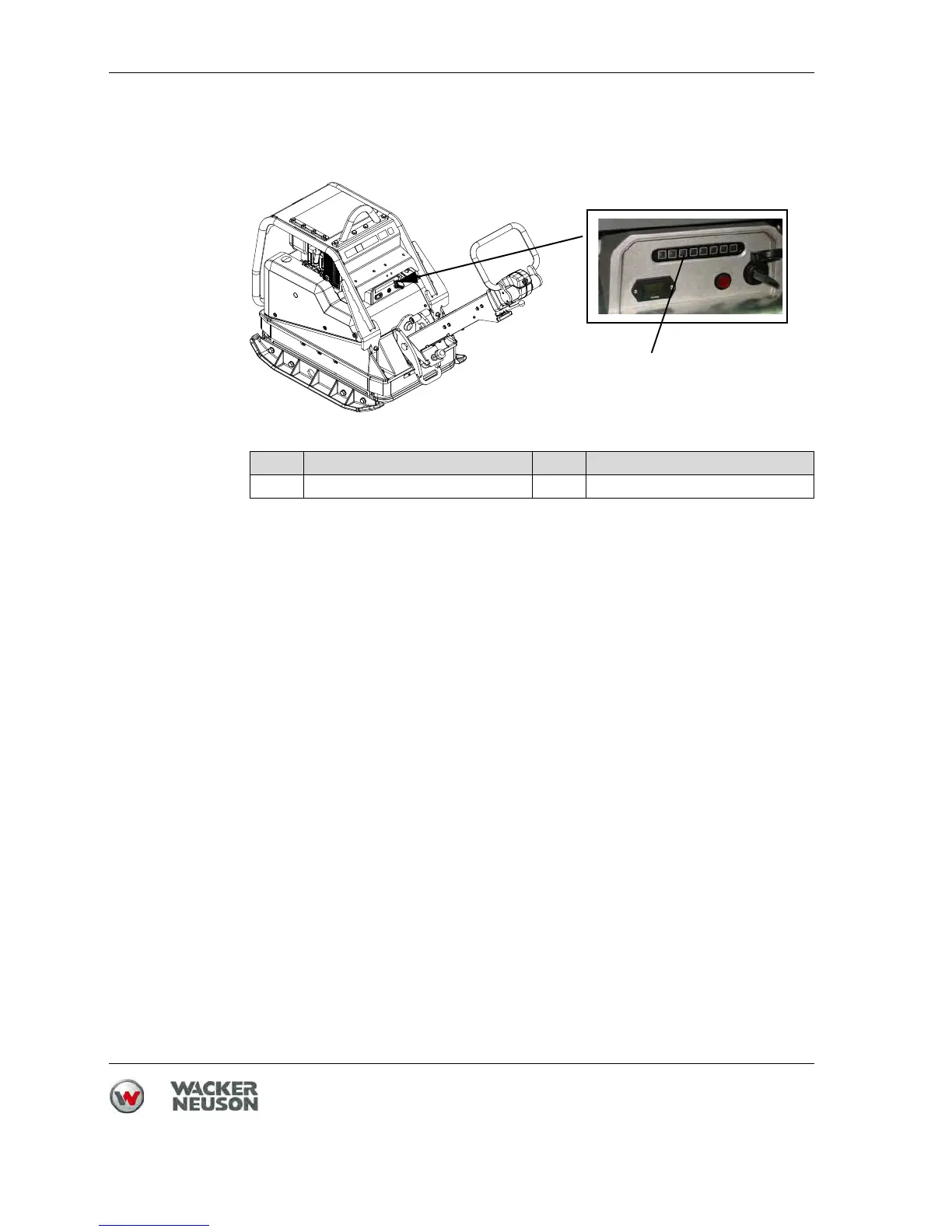

Machine with Compatec - compaction display (optional)
1. During the first few seconds after starting the engine a light bar indicator ap-
pears on the display unit.
2. The LEDs light up from left to right.
Note: If all LEDs light up, the system is fault-free and the LEDs will switch off in
succession.
3. All the LEDs will light up again briefly with reduced brightness.
4. Thus, the sensor has been successfully tested and the display unit is ready
for operation.
Note: If all LEDs light up permanently after initialisation, the sensor has not
been successfully tested, see chapter Troubleshooting.
Pos. Designation Pos. Designation
1 Display unit 2 LEDs / light bar indicator
