Operation
Loading and transporting the machine
Safety instructions
• The transport vehicle must be of sufficient size. See Chapter 6 “Technical data” for
the dimensions and the weight of the machine!
• Remove any mud, snow or ice from the tracks so that the machine can be safely driven
onto the ramps
• Secure the machine against unintentional movement!
– see Parking the machine on page 3-19
The machine must be loaded and transported properly –
Accident hazard!
☞It is essential that you read the safety instructions at the beginning of this
chapter and follow any other safety instructions relevant in your country!
Load as follows:
☞Secure the transportation vehicle with chocks to prevent it from rolling
☞Place the access ramps at the smallest possible angle. Ensure that the grade does not
exceed 15° (26%). Use access ramps with an anti-skid surface only.
☞Ensure that the loading area is clear and access to it is not obstructed – for example by
superstructures
☞Ensure that the ramps and the tracks of the dumper are free of oil, grease and ice
☞Start the engine of the dumper
☞Lower tipping trailer
☞Raise the loader unit enough so that it will not touch the access ramps
☞Carefully drive the dumper onto the middle of the transport vehicle
☞Lower the loader unit to the loading area
☞Stop the engine
☞Remove the starting key
The manufacturer’s warranty shall not apply to accidents or damage caused by
loading or transporting.
<17°

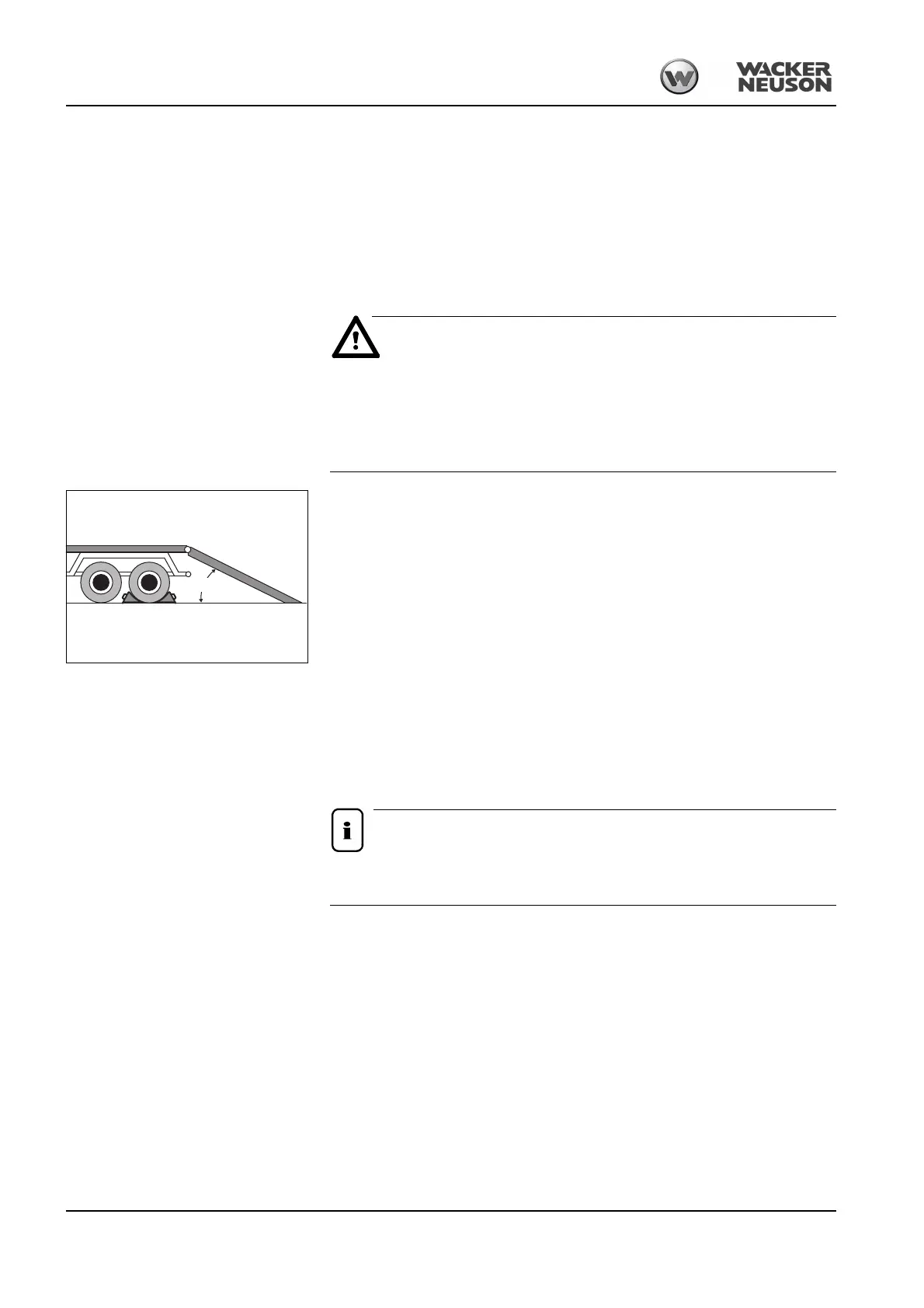

Fig. 47: Access ramps
< 15°
