15.11 Quick-Disconnect Fuel Fittings
Quick-disconnect fuel fittings allow an external fuel supply to be connected to the
engine.
Requirements
■ Engine stopped and cool to the touch
■ Fuel supply and return hoses with compatible quick-disconnect fittings
Note: Required fitting size is ISO 7241-1-Series B (3/8 in.)
Procedure
Perform the following procedure to connect the external fuel supply.
1. Feed the external supply hose (b) and the external return hose (c) through the
access port (a) on the curb side of the machine.
2. Disconnect the internal feed hose (d) at the tank fitting, and connect the internal
feed hose to the external supply hose.
3. Disconnect the internal return hose (e) from the tank fitting, and connect it to the
external return hose (c).
Result
The external fuel supply is now connected.

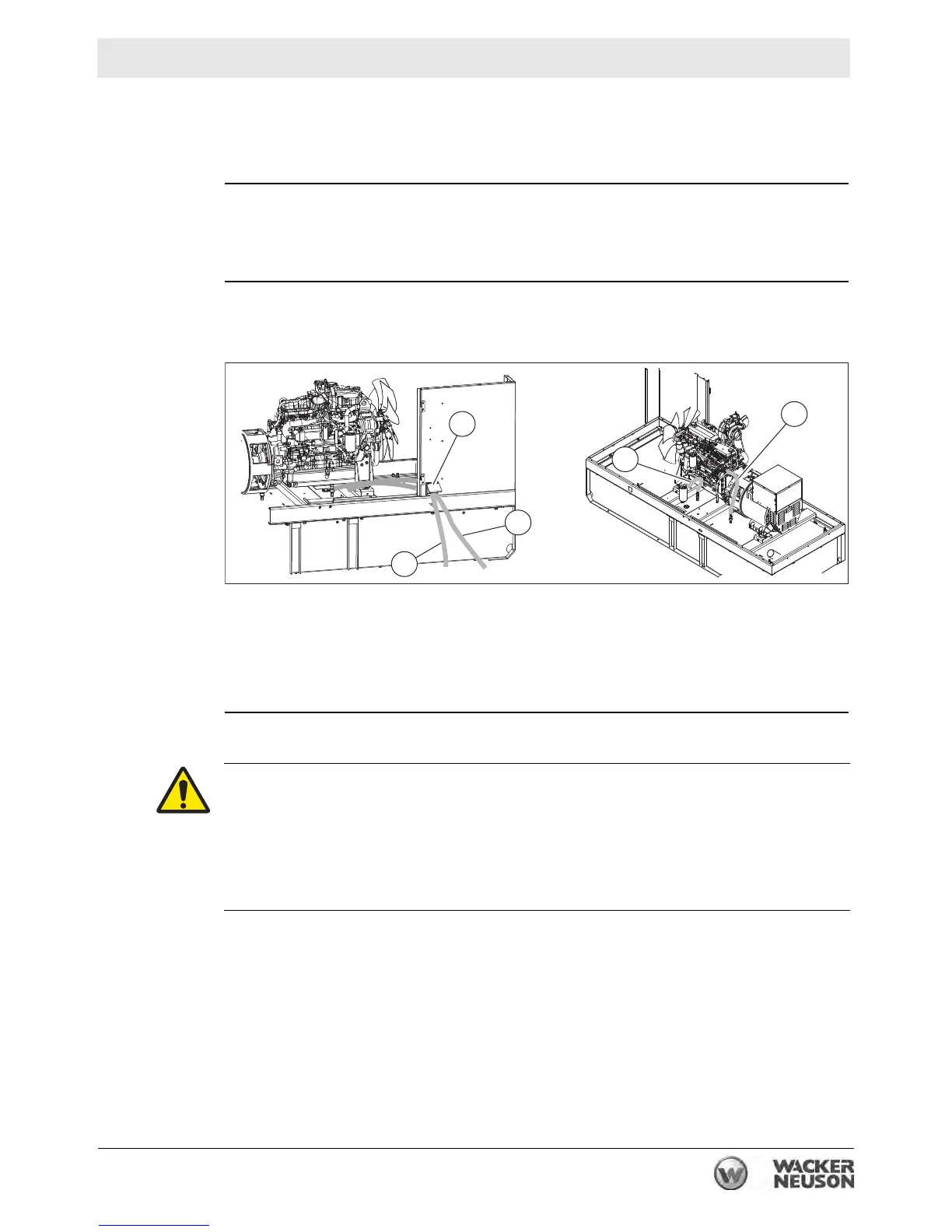

wc_gr009257wc_gr009257
a
b
c
d
e
WARNING
Fire hazard. Improper connections or damaged hoses may leak flammable fuel.
► Ensure that all quick-disconnect fittings are properly seated before operating
the machine.
► Make sure that fuel hoses are not kinked. Ensure that the hoses will not touch
or rest upon hot surfaces while the machine is operating.
