Mobile Generator
Operation (Basler Controller)
7.5 Using the Lugs and the Convenience Receptacles

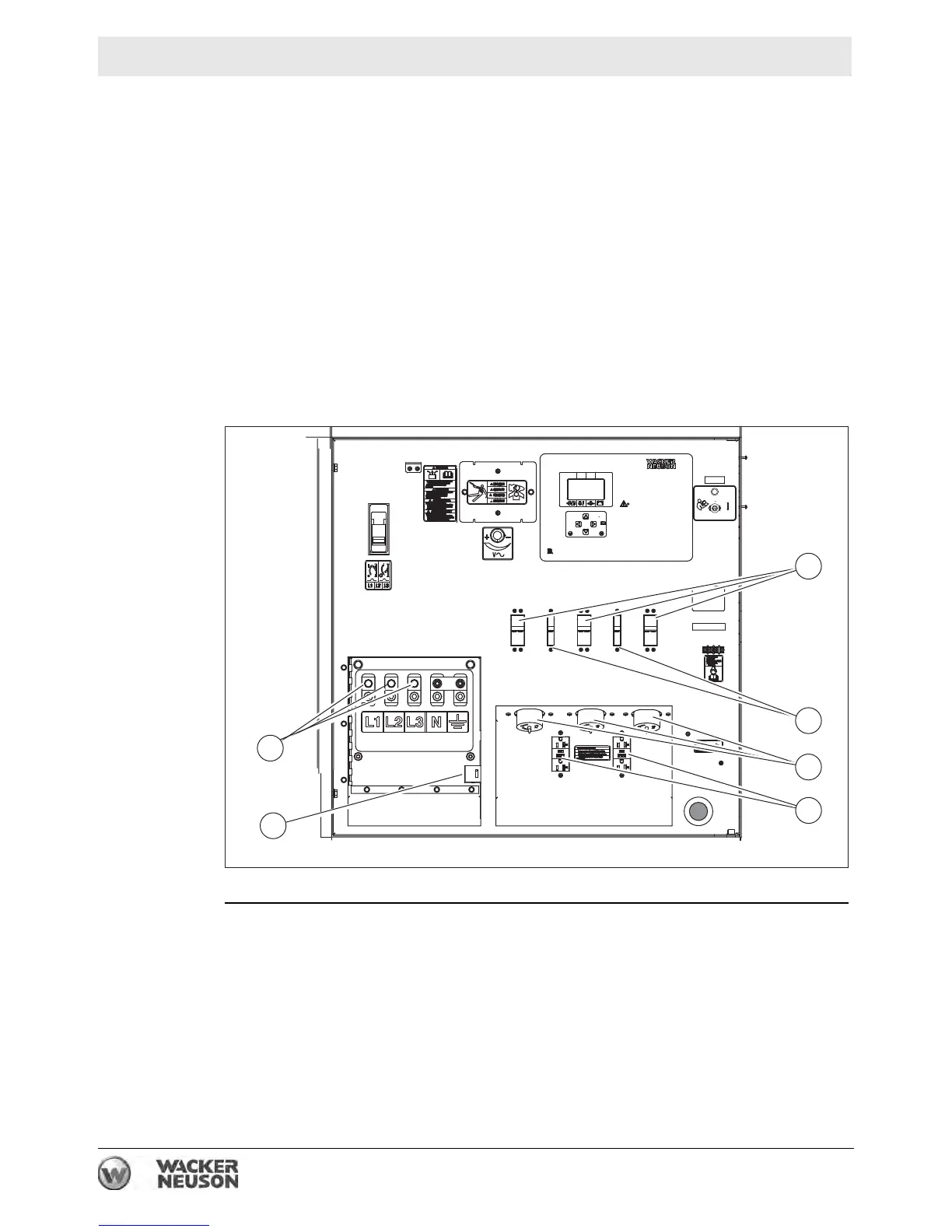

Overview Loads can be connected to the genset in two different ways:
1. At the connection lugs (r).
Located as shown, behind the lug door, the connection lugs serve as connection
points for cables.
2. At the convenience receptacles:
■ 120V/240V twist-lock receptacles (l)
■ 120V GFCI duplex receptacles (m)
Note: The convenience receptacles are not protected by the main circuit breaker.
They are protected by their own circuit breakers (j, k). Power to the convenience
receptacle circuit breakers is available any time the engine is running, even with
the main circuit breaker OFF (open).
Note: Graphic is representative only. Your machine may vary.
Lug door
interlock
switch
The lug door interlock switch (p) is located behind the lug door. The lug door
interlock switch is a safety device. When the lug door is opened, the lug door
interlock switch trips the main circuit breaker.
Note: The lug door interlock switch does NOT interrupt power to the convenience
receptacles. However, the switch does stop excitation at the generator. The result
is significantly reduced voltage at the convenience receptacles.
wc_gr010361
AUSAUS
APAGADOAPAGADO
ARRETARRET
OFFOFF
REMOTE STARTREMOTE START
FERNSTARTFERNSTART
ARRANQUE REMOTOARRANQUE REMOTO
DEMARRAGE A DEMARRAGE A
DISTANCEDISTANCE
START / LAUFENSTART / LAUFEN
ARRANQUE / MARCHAARRANQUE / MARCHA
DEMARRER / MARCHEDEMARRER / MARCHE
START / RUNSTART / RUN
E
M
E
R
G
E
N
C
Y
S
T
O
P
A
Ø
HZ
V
R
Basler
DIAGNOSTICS
DIAGNOSEN
DIAGNOSTICOS
DIAGNOSTICS
042563
r
p
m
k
j
l
