GH 3500 Functional description
Operator's manual 15
4 Functional description

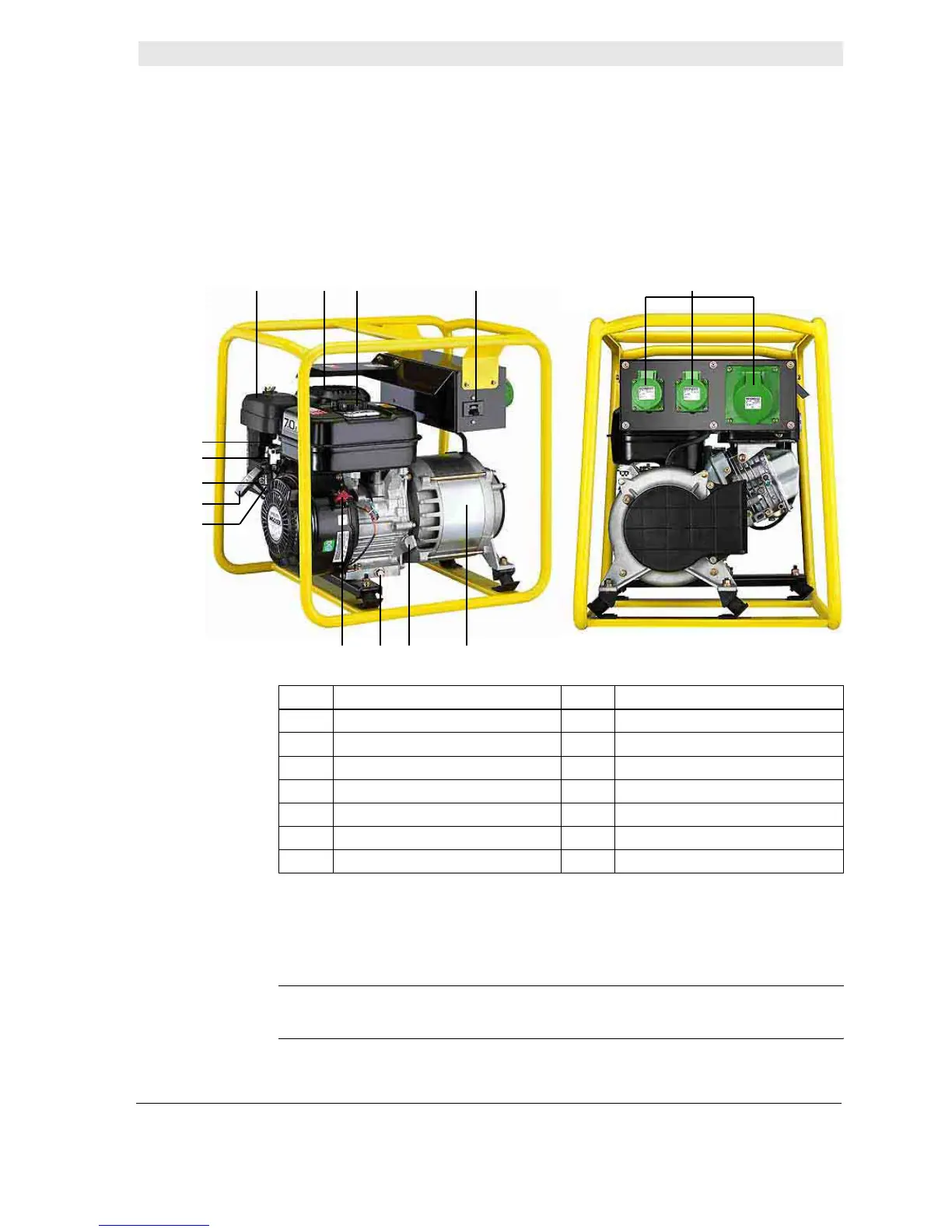

4.1 Components and control elements
4.2 Functionality
The generator generates 3-phase 42 V/200 Hz protective voltage for driving vi-
brators.
Note: Use either 32 A or 63 A plug receptacles.
A sudden power drop can be the result.
Item Designation Item Designation
1 Air filter 8 Oil drain plug
2 Exhaust 9 Engine switch
3 Fuel cap 10 Fuel filter
4 Main switch 11 Starter rope
5 Plug receptacles 12 Fuel tap
6 Generator 13 Choke
7 Oil level dipstick 14 Throttle lever
13 4
12
11
14
13
69
2 5
78
10
