GPS 8500/GPS 9700 Disassembly and Assembly
wc_tx000829gb.fm 39
Continued from the previous page.

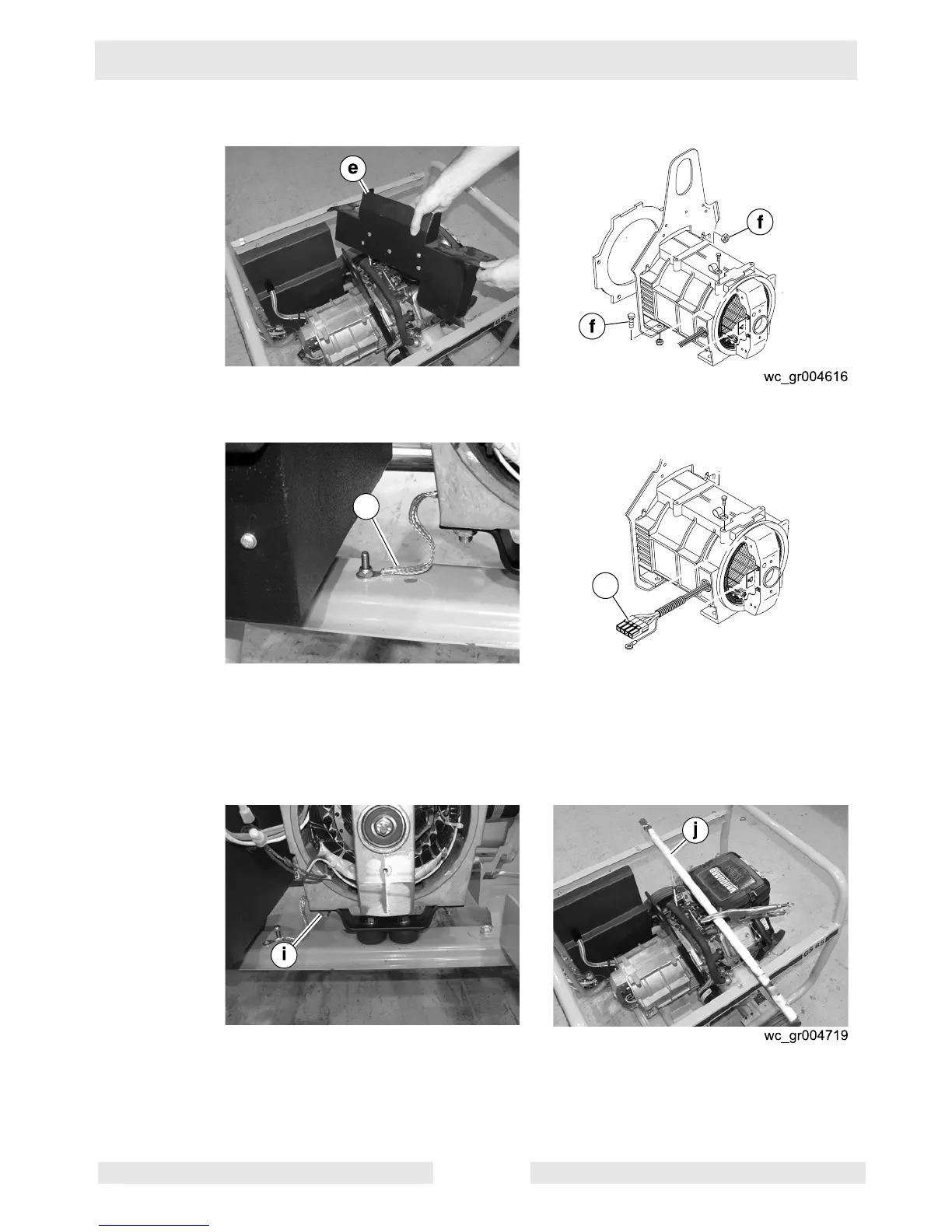

8. Remove the engine exhaust guard (e).
9. Remove the hardware (f) that secures the lifting eye.
10.Remove the ground wire (g) from the frame.
11.Disconnect the main stator winding connector (h) and slide the connector out of
the control box.
12.Slide the AVR wires out of the generator and into the control box.
13.Remove the screws and nuts (i) that secure the shock mount bracket to the sta-
tor.
14.Support (j) the engine to the frame.
This procedure continues on the next page.
wc_gr004718
