Removing attachments from a mechanical quickhitch
Lower the attachment only to firm, level ground and
secure it to prevent it from tipping over or rolling away.
1. Retract the telescopic boom completely.
2. Lower the attachment until it is barely above the
ground.

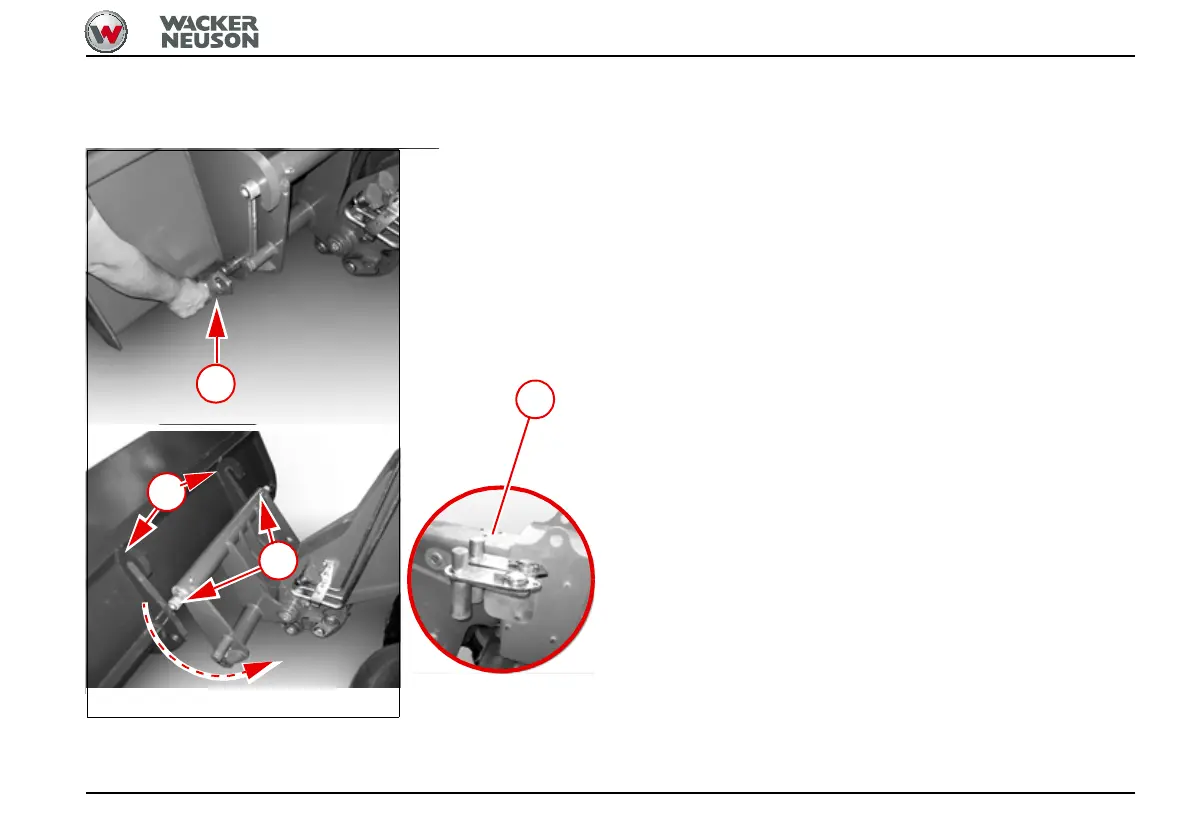

3. Release lock pins 3 and pull them out.
4. Lower the loader unit and tilt out the attachment.
➥ This removes the pins 1 from the catch hooks 2.
5. Reverse the machine away from the attachment as
soon as the catch hooks are free.
6. Store lock pins 3 in position 5 when they are not used.
