Operation 5
BA TH412 * 06/2017 * 4512_5-13_3_Opt_Heck_en.fm
5-97
Putting the rear 3-point mount to transport position
The rear 3-point mount can be folded to transport position

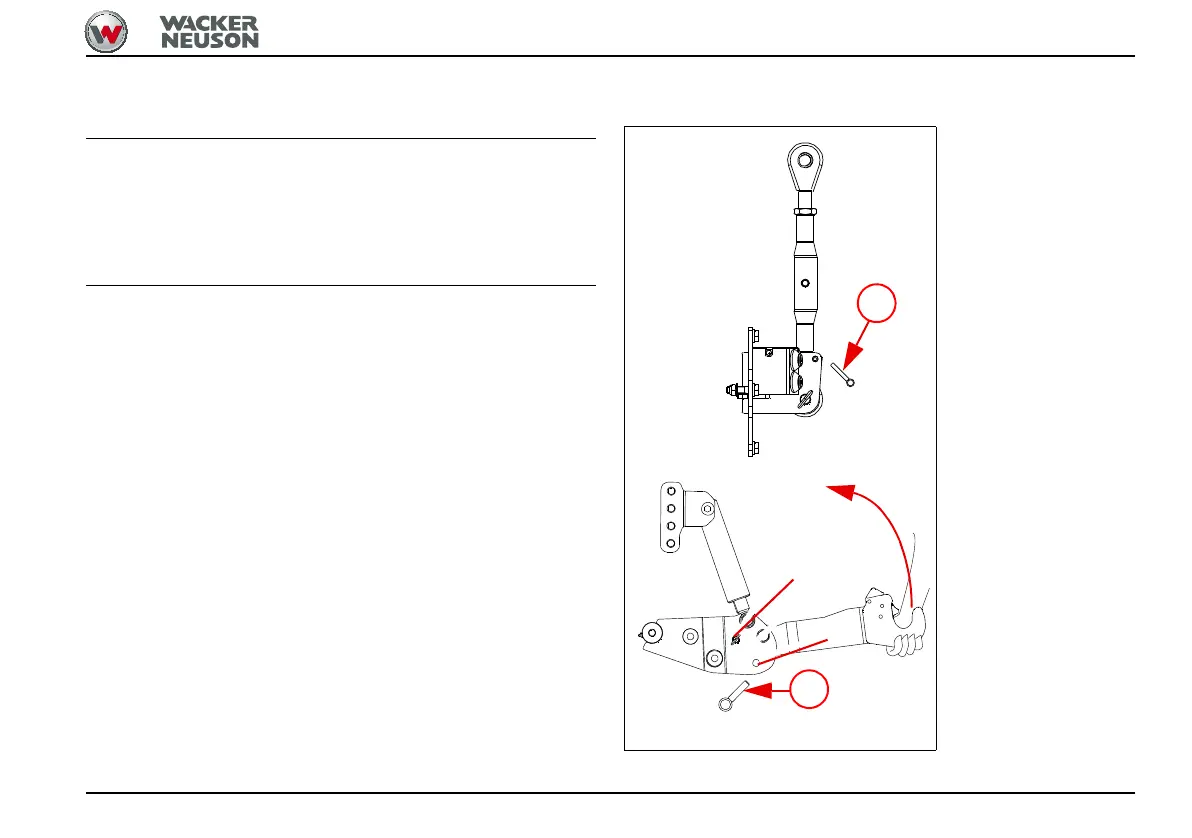

when it is not in use. Fig. 115 shows the holes in which
the pin has to be inserted for a specific position.
1. Lower the rear 3-point mount.
2. Raise the upper linkage of the rear 3-point mount,
fasten it with the pin (B) and secure the pin.
3. Remove both pin locks from the lower-linkage pins (U)
and pull out the pins (U).
4. Raise the lower linkage of the rear 3-point mount and
insert the lower-linkage pins (U).
- 1 Work position
- 2 Transport position
5. Put the pin locks back in again.
To move the three-point rear end mounting into the
working position follow the steps in reverse order.
