4 Putting into operation

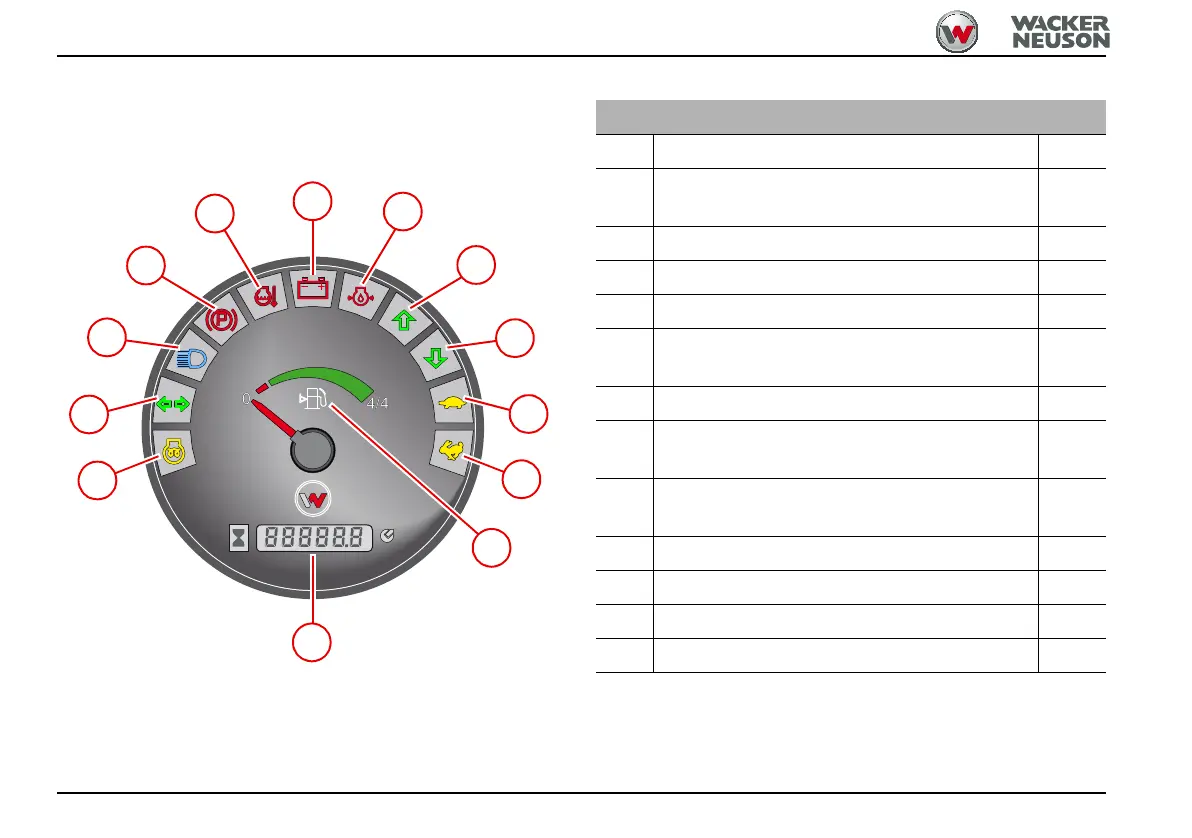

Indicating instrument
Fig. 33
31
30
29
28
26
25
24
23
22
21
20
19
27
Item Indicating instrument Page
19
Preheating indicator light (yellow)
4-26
20
Indicator light for “Direction indicators
(blinkers)" (green) (optional)
4-26
21
"High beam" indicator light (blue) (option)
4-27
22
Not assigned
4-27
23
Engine temperature warning light (red)
4-27
24
Alternator charge function warning light
(red)
4-27
25
Warning light “Engine oil pressure” (red)
4-28
26
Forward travel direction indicator light
(green)
4-28
27
Reverse travel direction indicator light
(green)
4-28
28
Crawler gear indicator light (yellow)
4-29
29
High speed indicator light (yellow)
4-29
30
Fuel gage
4-29
31
Hour meter
4-29
