WAGNER 505 User Manual

28
ITEM PART NO. DESCRIPTION QTY.

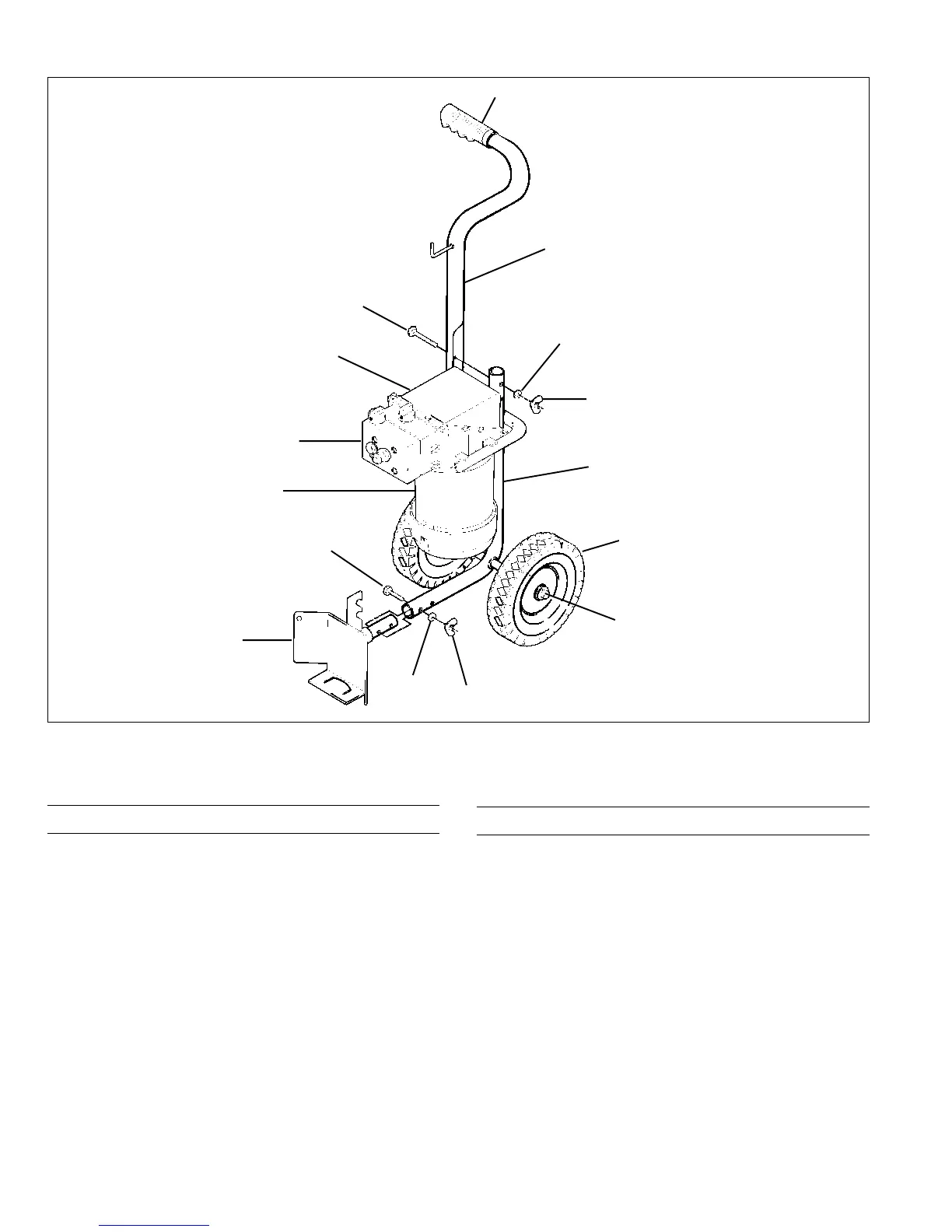

Parts Diagram – Final Assembly
1 0288478 Grip, Handle 1
2 0270357 Handle, Cart 1
3 9821503 Washer, Lock 4
4 9810111 Nut, Wing 2
5 0270356 Cart Assembly 1
6 0270359 Wheel 2
ITEM PART NO. DESCRIPTION QTY.
1
2
3
4
5
6
7
4
3
8
9
10
11
9
7 0275728 Cap, Hub 2
8 0270358 Bracket, Pail 1
9 9800117 Bolt, 1/4-20 x 1-1/2 3
10 ----------- Paint Pump Assembly 1
(See Parts Diagram, Page 29)
11 0288186 Housing, Hydraulic 1
Serial Number
Location
